No. 1338 Water Bottling Plant (New Zealand)

Water Bottling Plant and Equipment For Sale   (New Zealand)

Due to a planned upgrade, the following plant and equipment is now surplus to requirement,

and available for sale and relocation. The plant & equipment is currently still connected.

Offers for various machines and/or bulk sections of the plant will be seriously considered.

The owners will discuss/offer assistance regarding dismantle and loading where required.

On-site inspections to be arranged by appointment, during business hours.

Site engineers are available for comment regarding history, technical data and condition.

Location: North Island, New Zealand - the site is well suited for dismantle, extraction and loadout activities.

Contact

  • Industrial Brokers Ltd
  • Ed O’Donnell
  • 0274 442 944
  • +64 274 442 944
  • ed@ibl.co.nz

Terms and Conditions

  • The plant and equipment is offered for sale on a "second-hand" & “as is where is” basis.
  • No warranties or guarantees are offered.
  • Sale and Purchase Agreement applies.
  • Technical data including manuals and service history available only where possible.
  • Site health and safety rules apply: hi viz jacket, safety glasses, boots…
  • Covid19 level regulations will apply.
  • Inspection welcome, by appointment  - contact Ed O'Donnell

Brief Inventory Ref

Item Ref Description

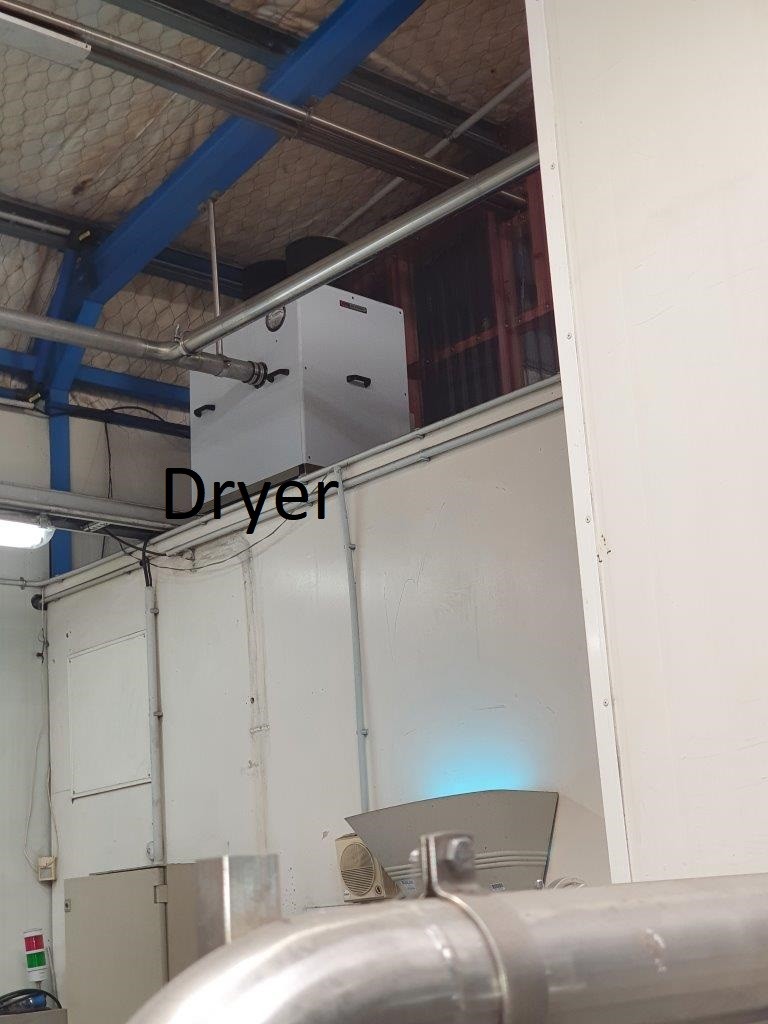

Air Knives 1001 Air knives & dryer

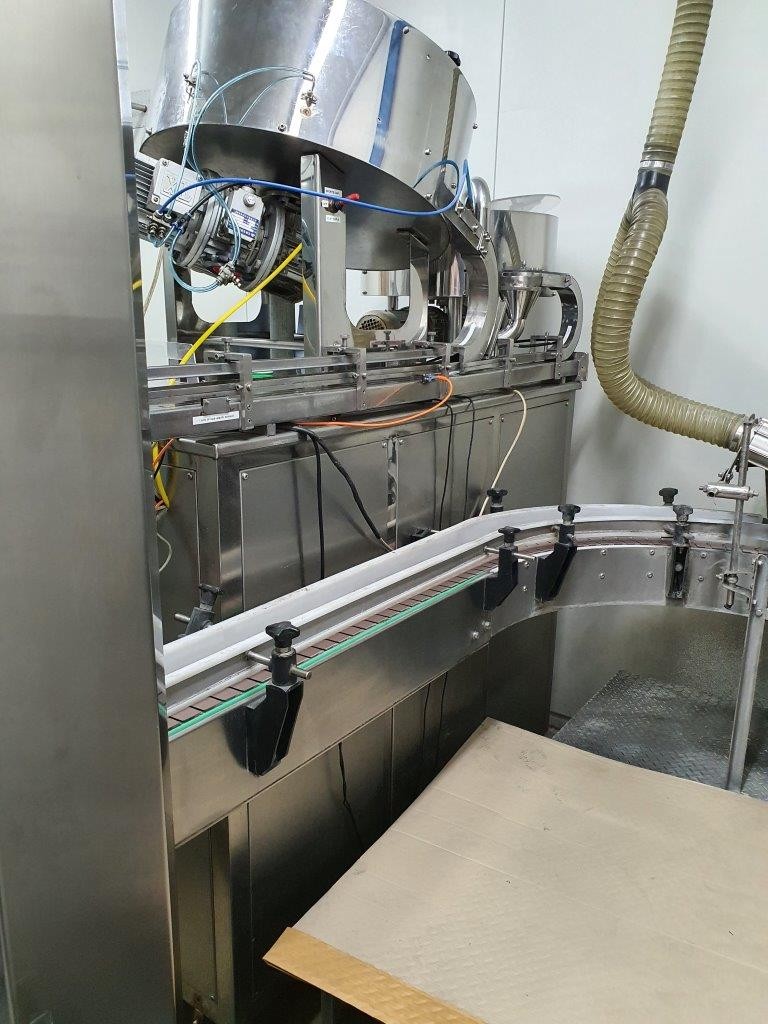

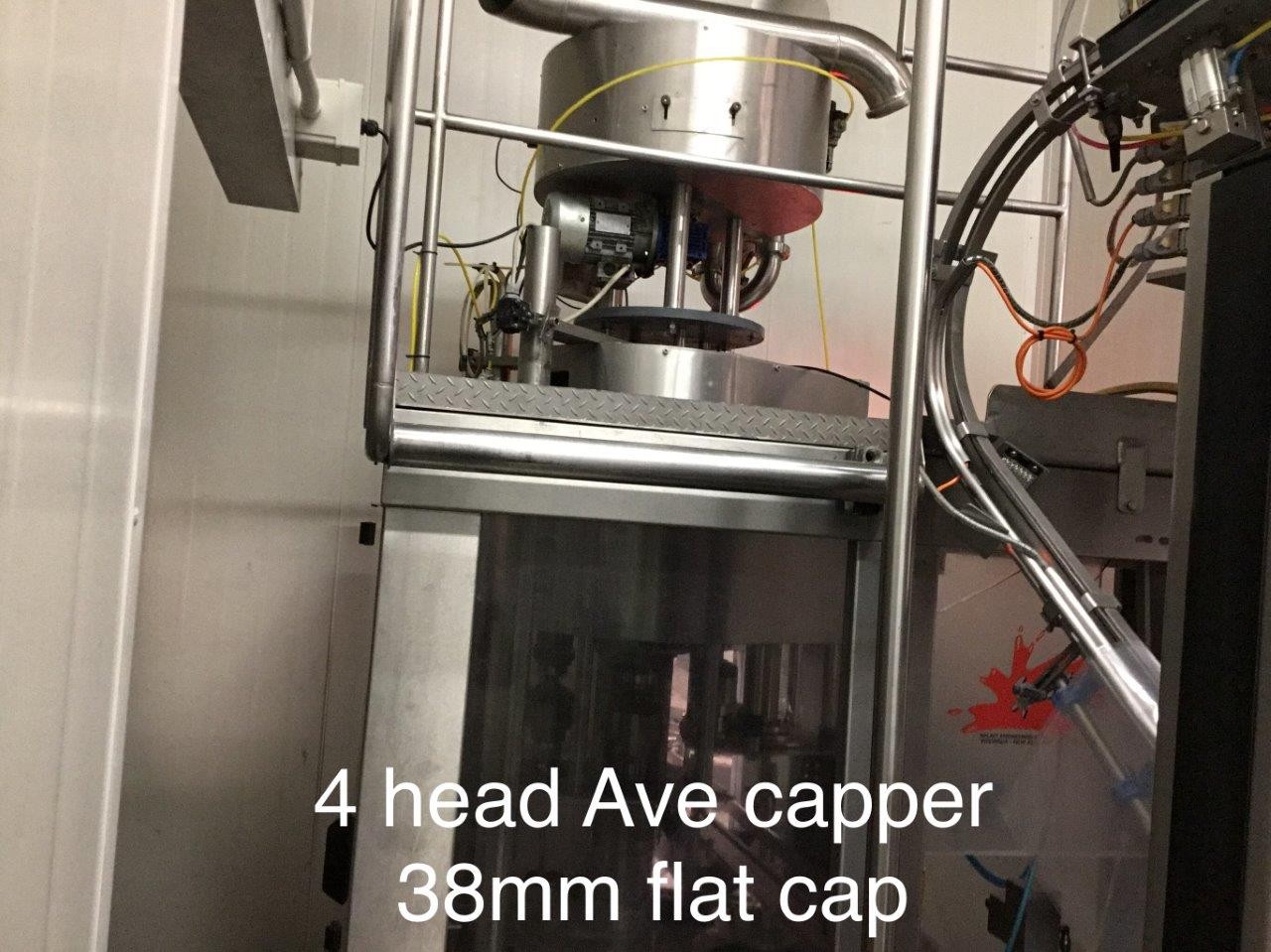

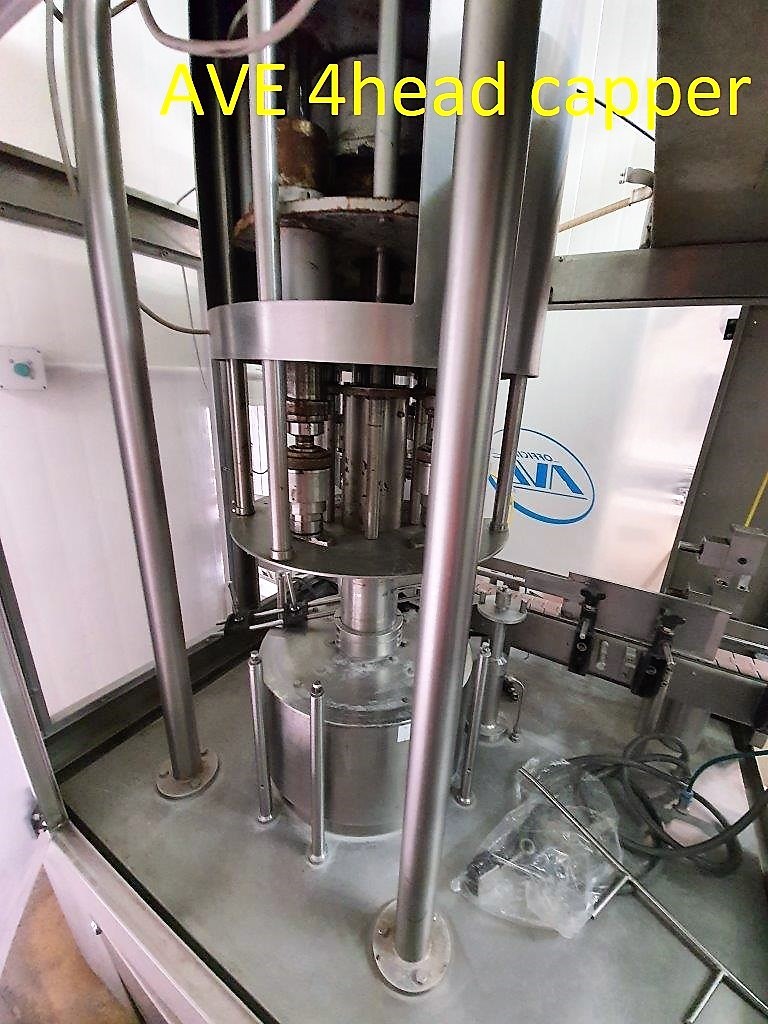

Capper 1002 AVE capper 4head 1999 T 4T

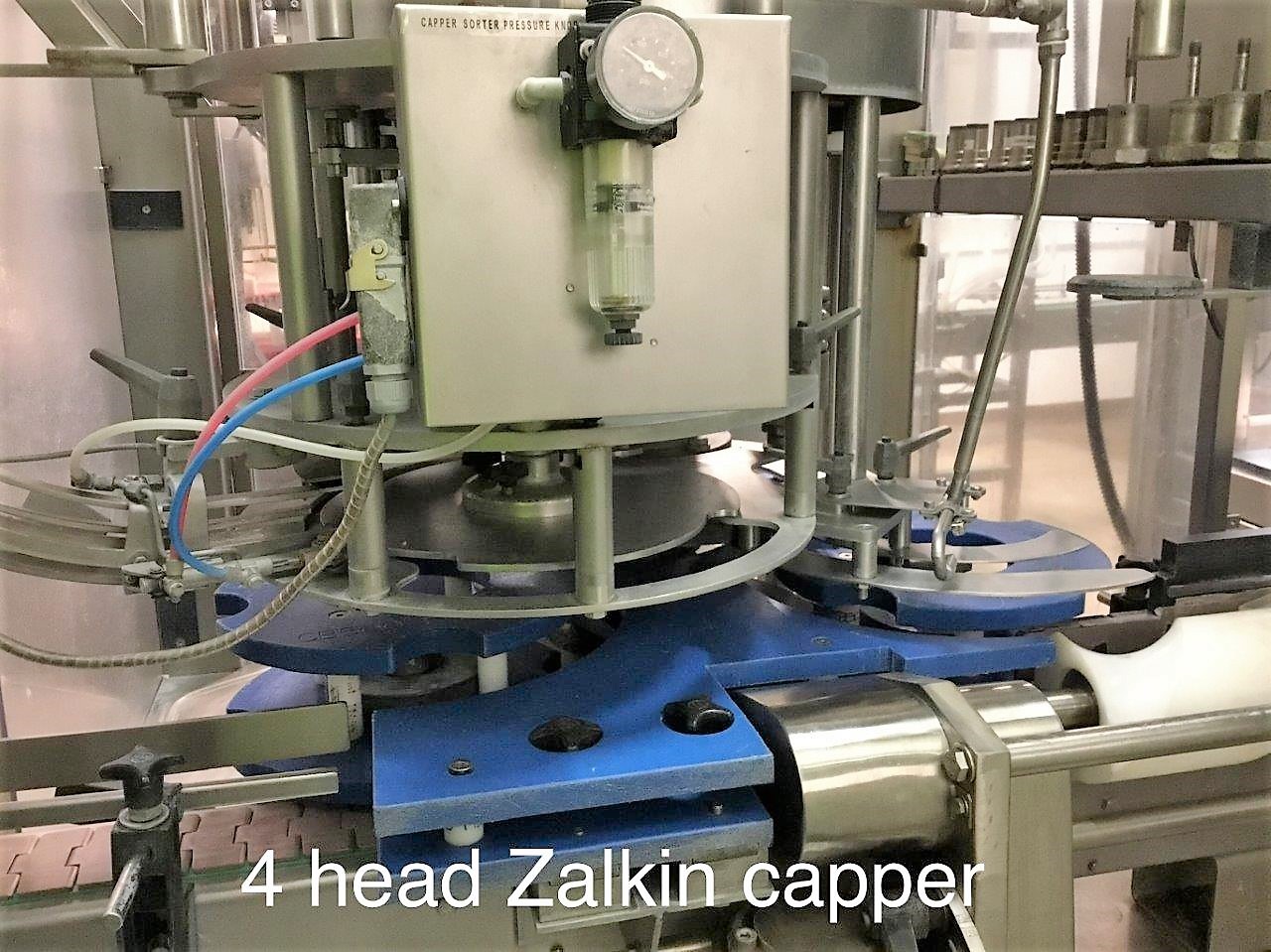

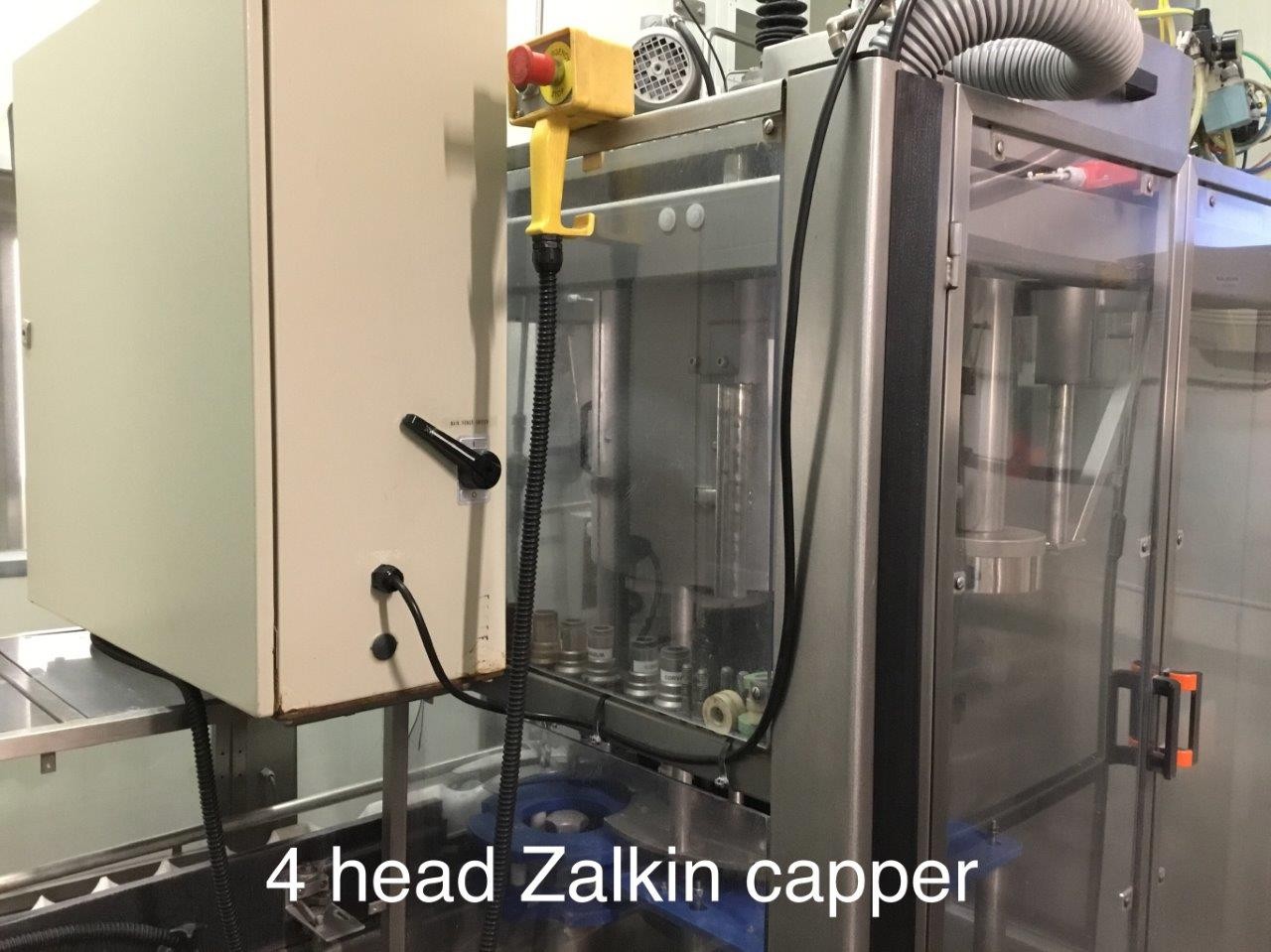

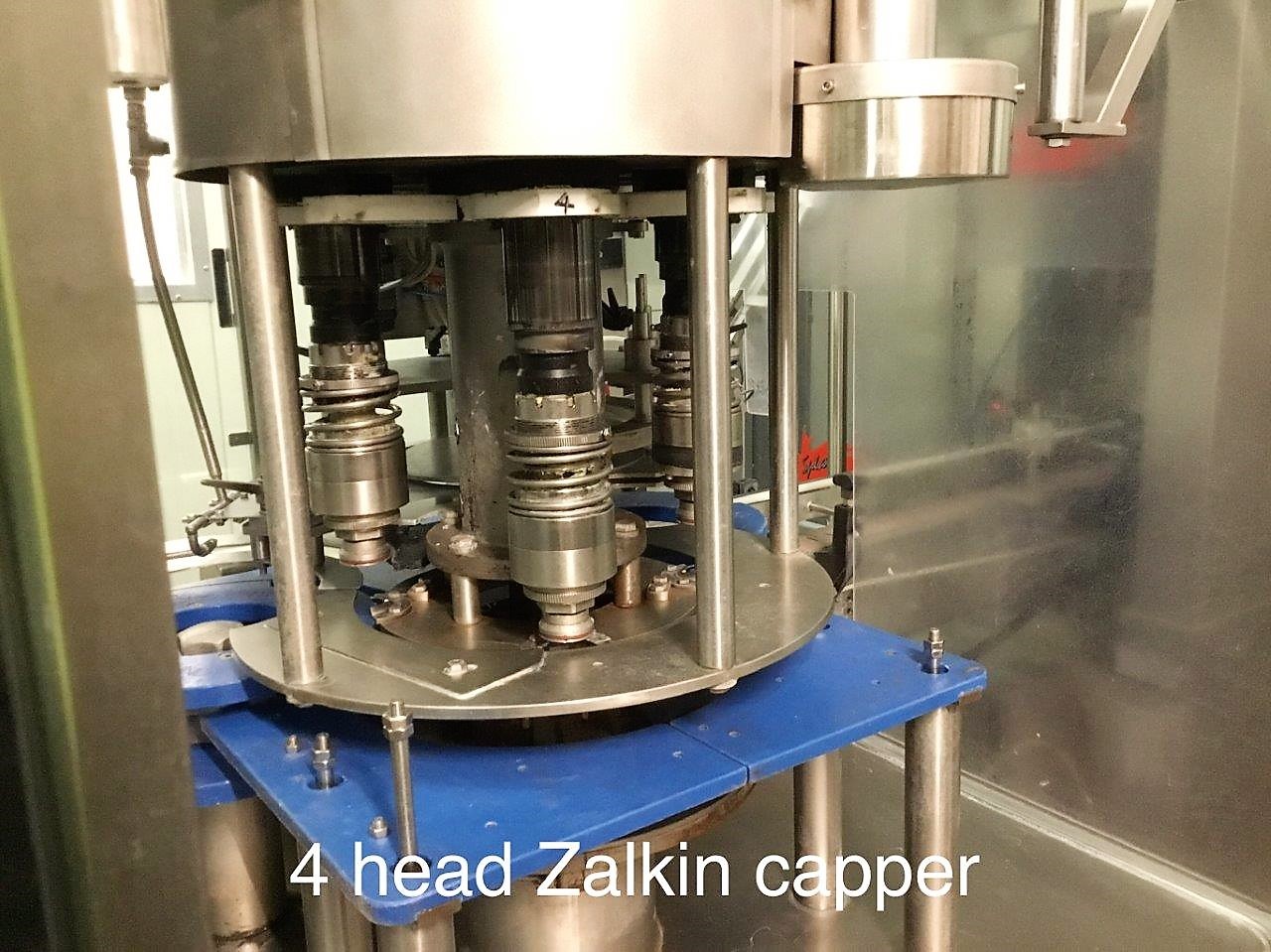

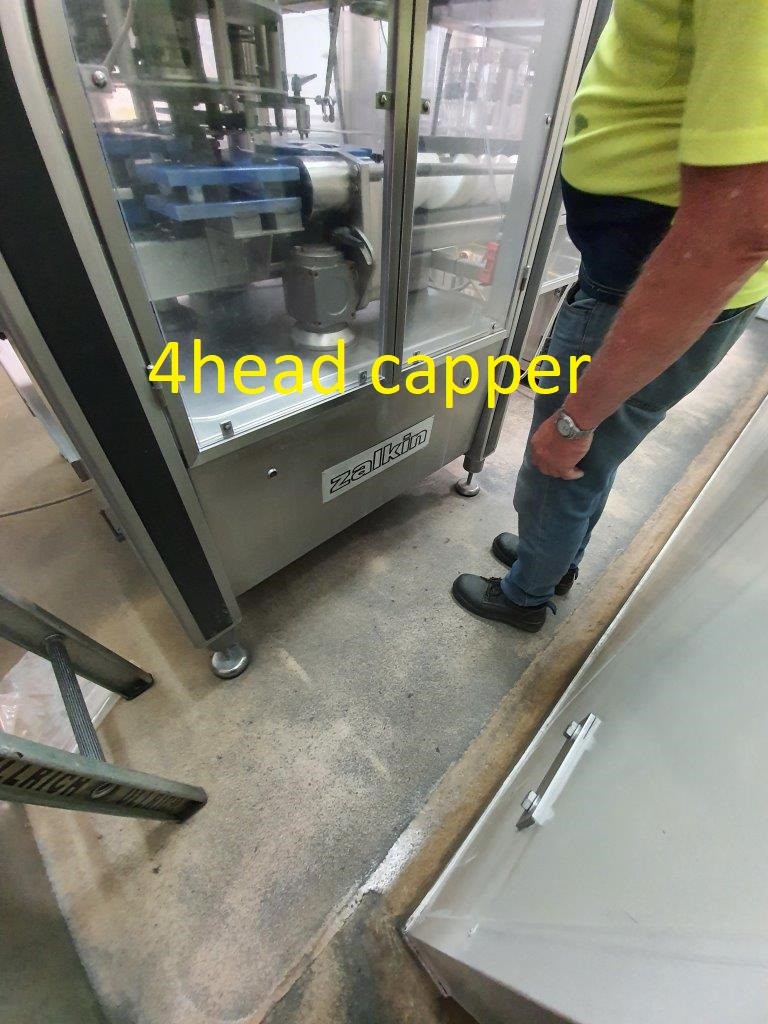

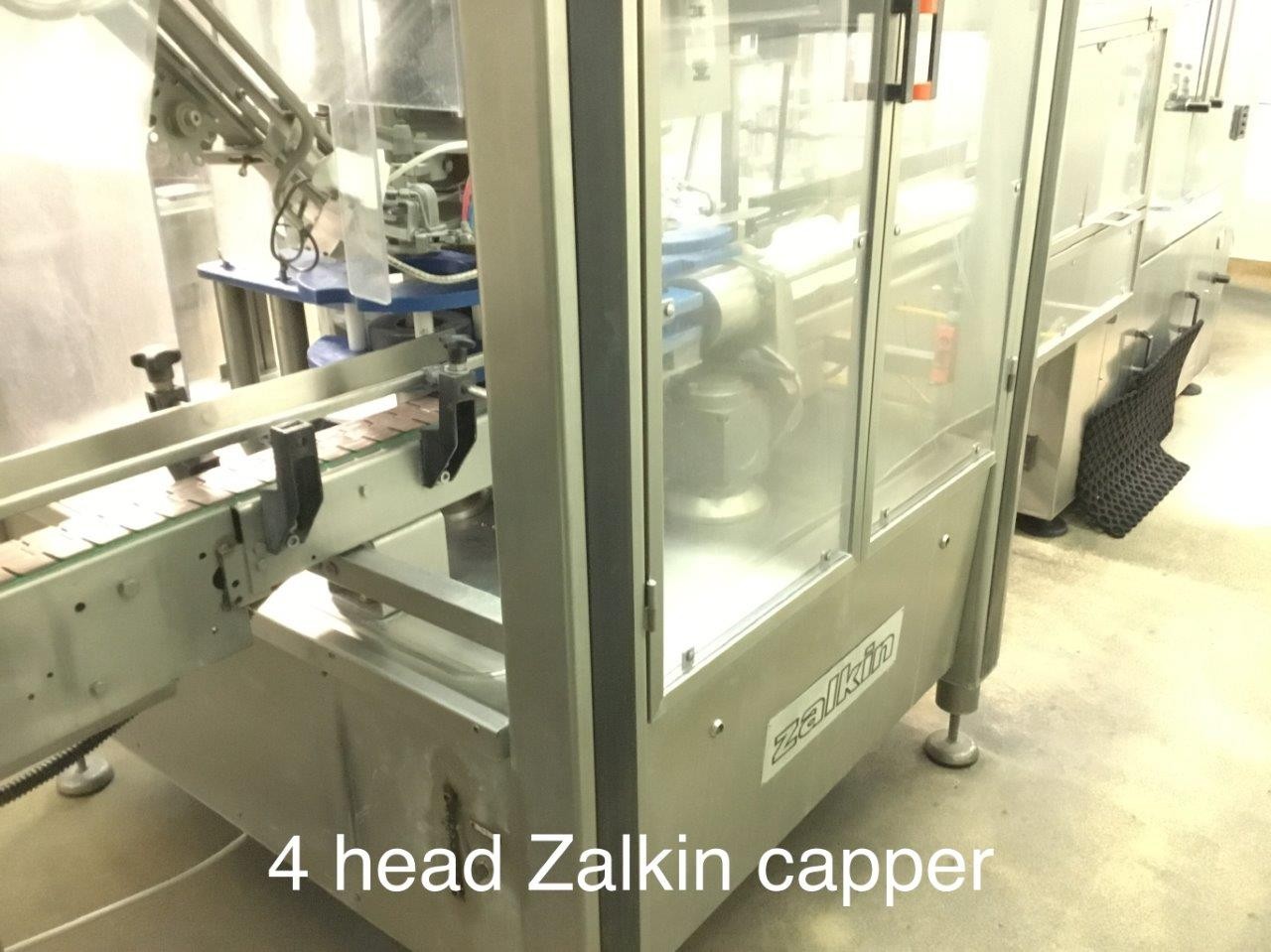

Capper 1003 Zalkin capper 4head 2001 CA4/320-09 has manual
Capper 1004 Single head capper

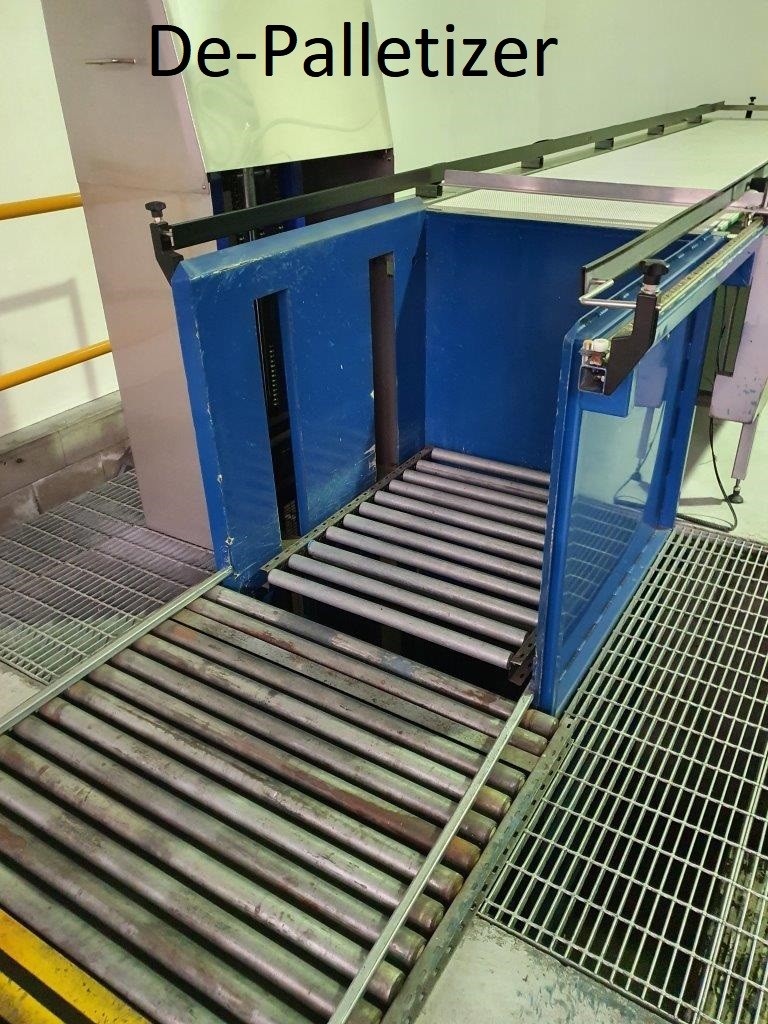

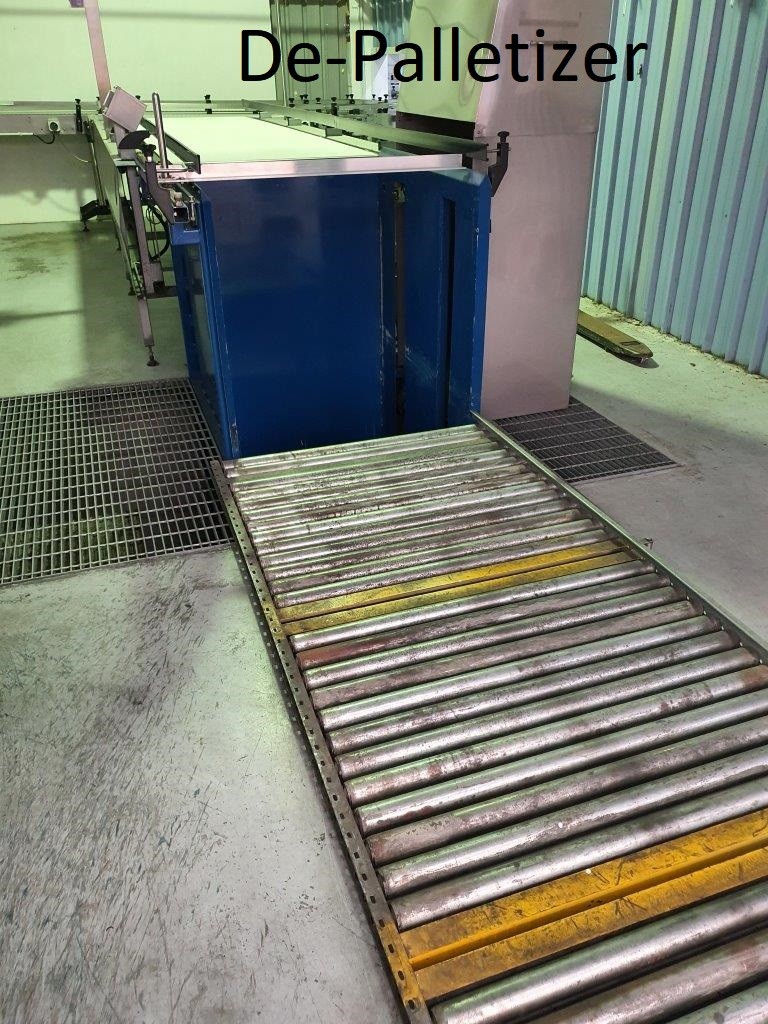

De Palletizer 1005 De Palletizer with associated discharge conveyor
De Palletizer 1006 Hydraulic de palletizer with associated discharge conveyor 2013
De Palletizer 1007 Hydraulic De Palletizer with associated discharge conveyor 2013

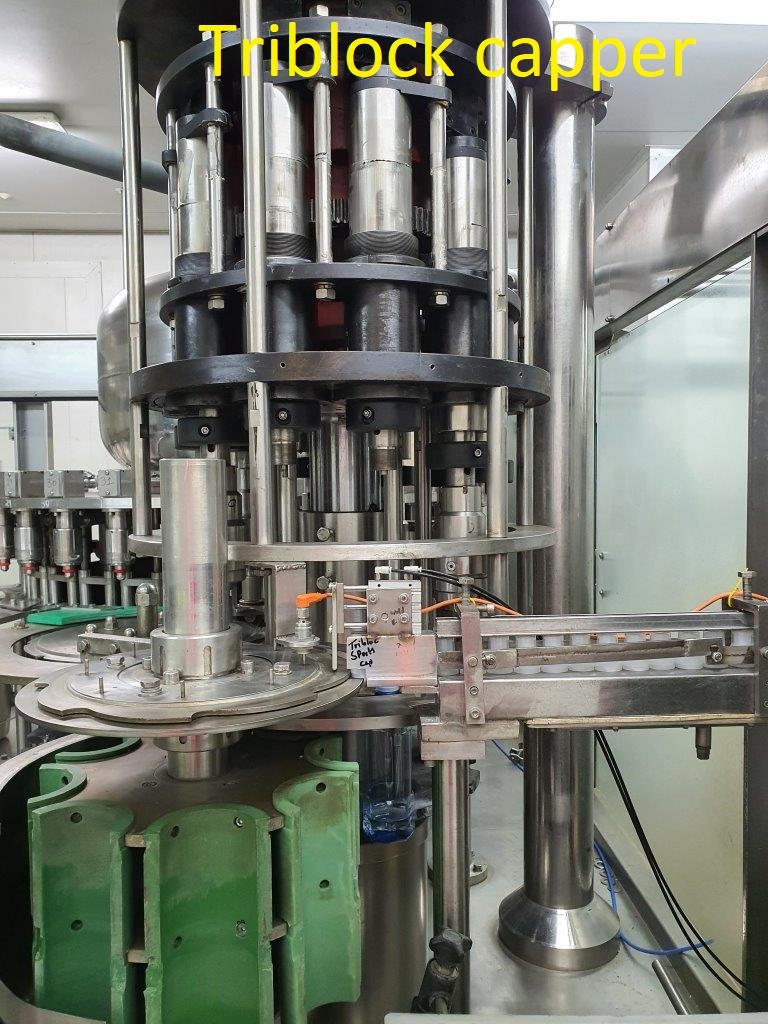

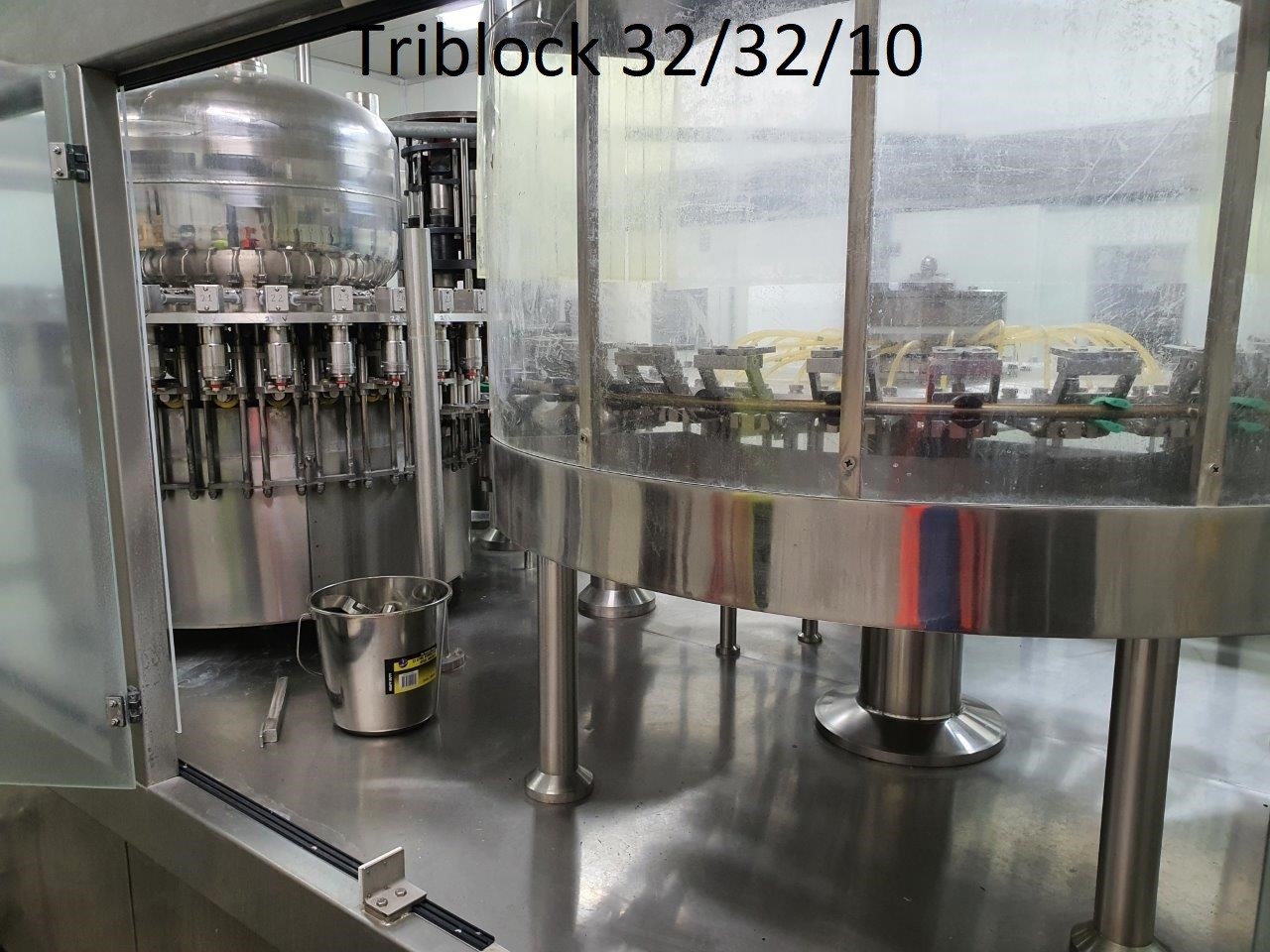

Filler 1008 Triblock 32/32/10 rinser , filler, capper, 170bpm 600ml , capper needs repair

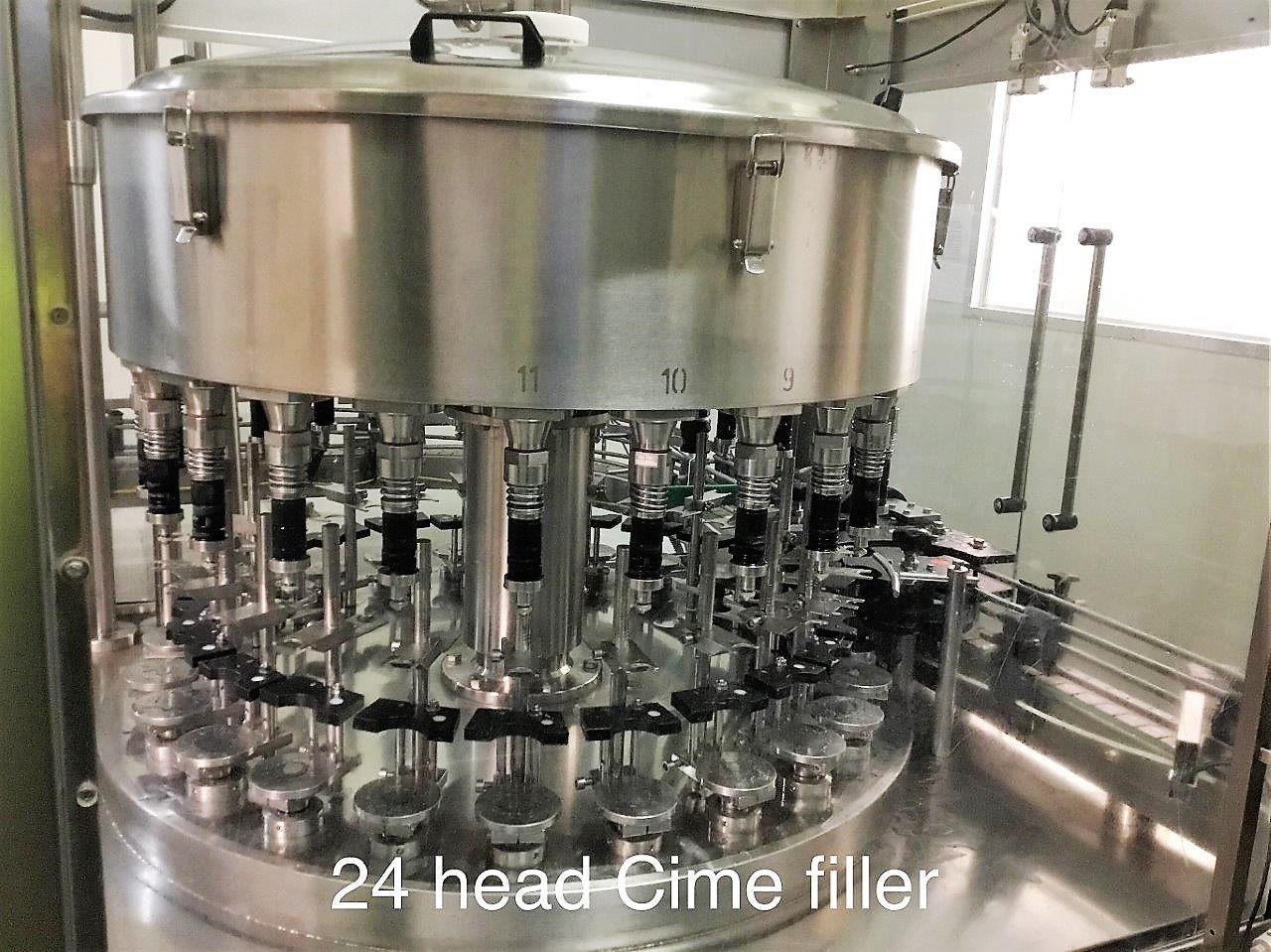

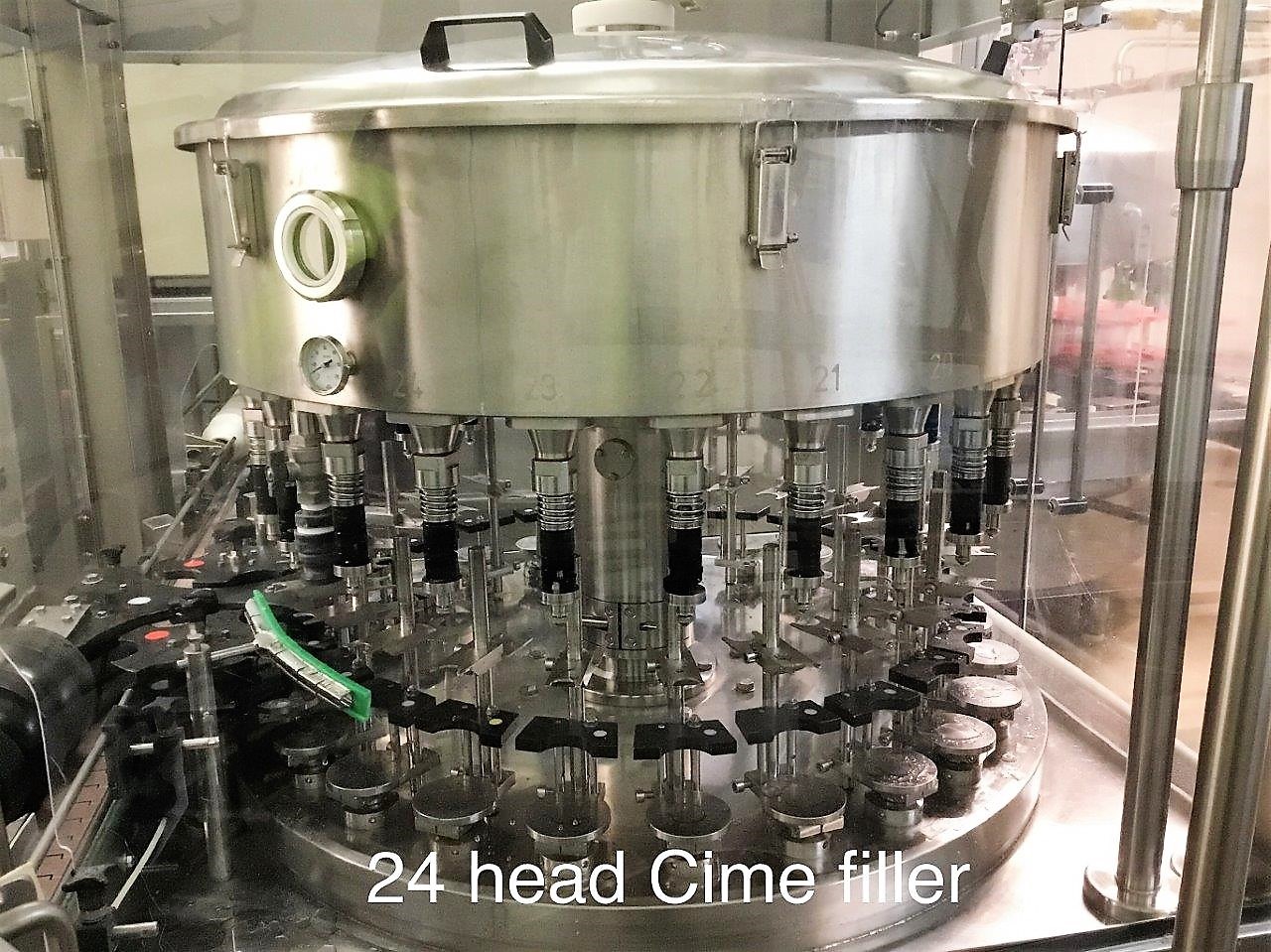

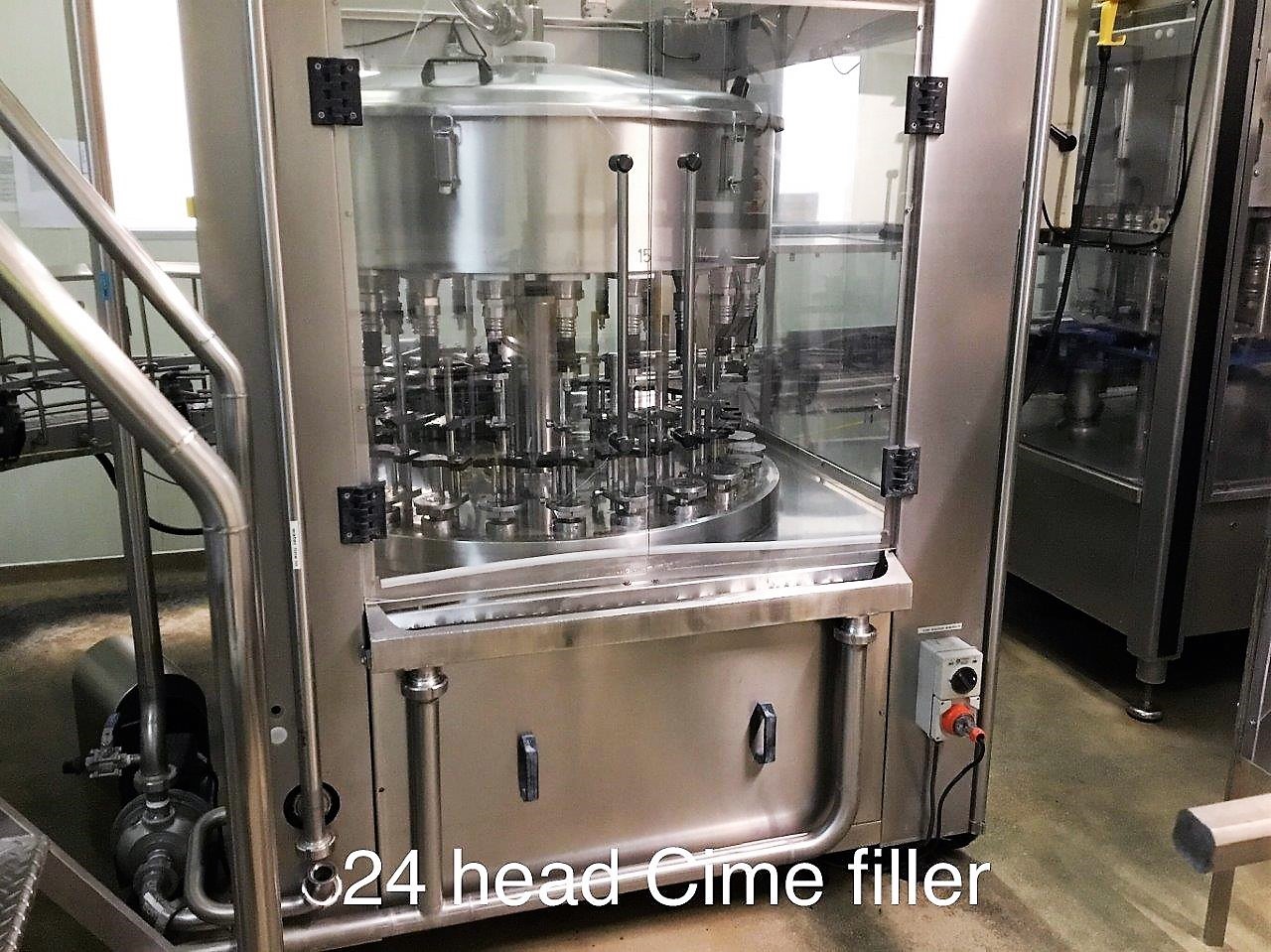

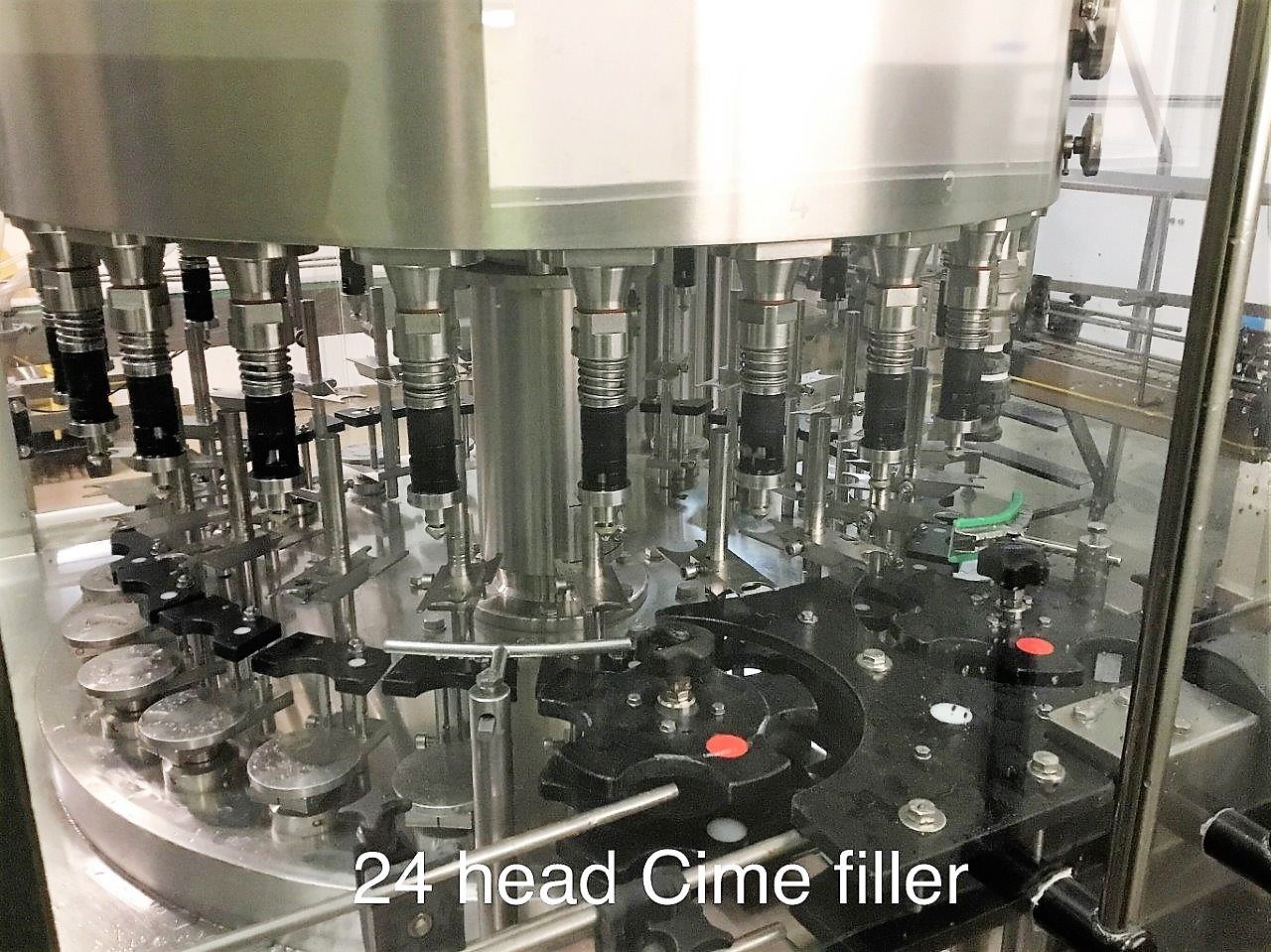

Filler 1009 CIME filler 24head  2004, SILVER24, 110BPM PET 600ml, 330, 420

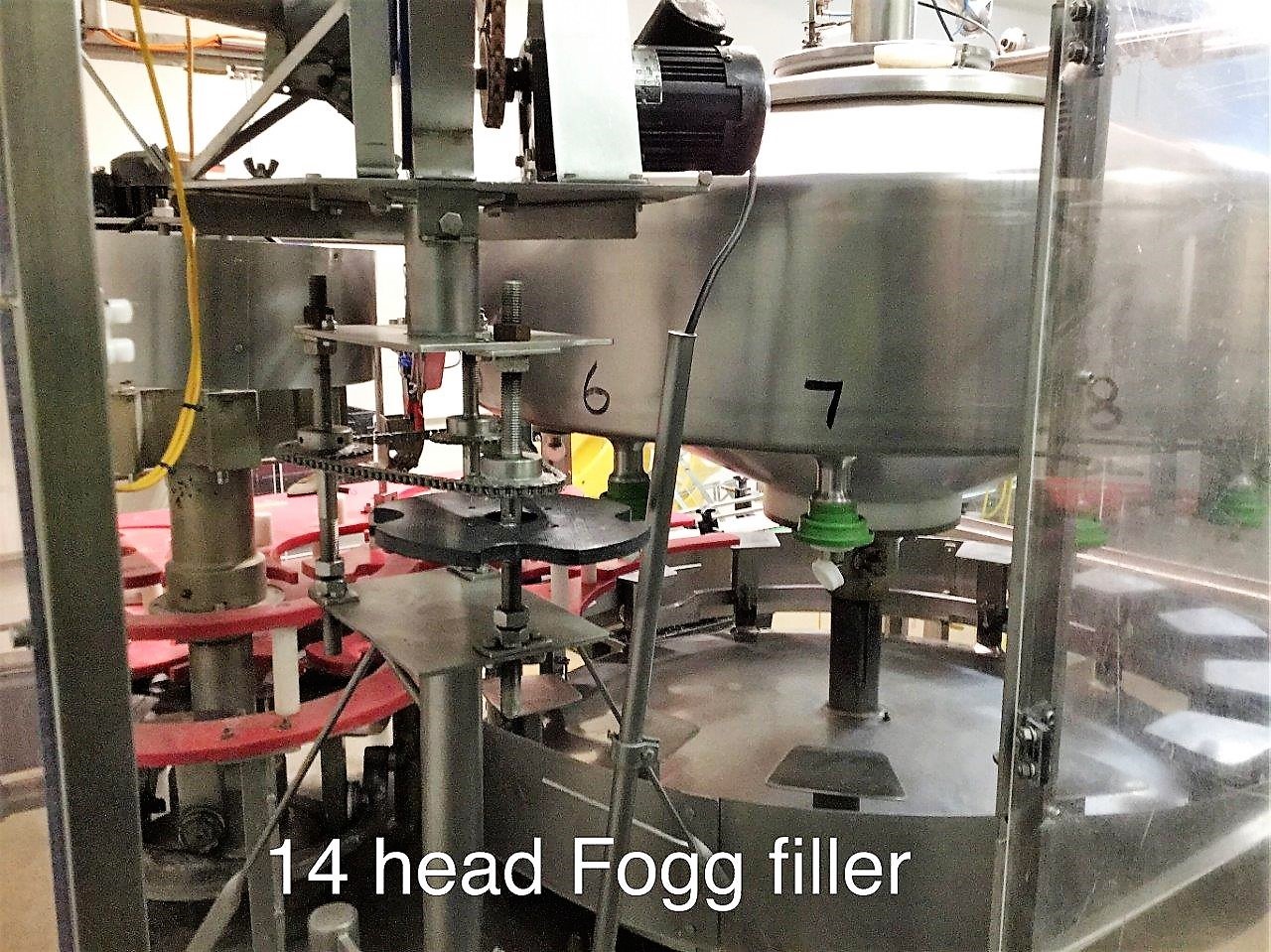

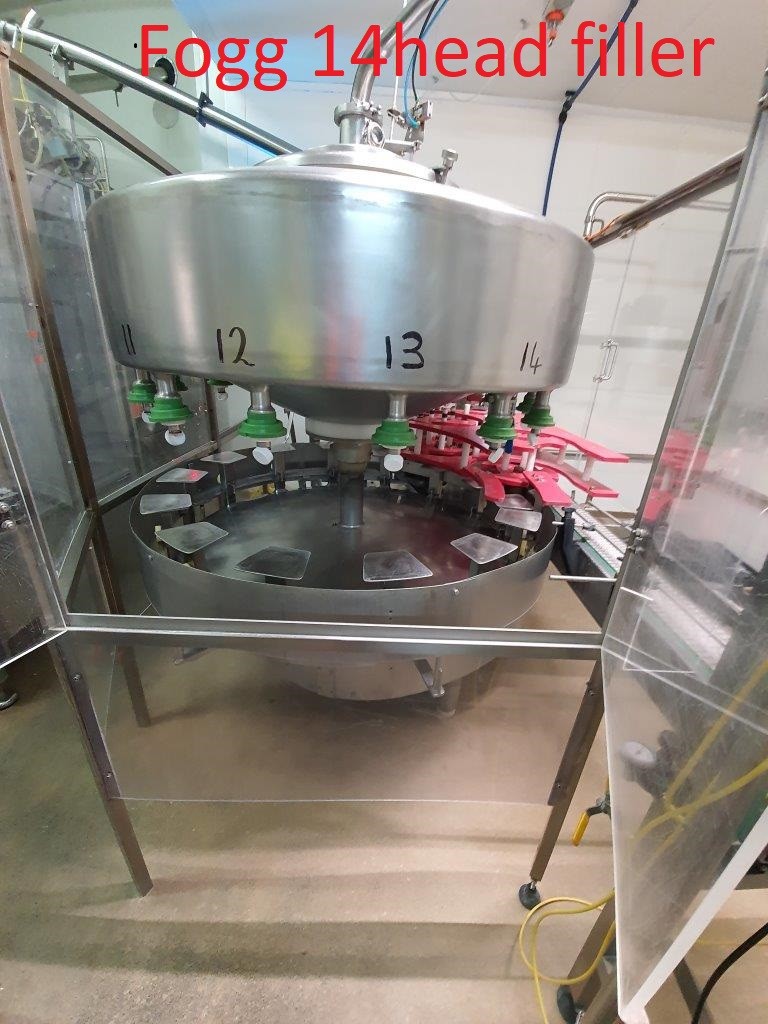

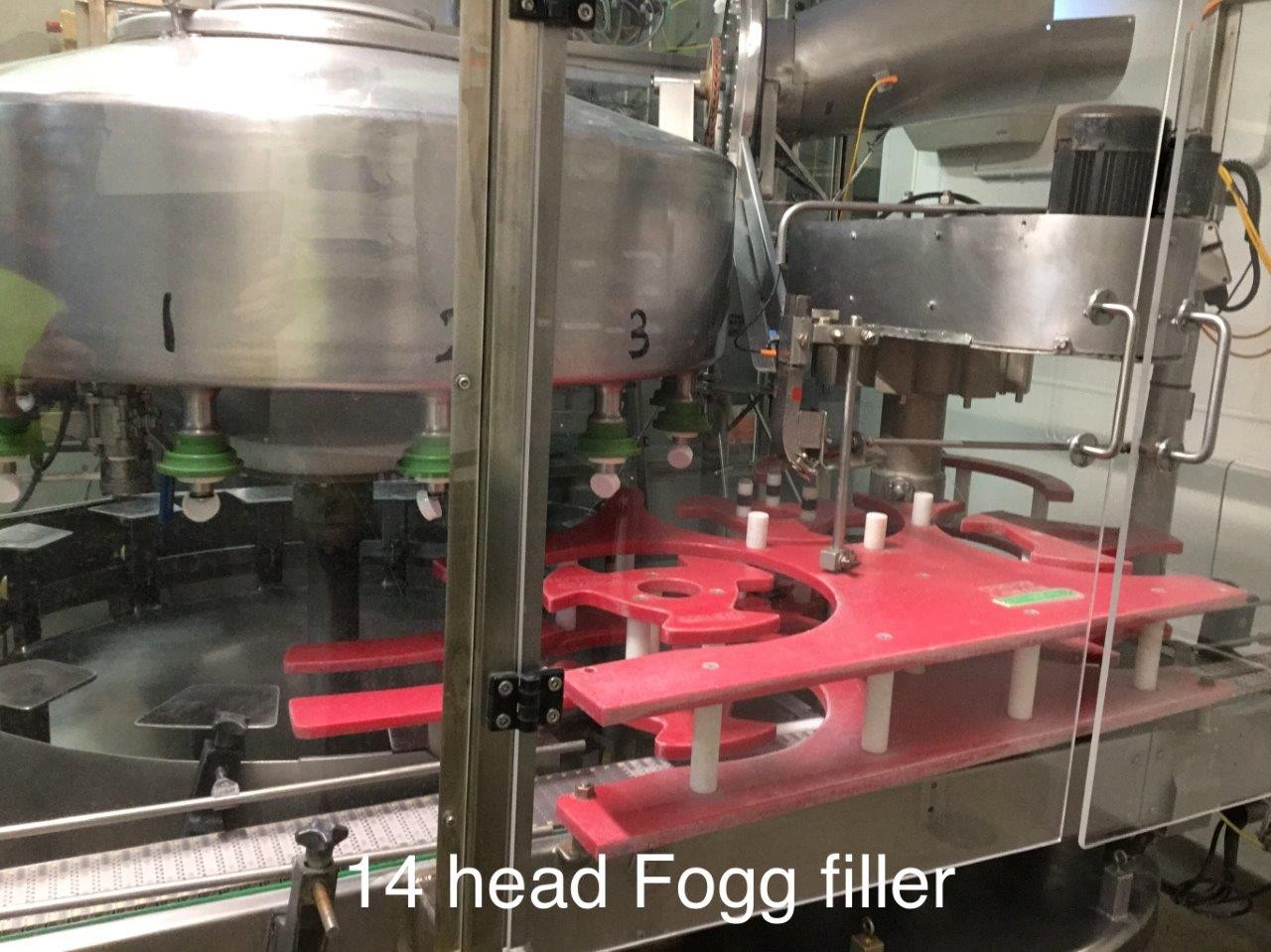

Filler 1010 Fogg Filler 14head, G144 RH, 4ltr PET  48BPM 4ltr no manual doc

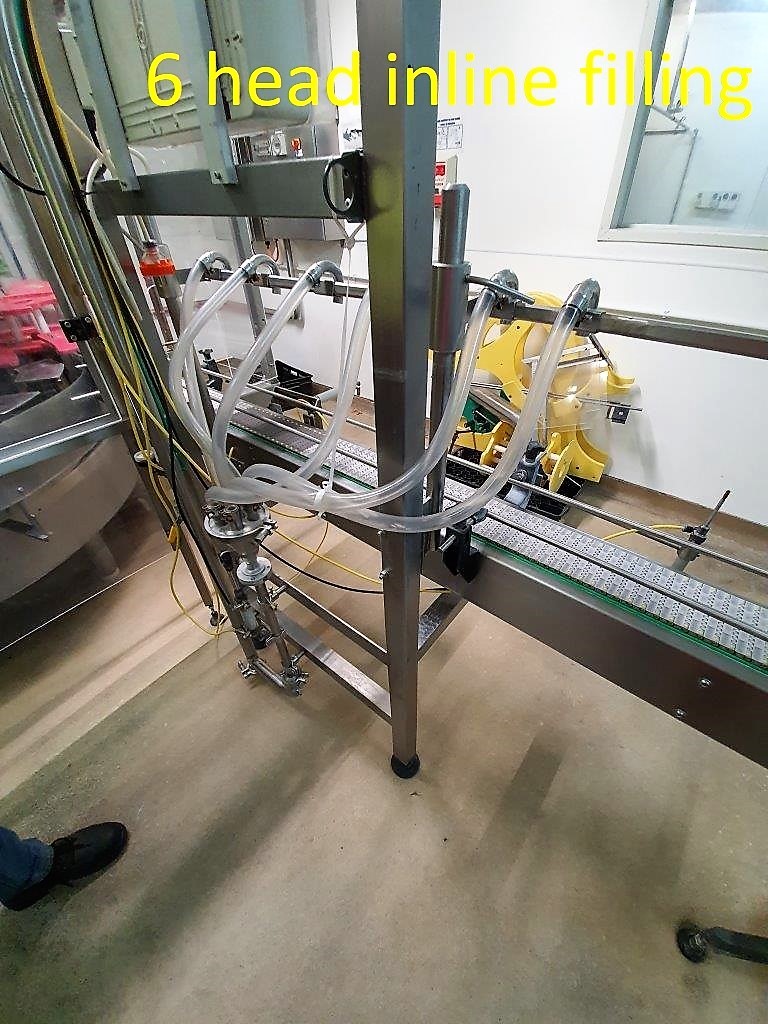

Filler 1011 Manual inline filler 6head with controls

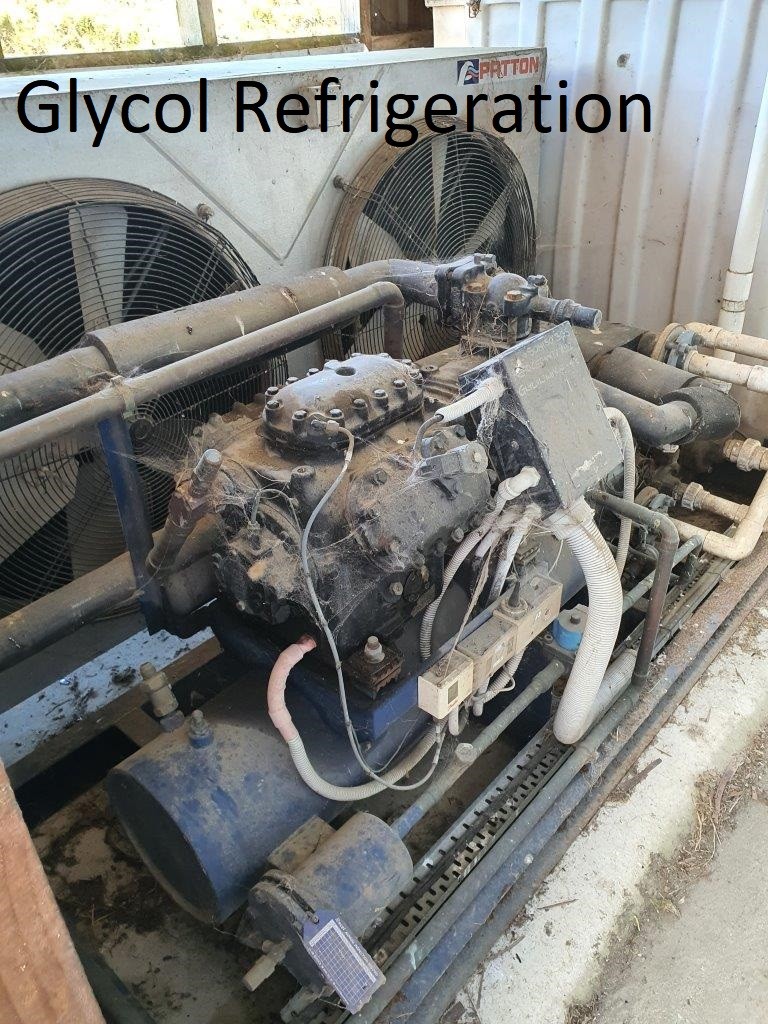

Glycol refrigeration 1012 DEM Copeland, 1984,  type D6RH1-3500-AWM, 26.00kw( not currently in use, however was in good working order )

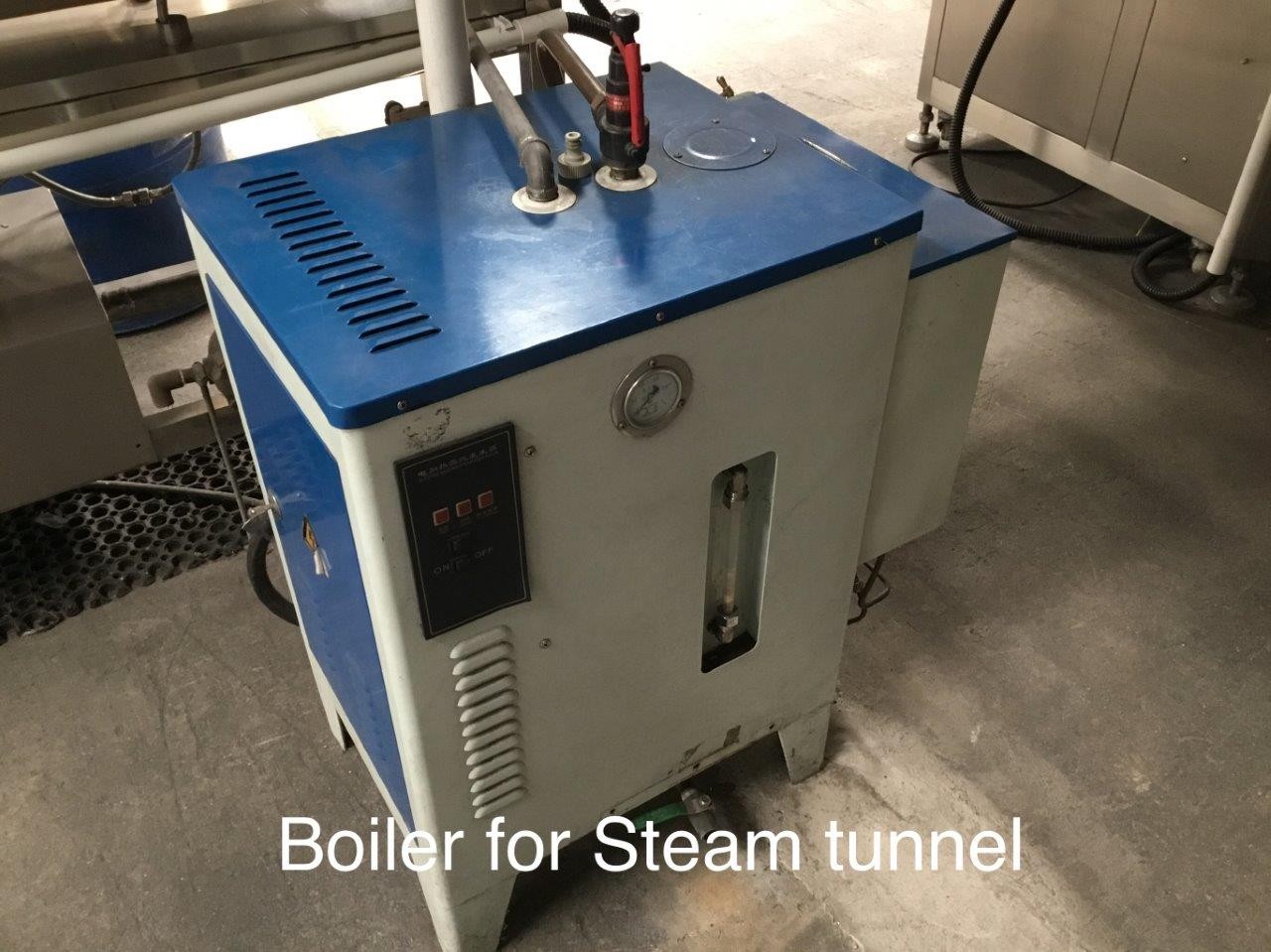

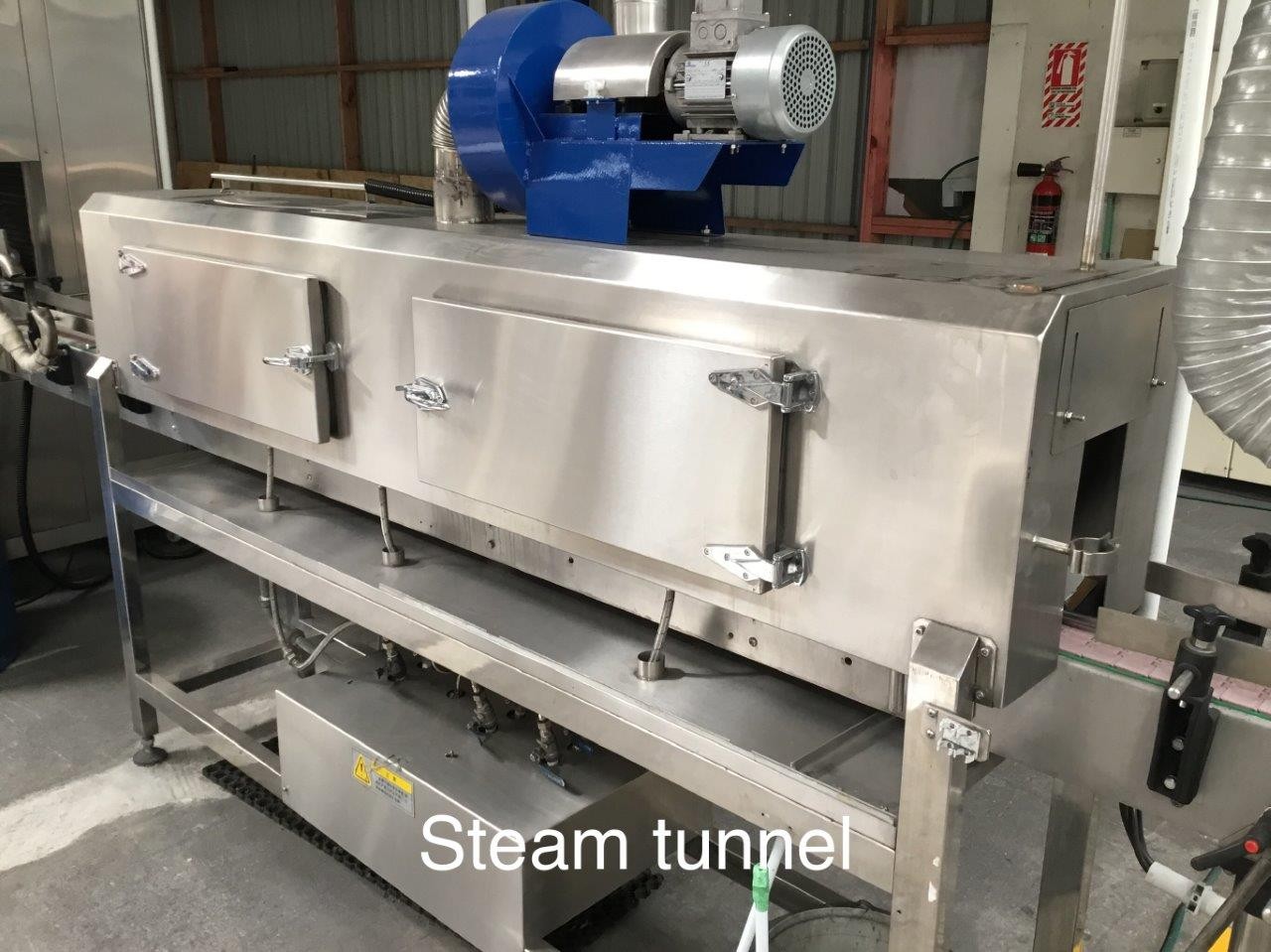

Heat Tunnel 1013 Steam heat tunnel with boiler 2011 LDR005-7, 36kw,

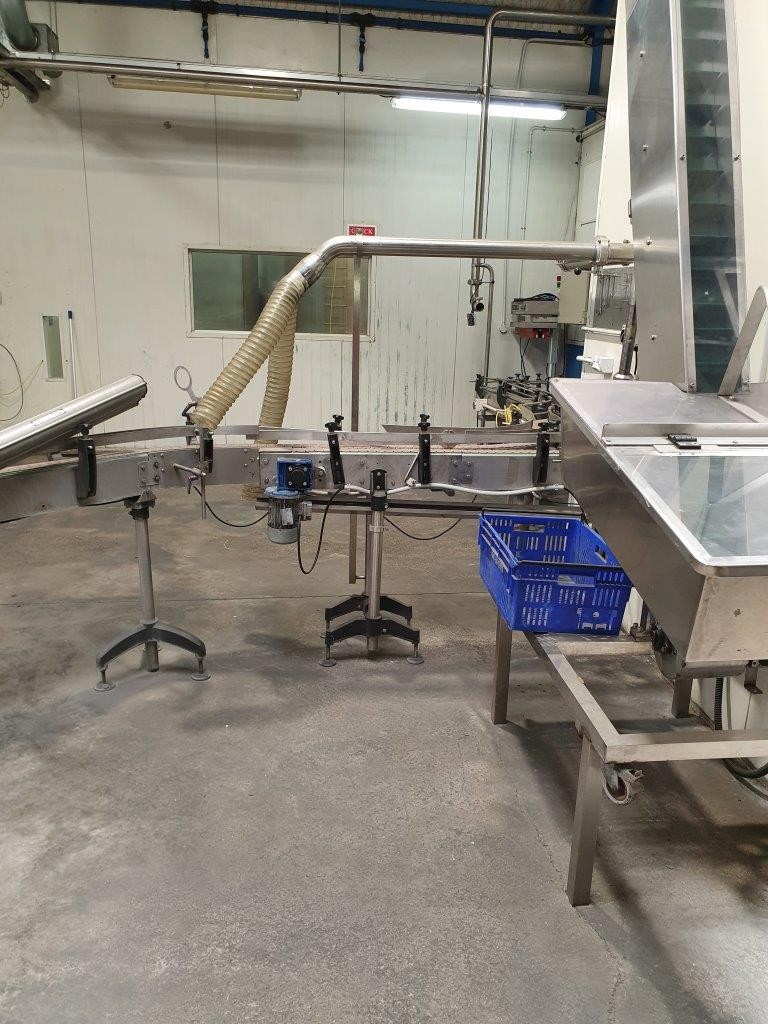

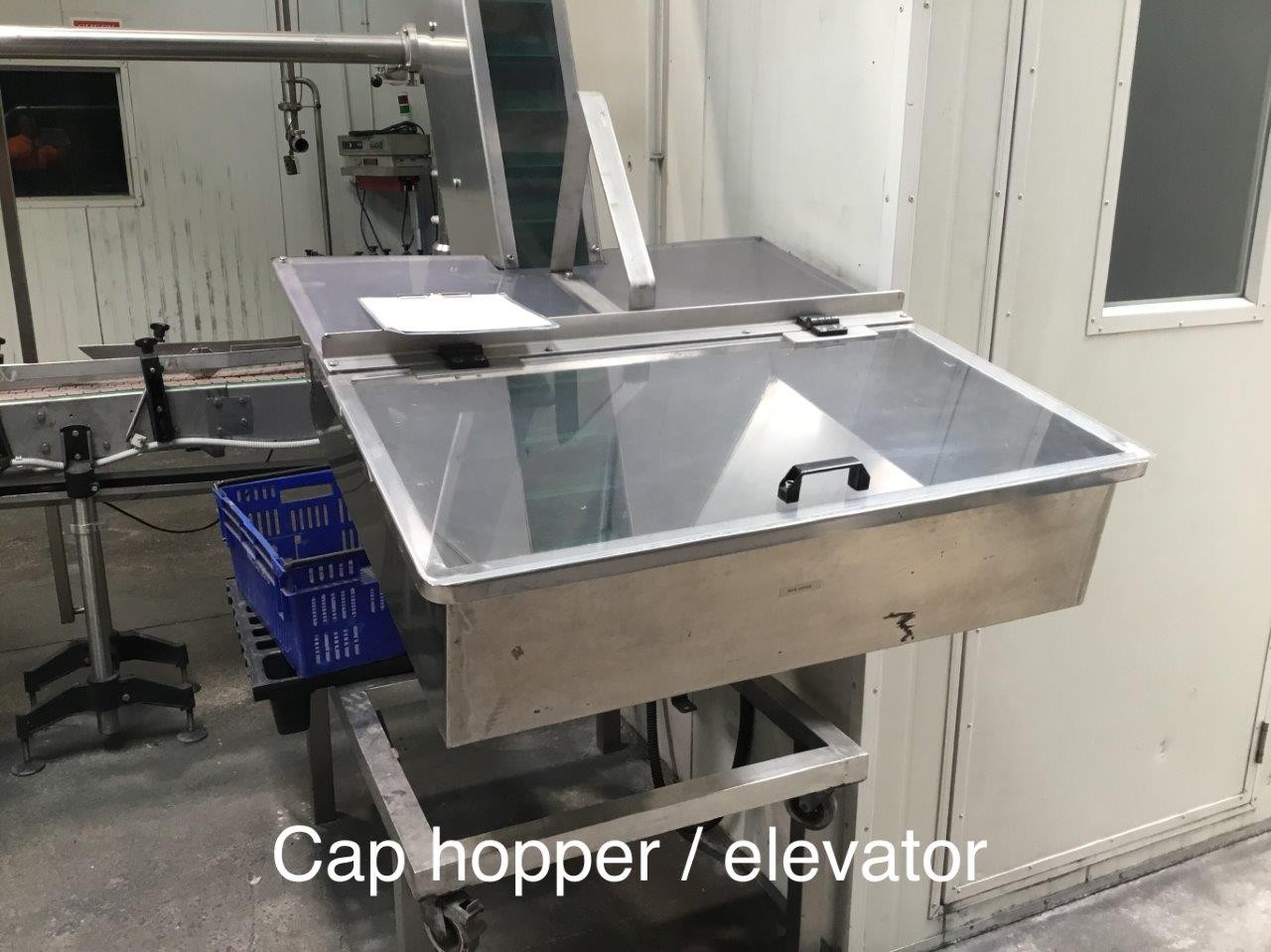

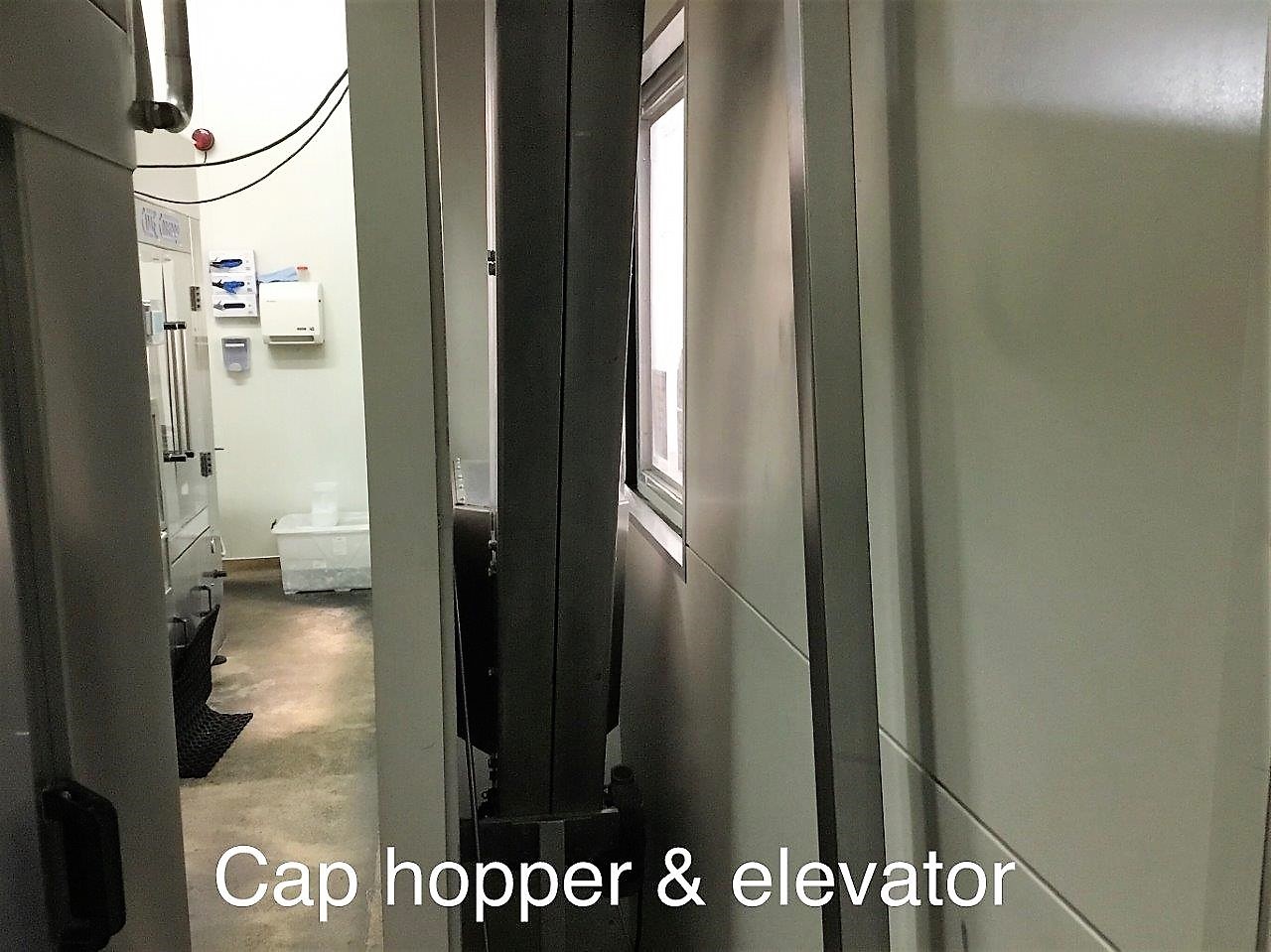

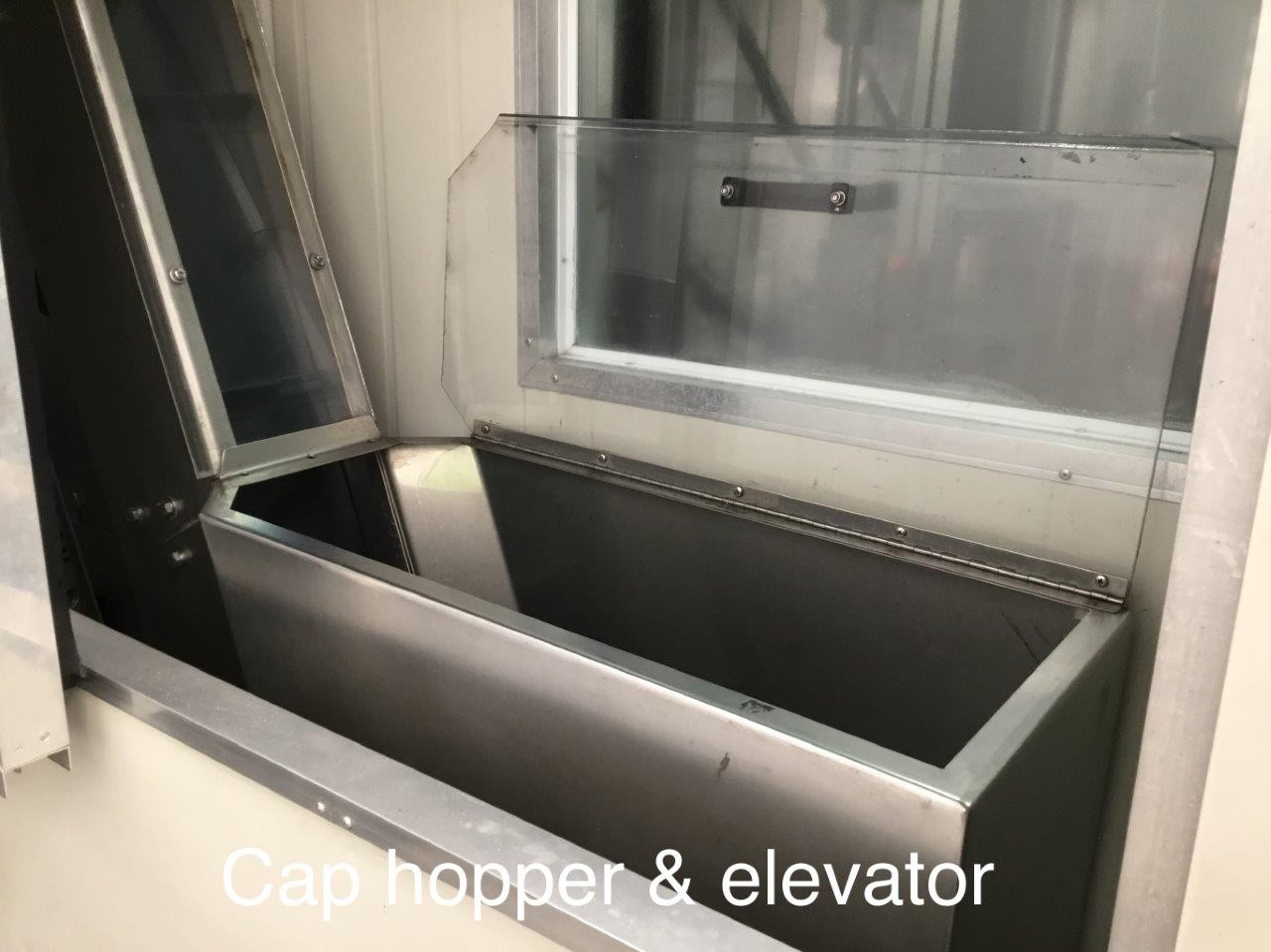

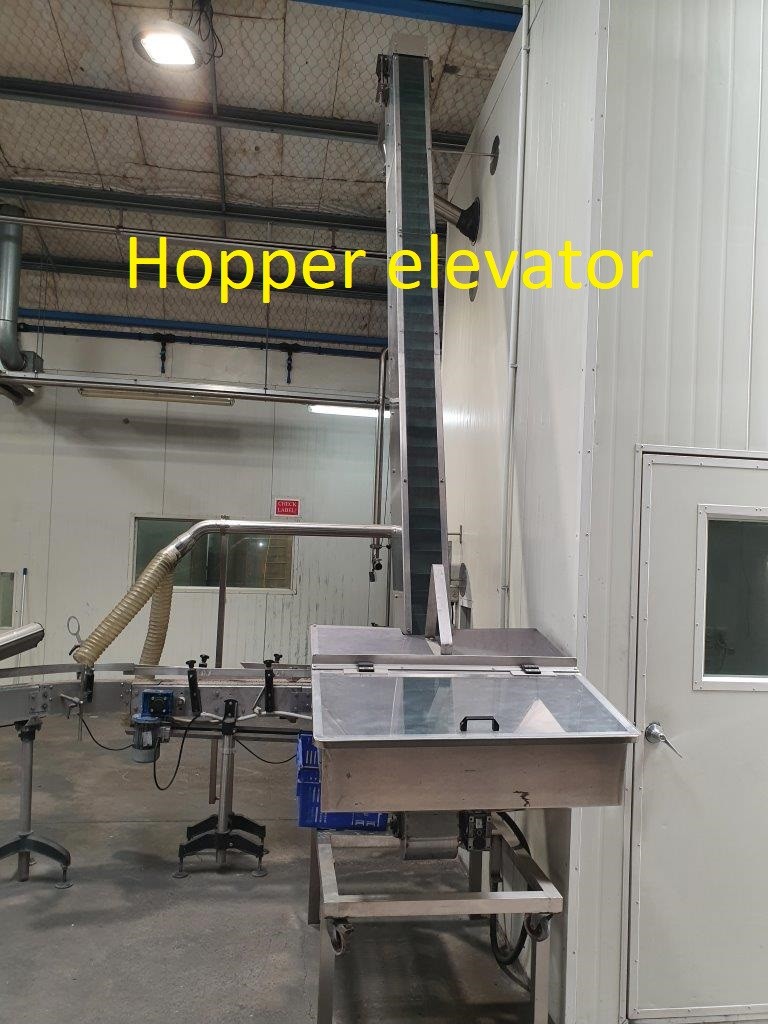

Hopper Elevator   1014 Hopper Elevator
Insulation panels 1015 Insulation panels, doors, windows...

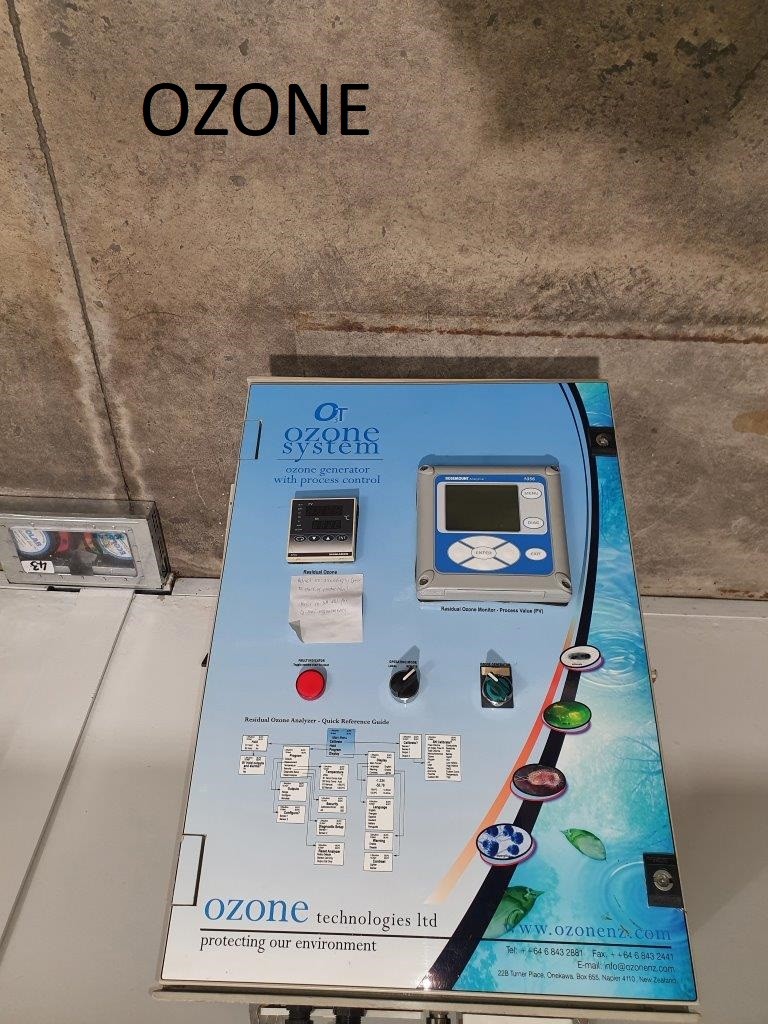

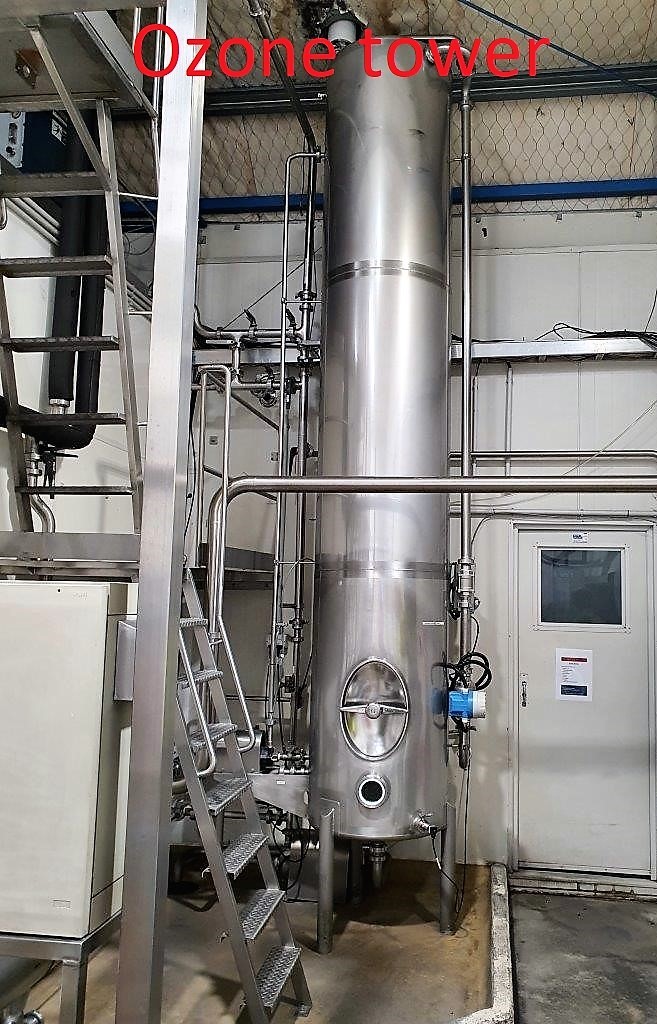

Ozone 1016 Ozone tower 1999
Packing SMI 300F 1017 Packing SMI ST2000, 2006, 180bpm, 600ml 24packs, 64pallets/10hours
Pipe stainless 1018 SS Pipe work

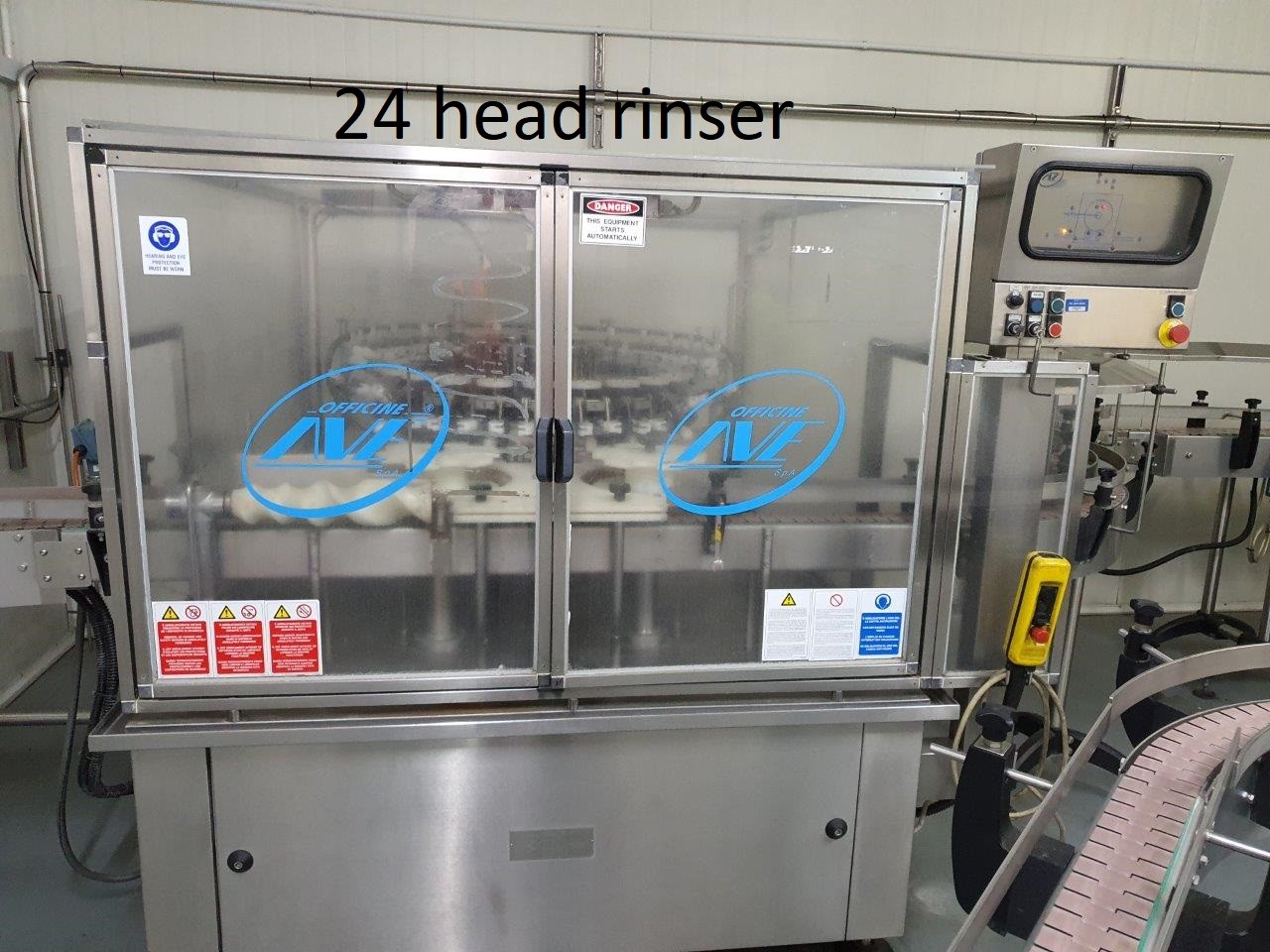

Rinser 1019 AVE rinser 24head with change parts 1997 RA124

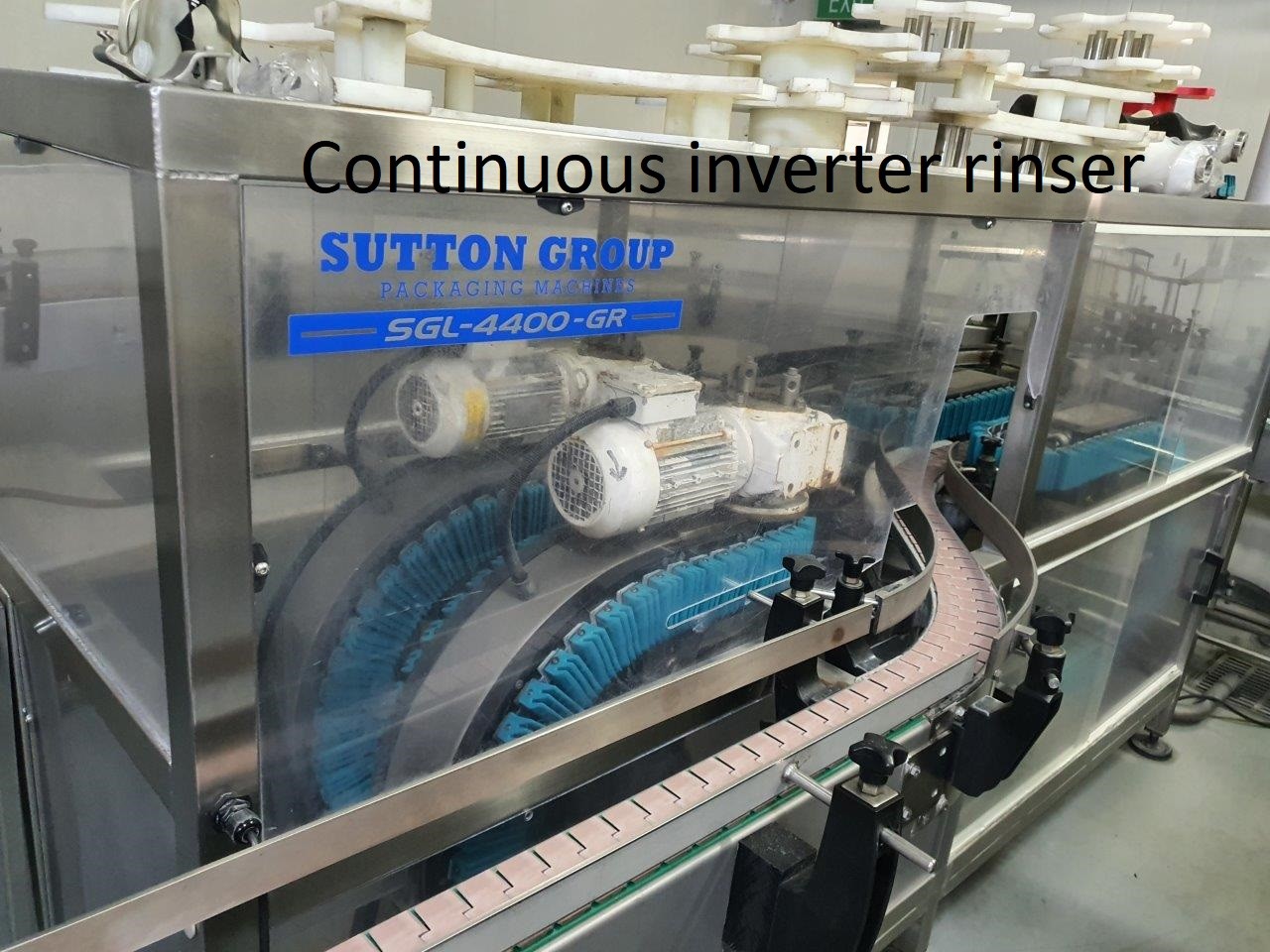

Rinser 1020 Rinser continuous, inverter Sutton group SGL4400GR  various size bottles

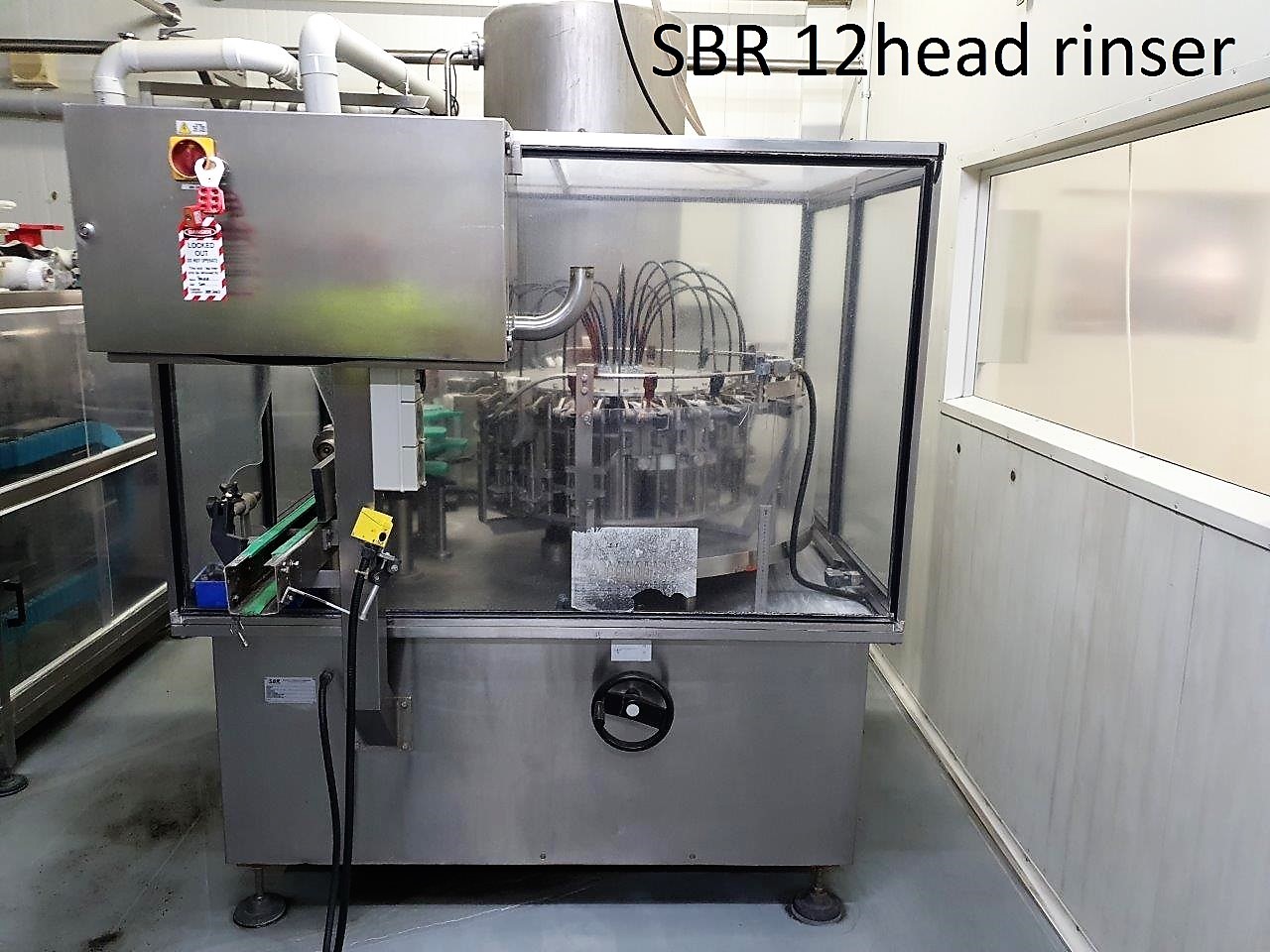

Rinser 1021 SBR Glass 12 head rinser 1994 ( part missing ) not in service

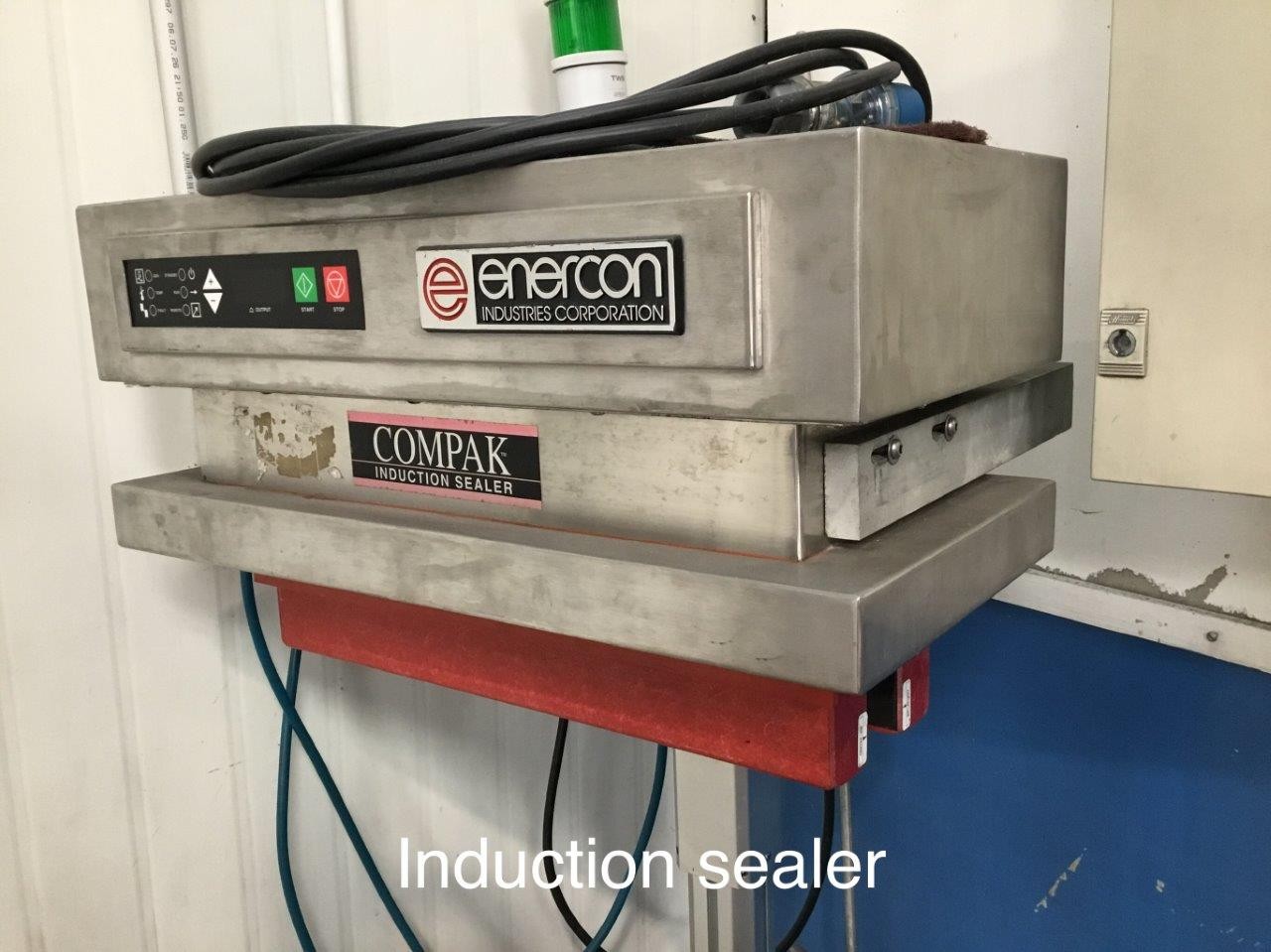

Sealer 1022 Enercon Induction sealer

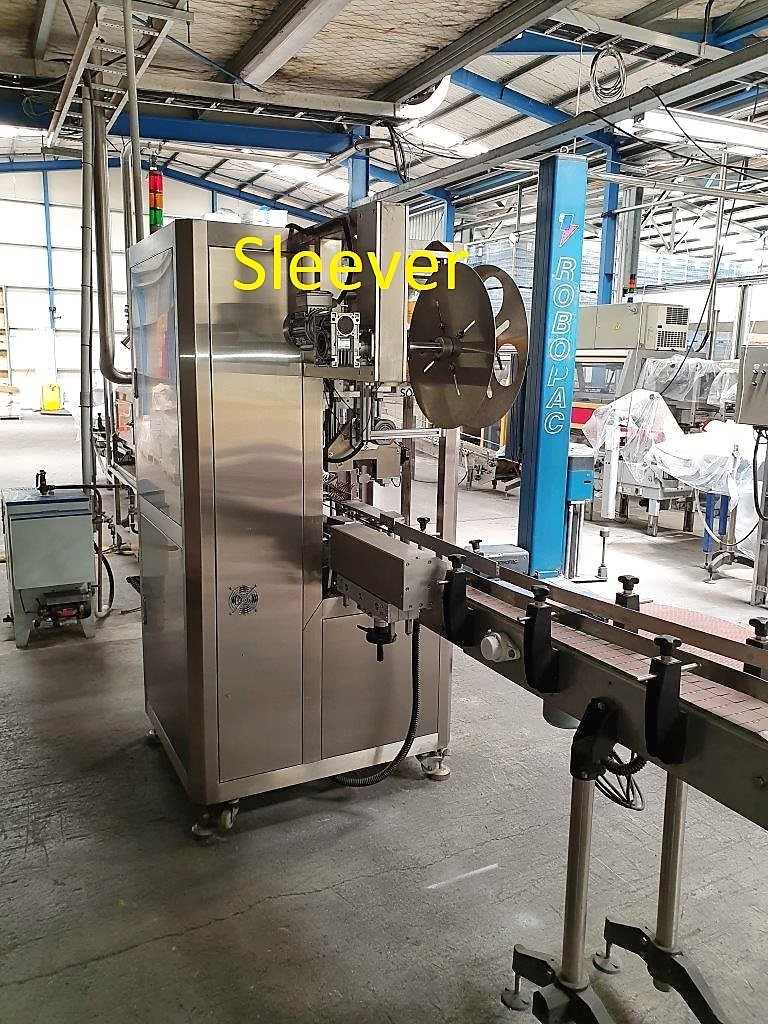

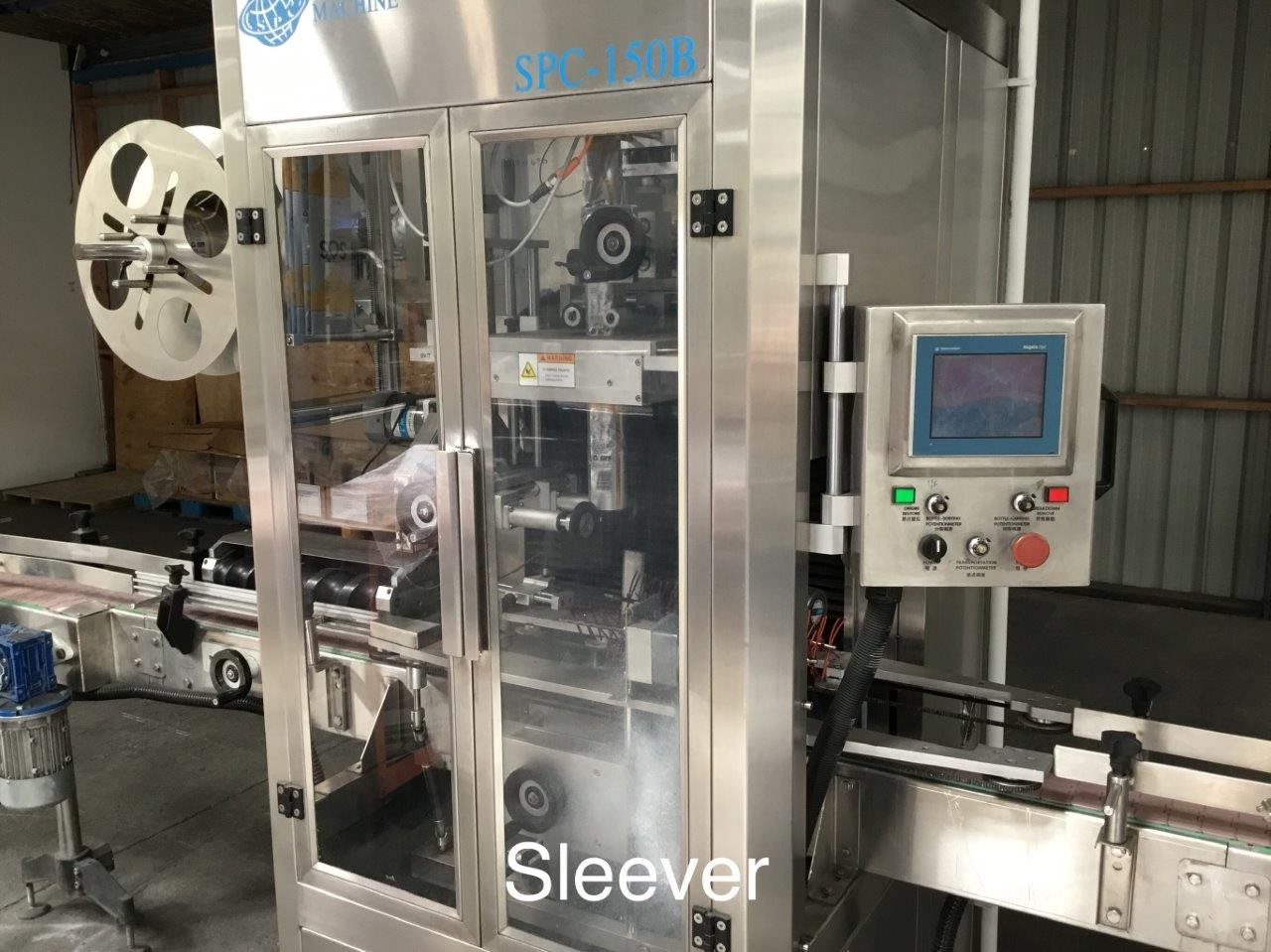

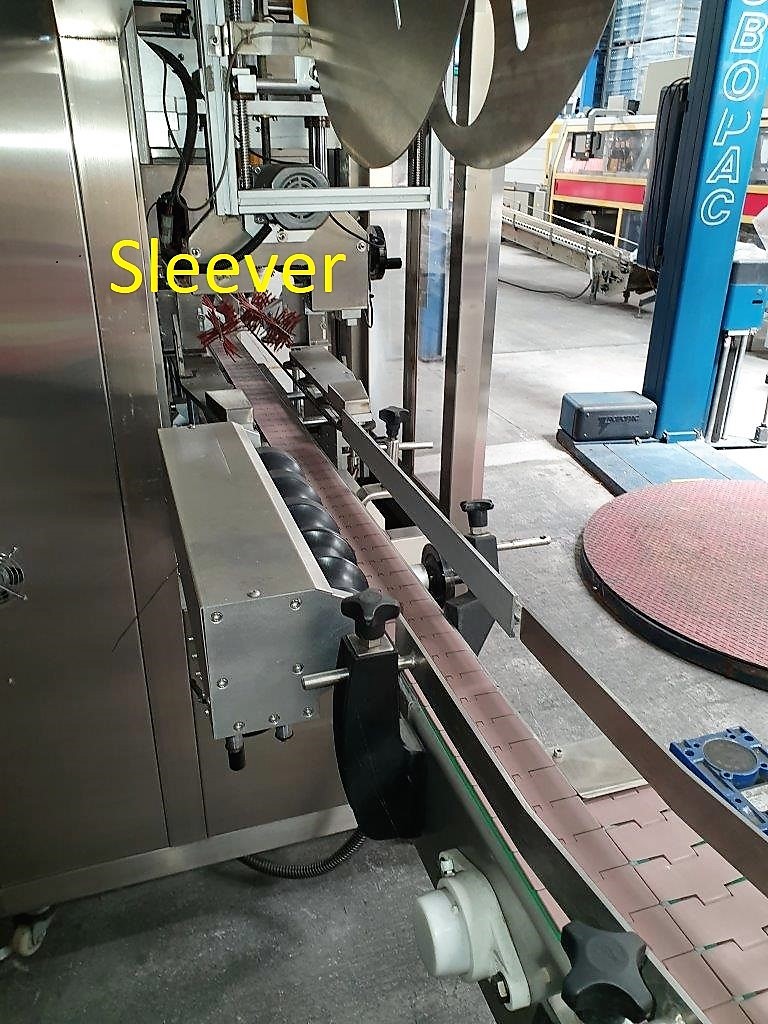

Sleever 1023 SPC 150B Sleever, 2011.
Spares 1024 spares various

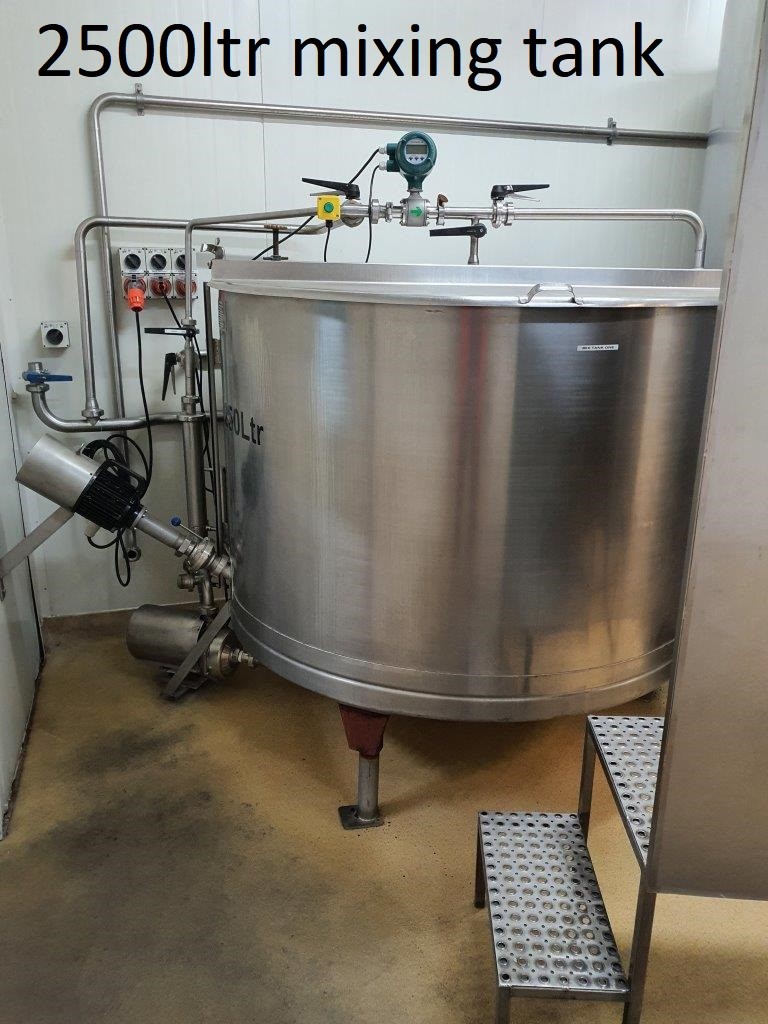

Stainless Tank 1025 sold 2250ltr, 1.9d x 2h, open top vat with lids, single skin, cip, pump, mixer

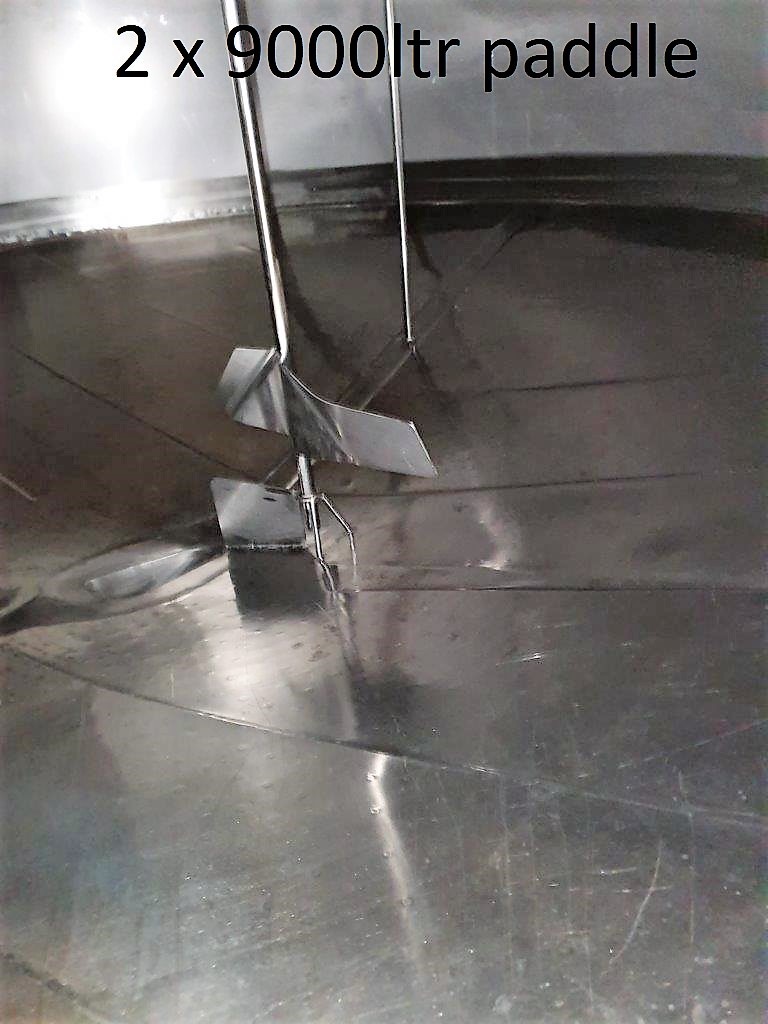

Stainless Tank 1026 9000ltr, enclosed, 2.35d x 2.7h o/a, single skin, cip, pump, flow meter
Stainless Tank 1027 9000ltr, enclosed, 2.35d x 2.7h o/a, single skin, cip, pump, flow meter
Stainless Tank 1028 4000ltr stainless tanks 1.7 x 2.5h
Stainless Tank 1029 4000ltr stainless tanks 1.7 x 2.5h
Stainless Tank 1030 sold 4000ltr stainless tanks 1.7 x 2.5h

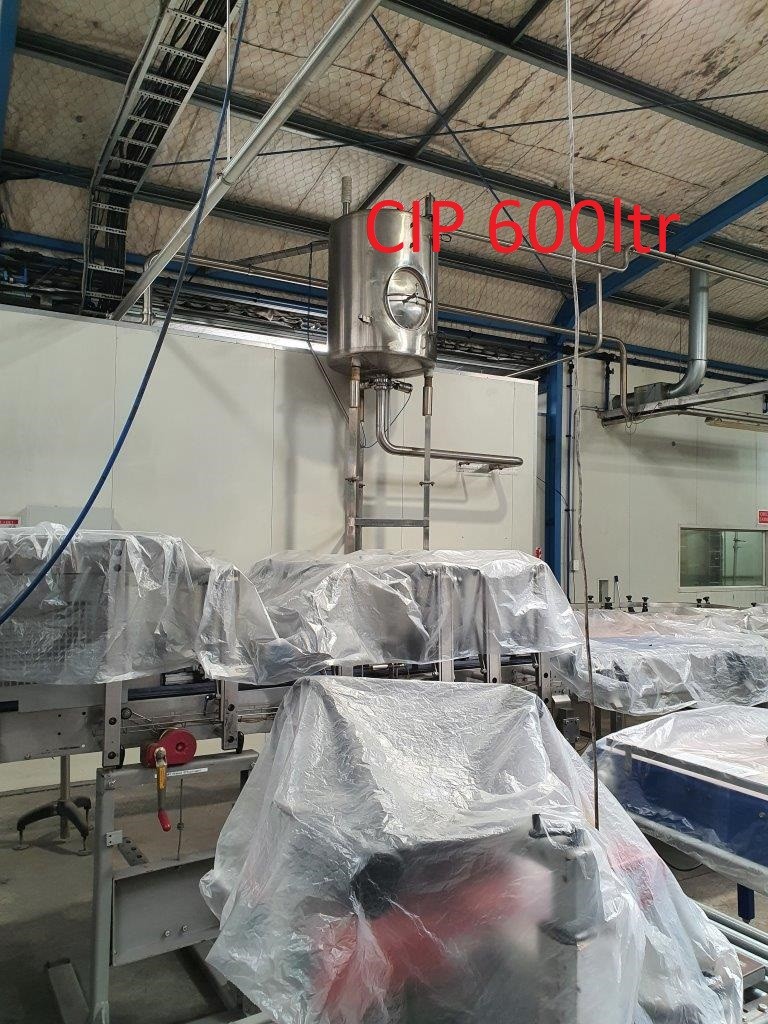

Stainless Tank 1031 Buffer tank 600ltr
UV Sterilising   1032 UV Sterilising

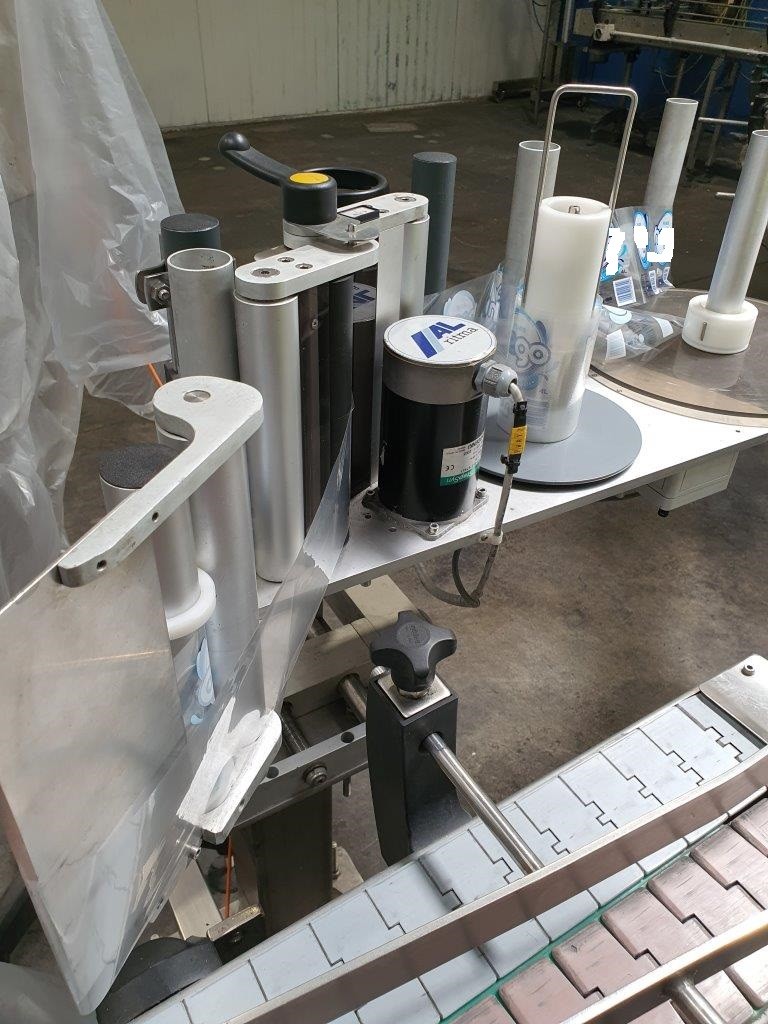

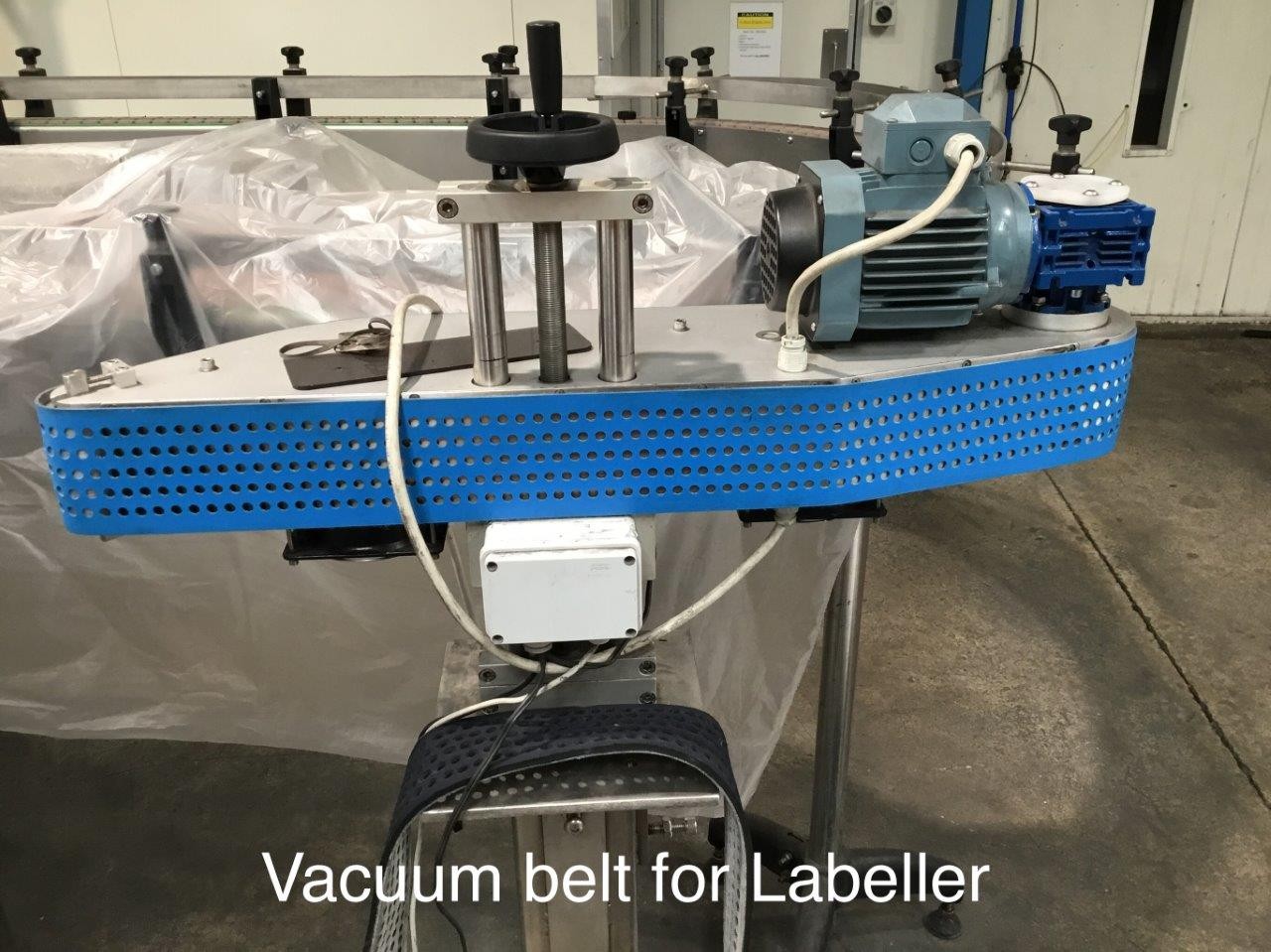

Vacuum Belt 1033 Vacuum belt labeller
    .
    .
    .
    .
    .

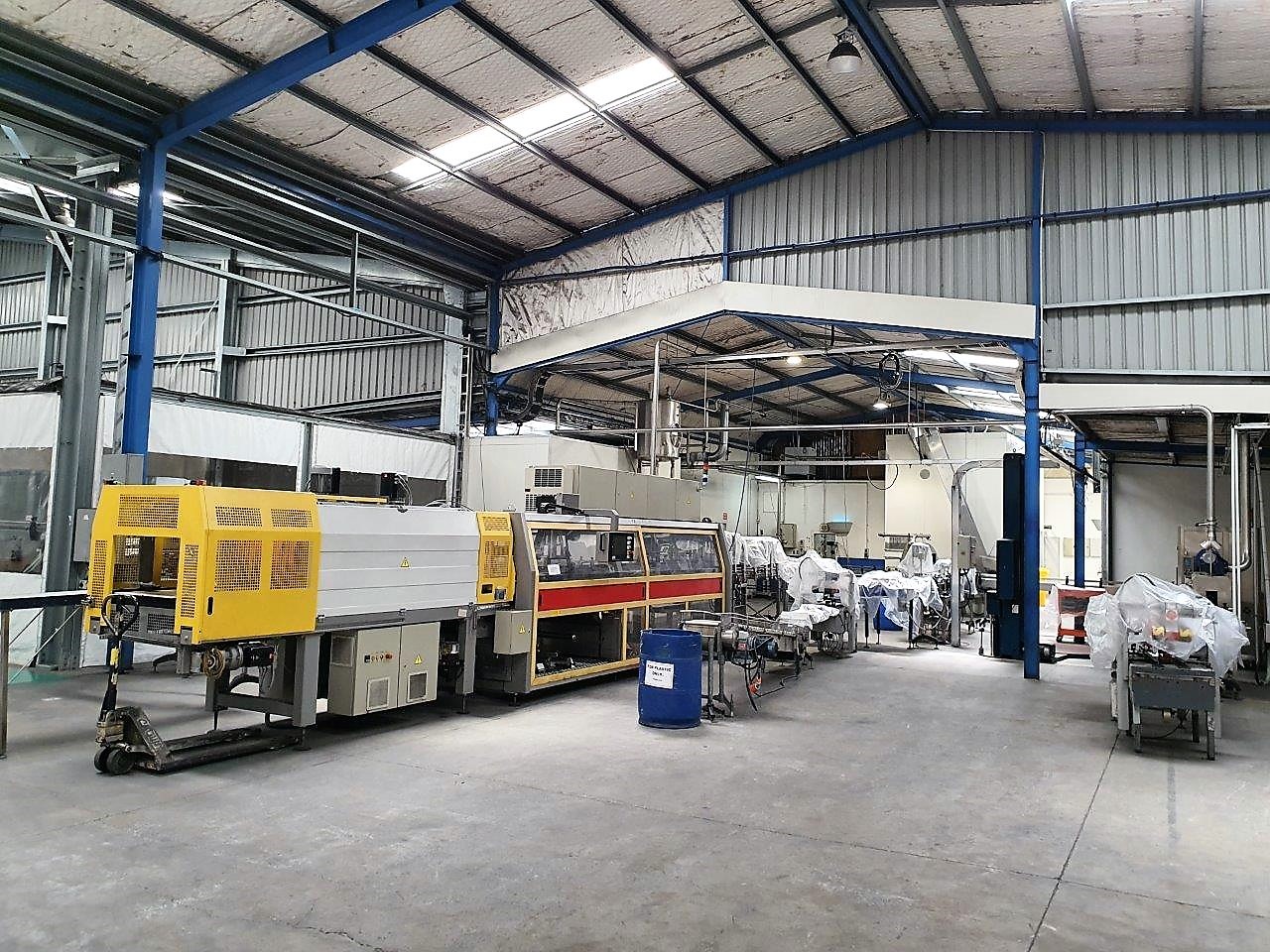

Current internal floor layout, as below:

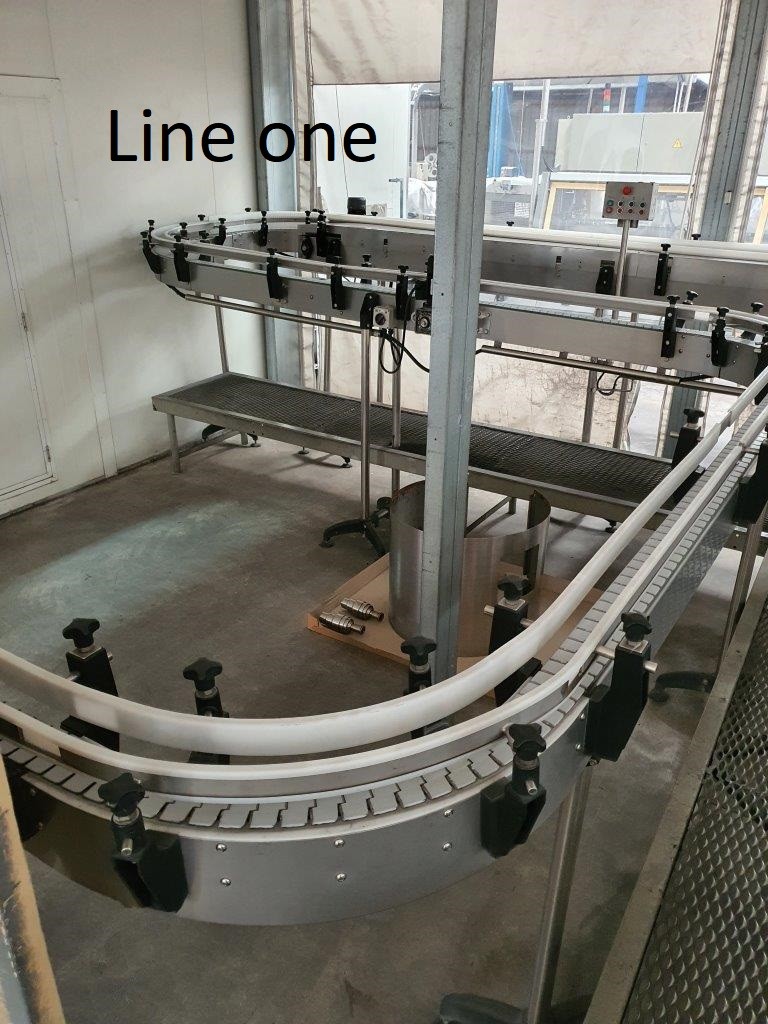

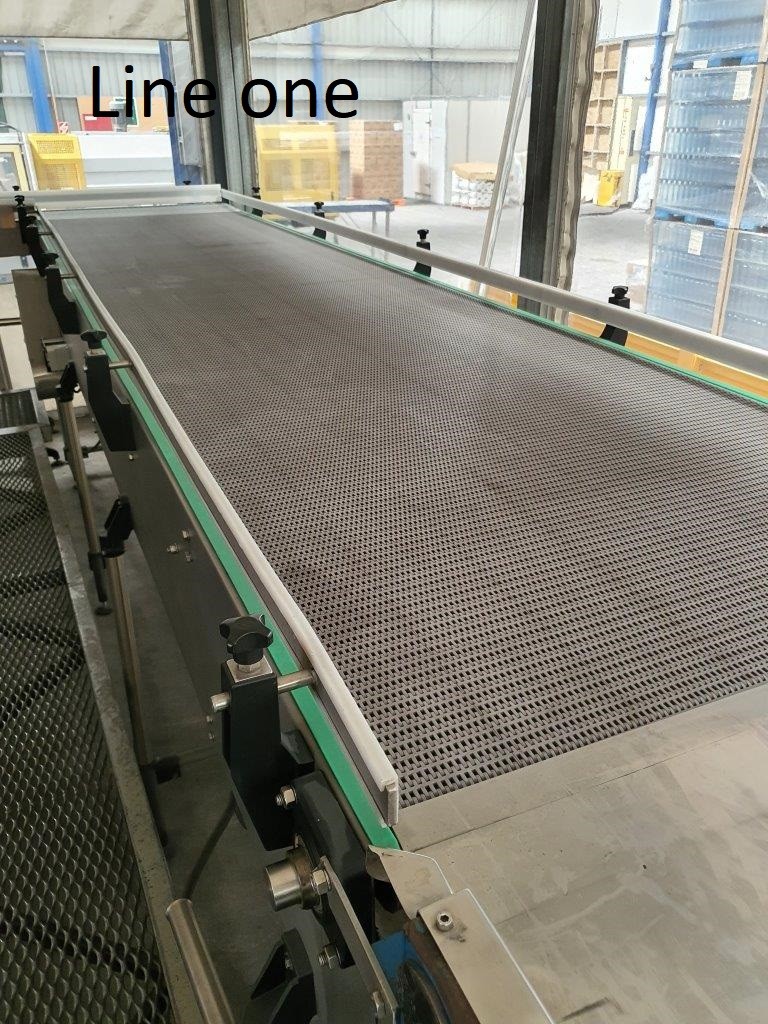

Line one

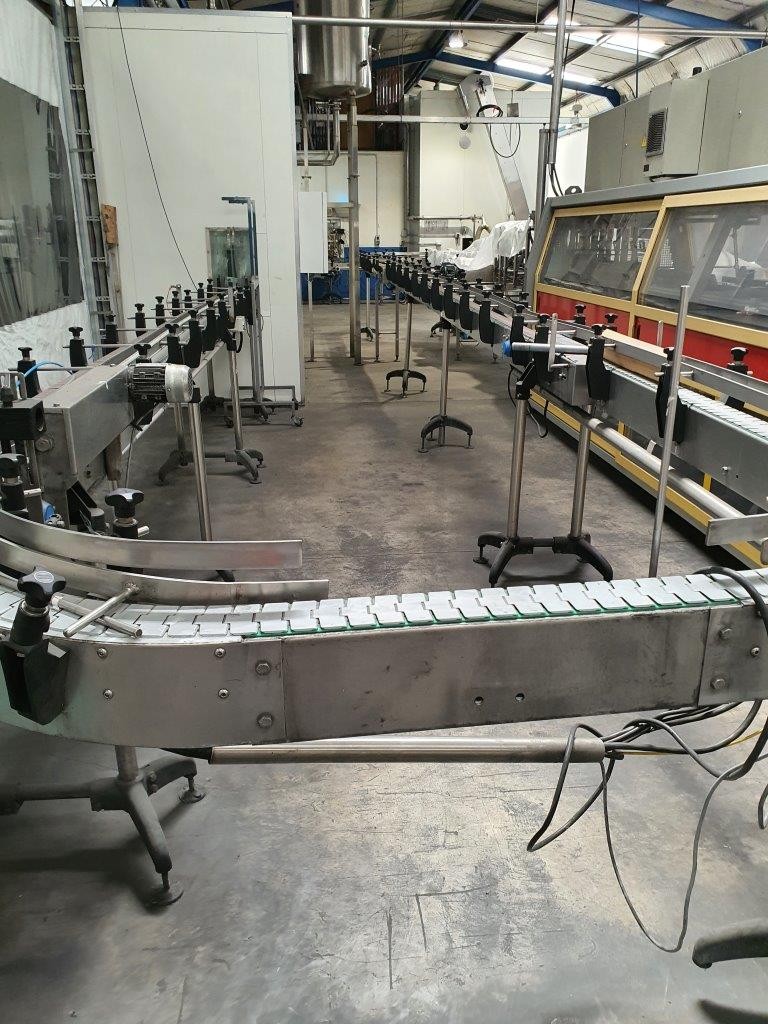

  • De Palletizer with associated discharge conveyor

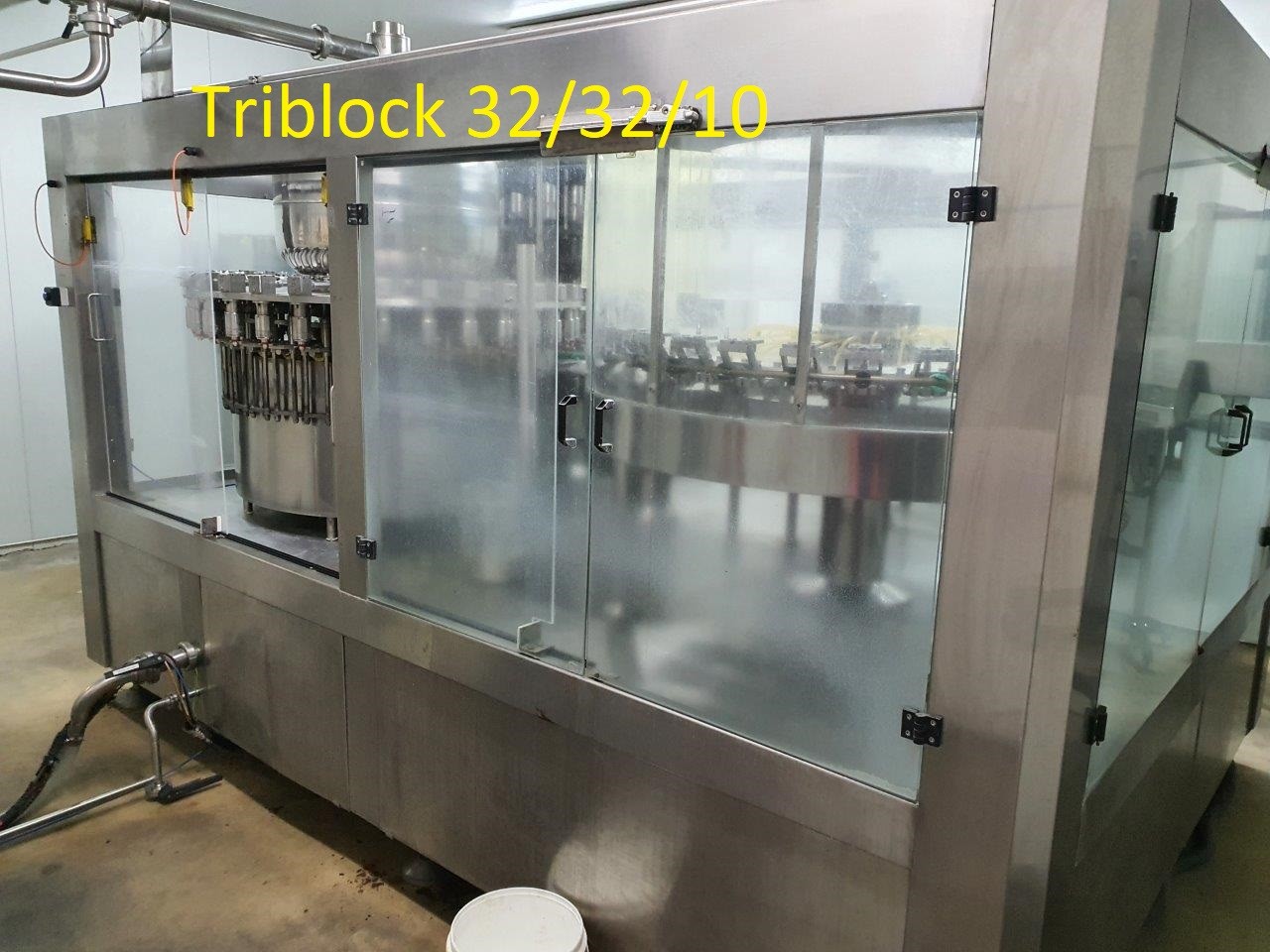

  • Triblock Rinser32, Filler32, Capper10  ( capper needs repair )
  • 170BPM 600ml
  • Controls
  • CIP
  • Set for 600ml PET bottles (capable 300ml- 1.25ltr )
  • Capping flats and sport caps
  • Footprint for the triblock is 3 x 3 located in a 7x7m room

Stainless Tanks

  • 1 x 2250ltr, 1.9d x 2h, open top vat with lids, single skin, cip, pump, mixer

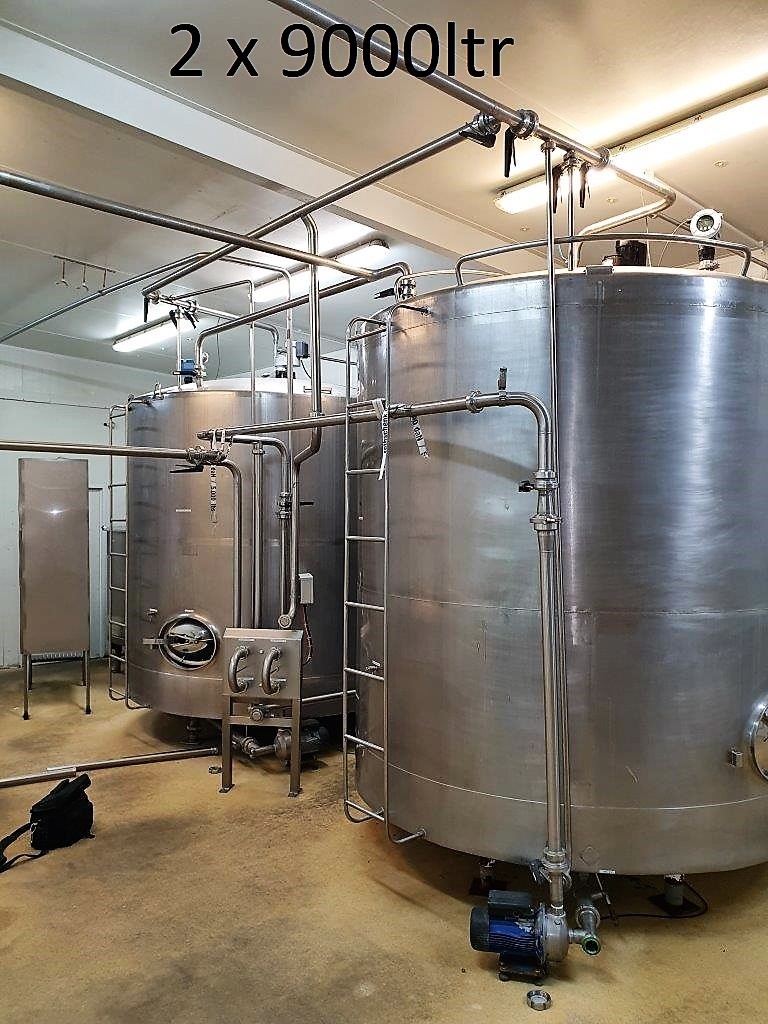

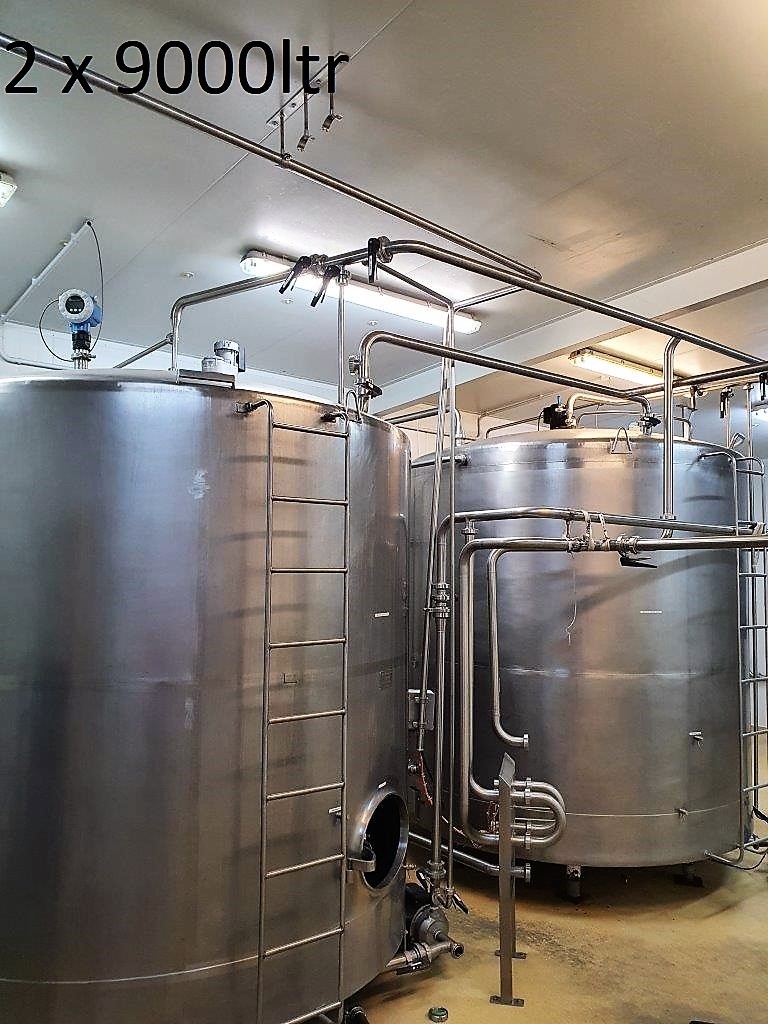

  • 2 x 9000ltr, enclosed, 2.35d x 2.7h o/a, single skin, cip, pump, flow meter

Line two

  • Hydraulic de palletizer with associated discharge conveyor
  • AVE rinser 24head

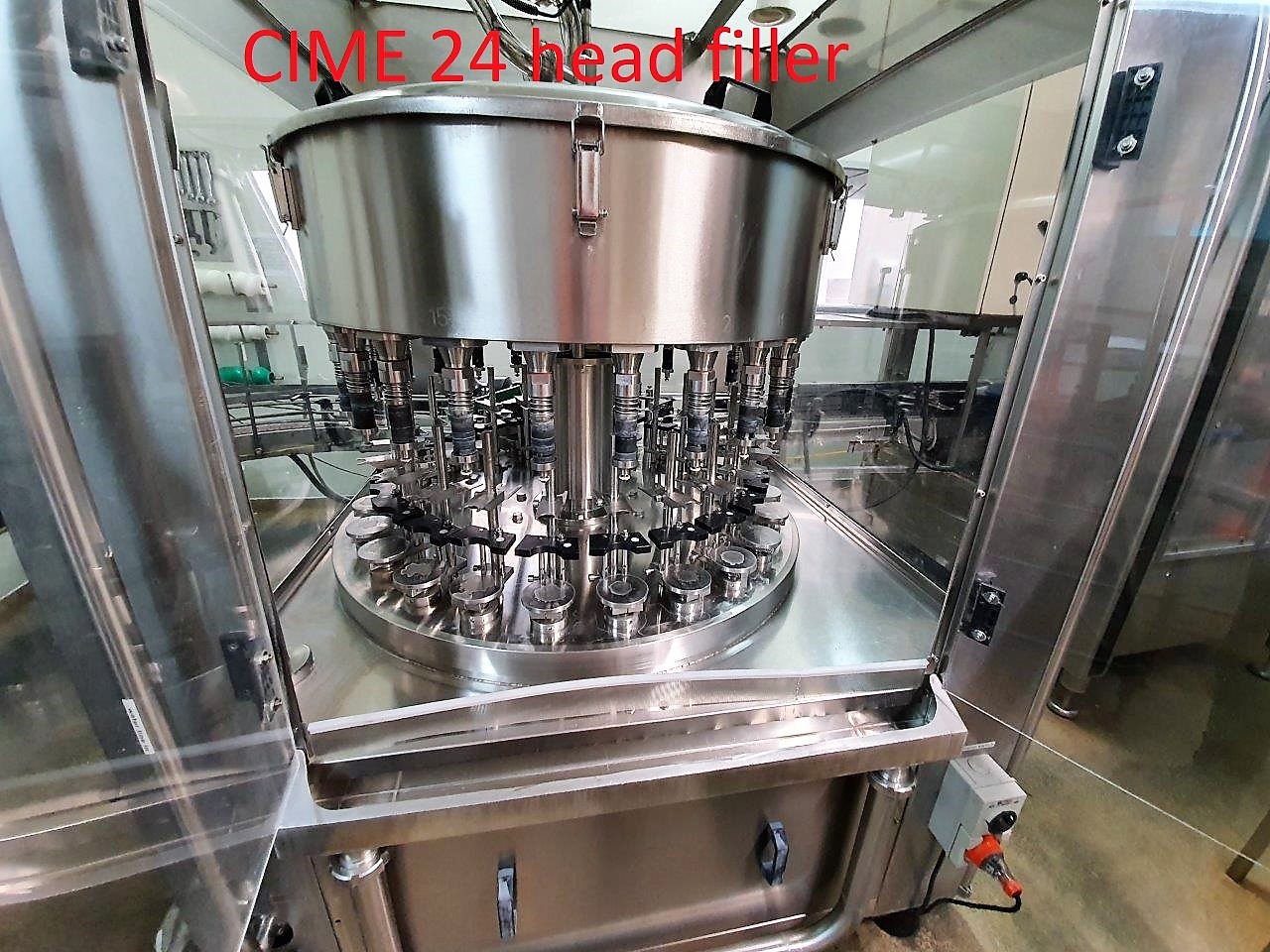

  • CIME filler 24head 110BPM PET 600ml
  • Change parts for 330, 500sq, 1.5sq, 420 ...

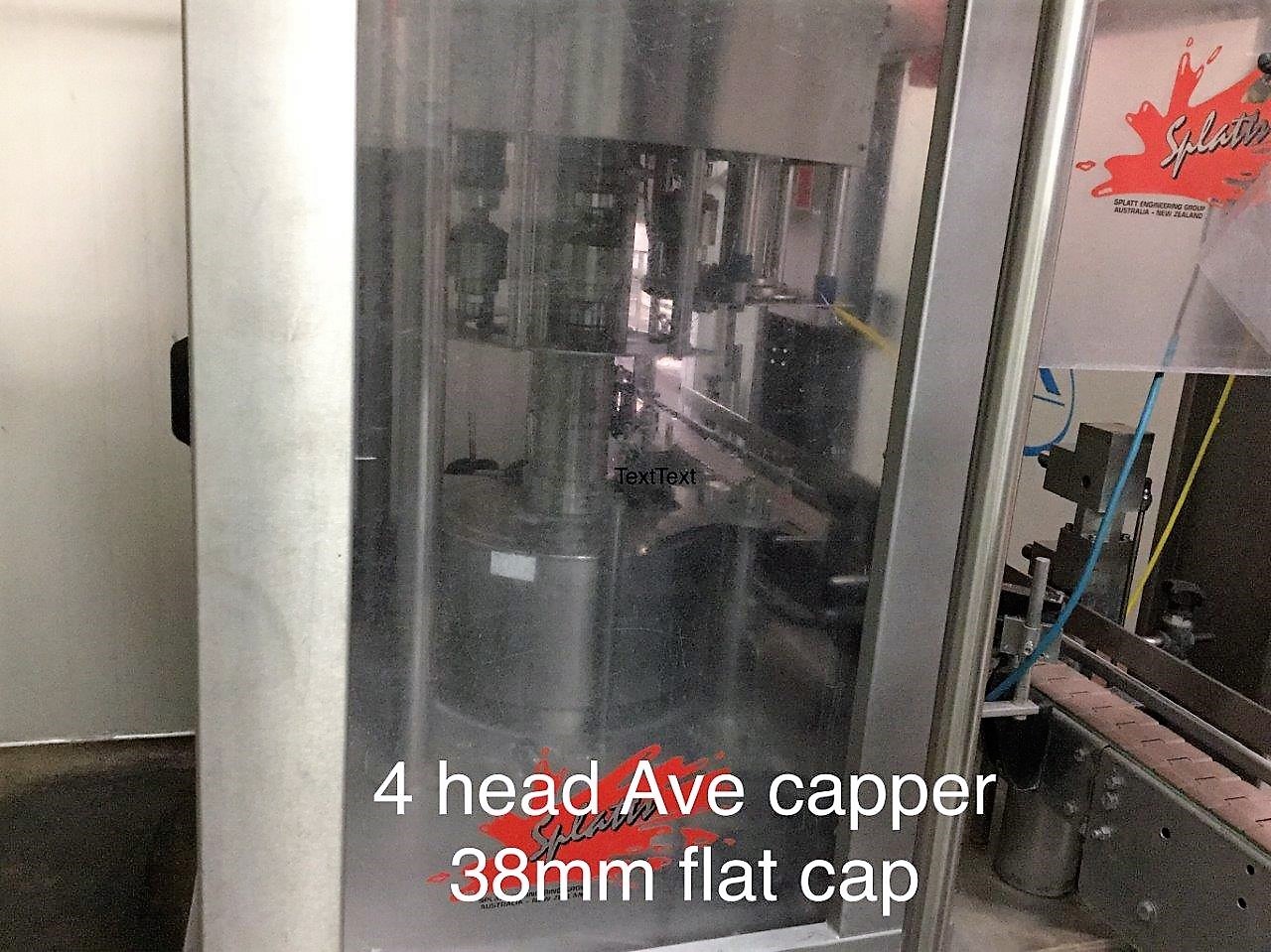

  • AVE capper 4head
  • Zalkin capper 4head
  • Flats and sports caps

Line three

  • Hydraulic De Palletizer with associated discharge conveyor
  • Rinser continuous, inverter Sutton group SGL4400GR  various size bottles

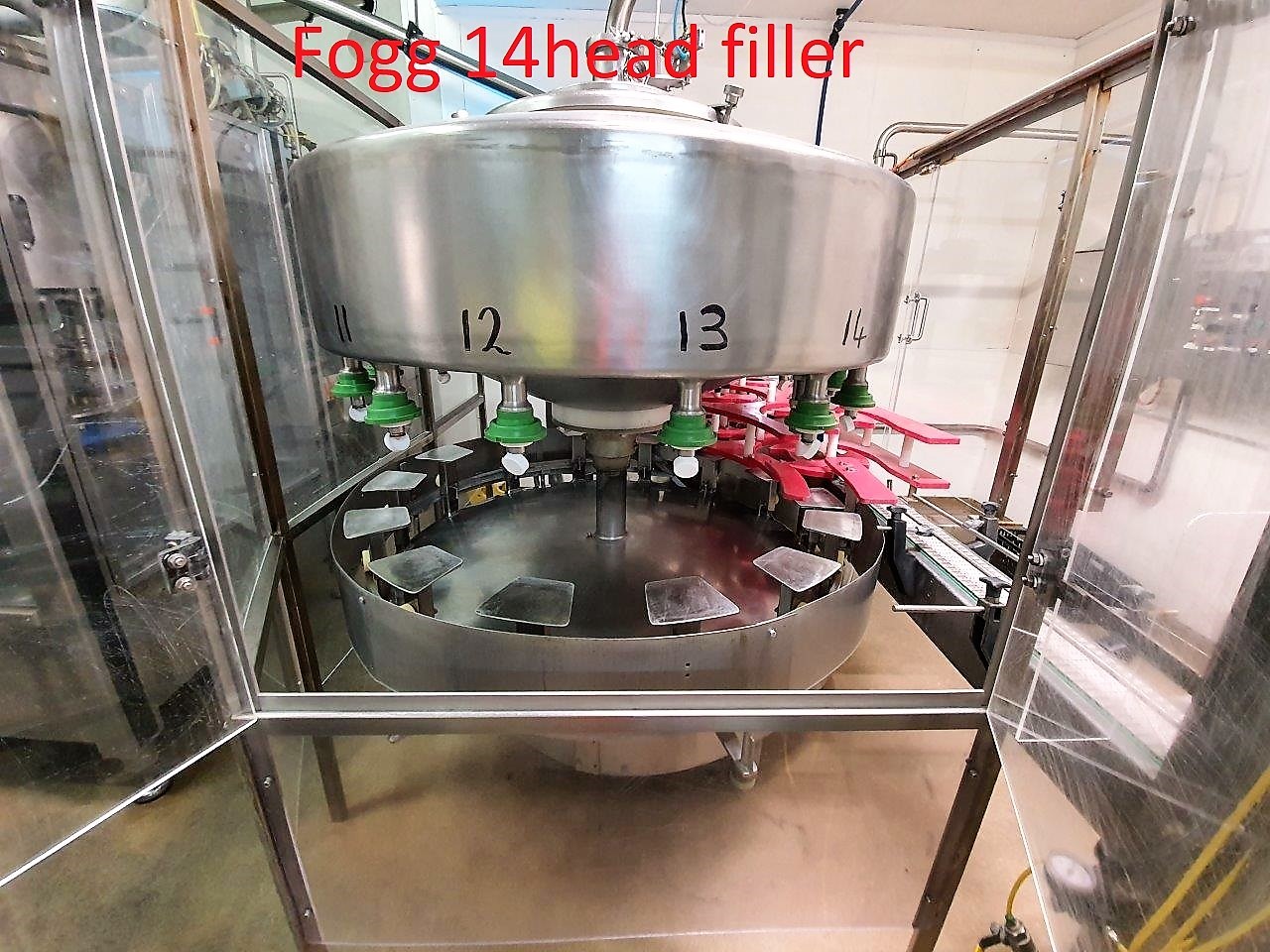

  • Filler 14head Fogg 4ltr PET  48BPM 4ltr +change parts
  • Manual inline filler 6head

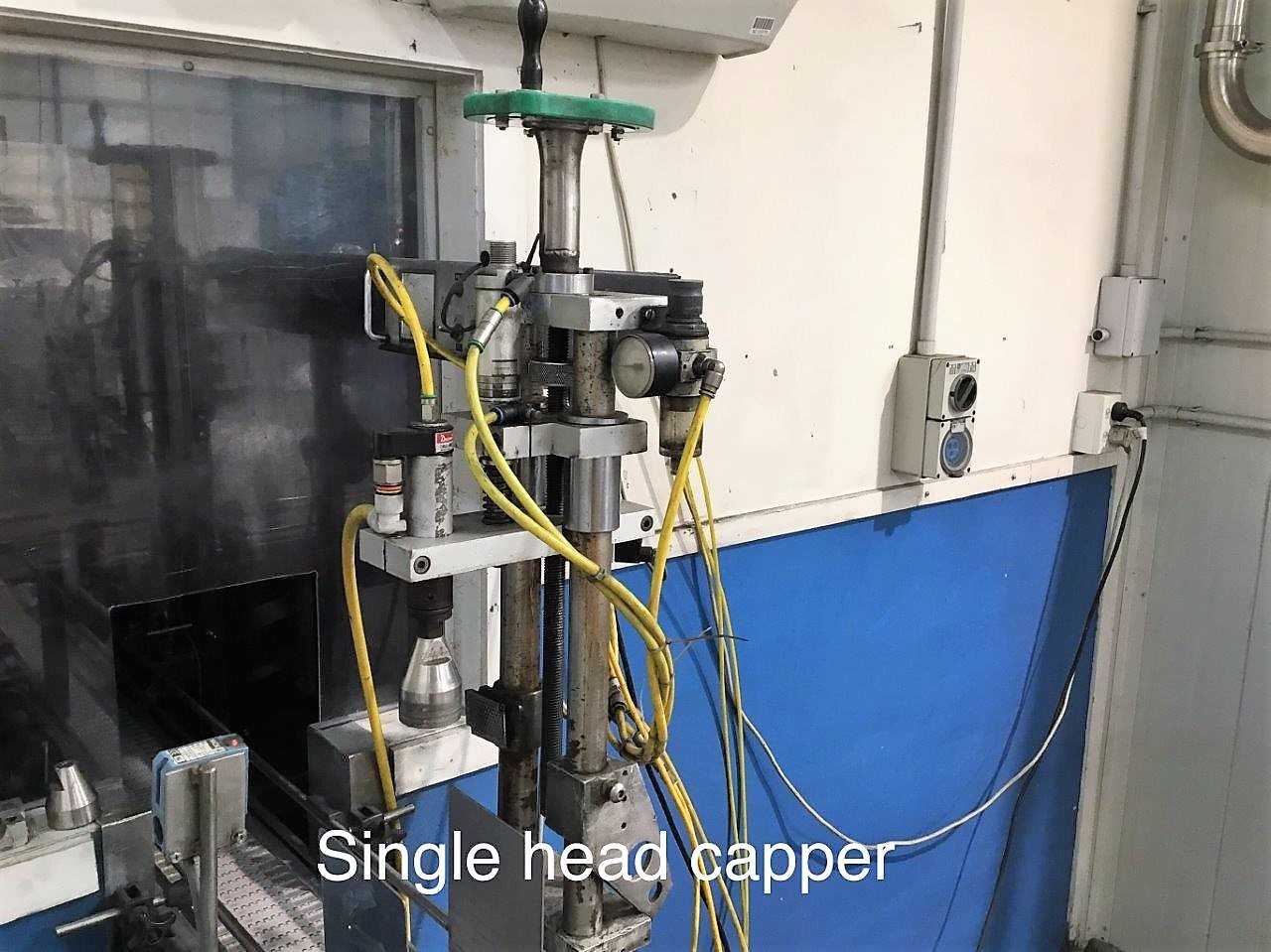

  • Single head capper

Packaging

  • Ozone tower
  • Packing SMI 300F, 2006, 180bpm, 600ml 24packs, 64pallets/10hours
  • SPC 150B Sleever, 2011.

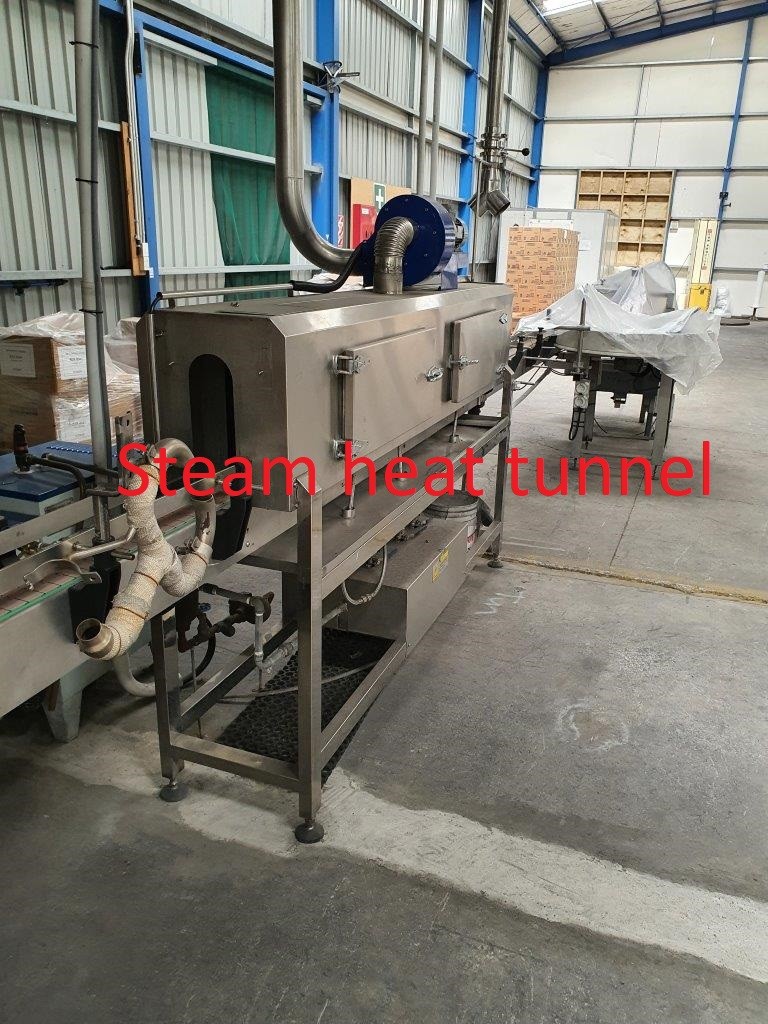

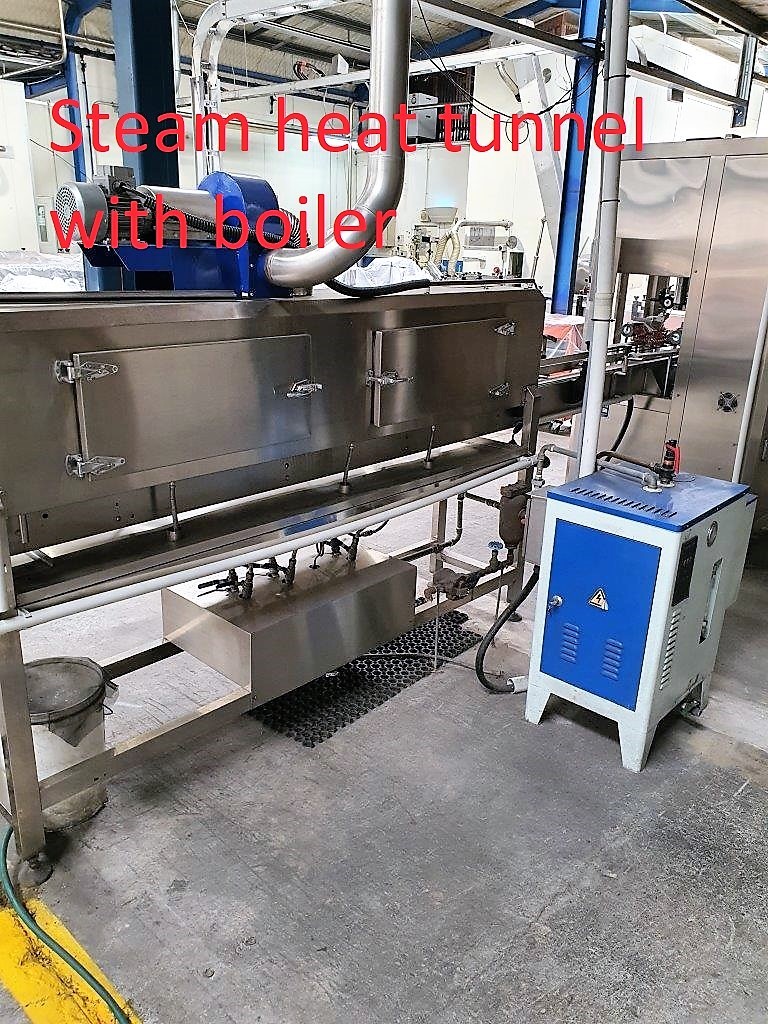

  • Steam heat tunnel with boiler

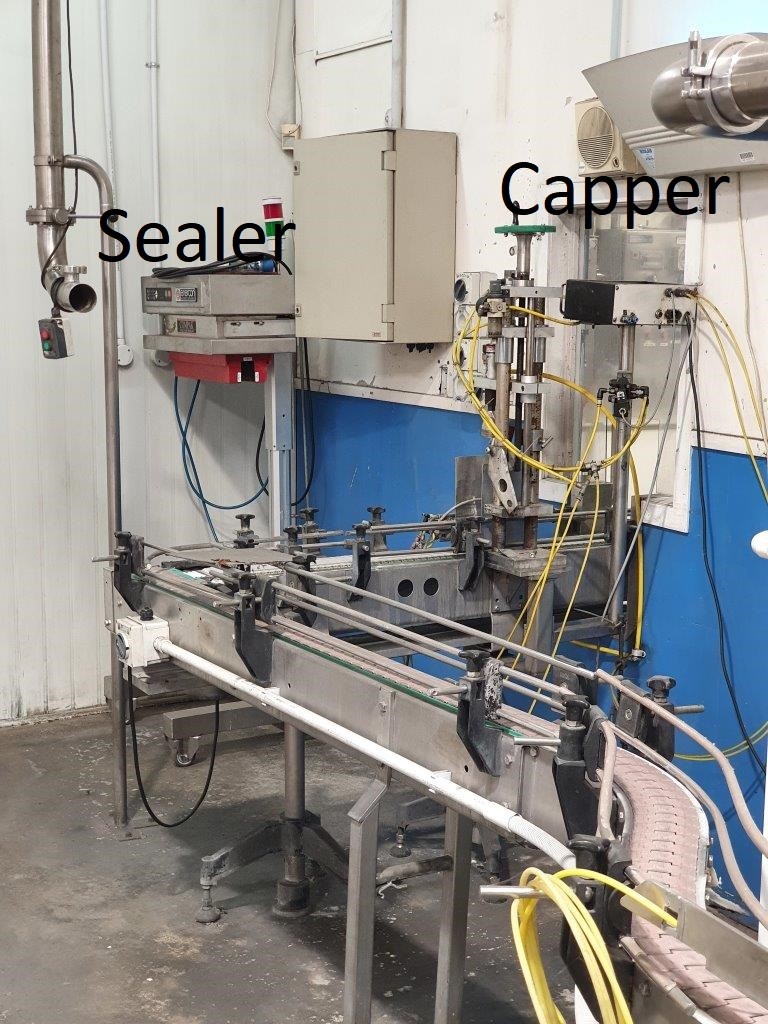

  • Enercon Induction sealer

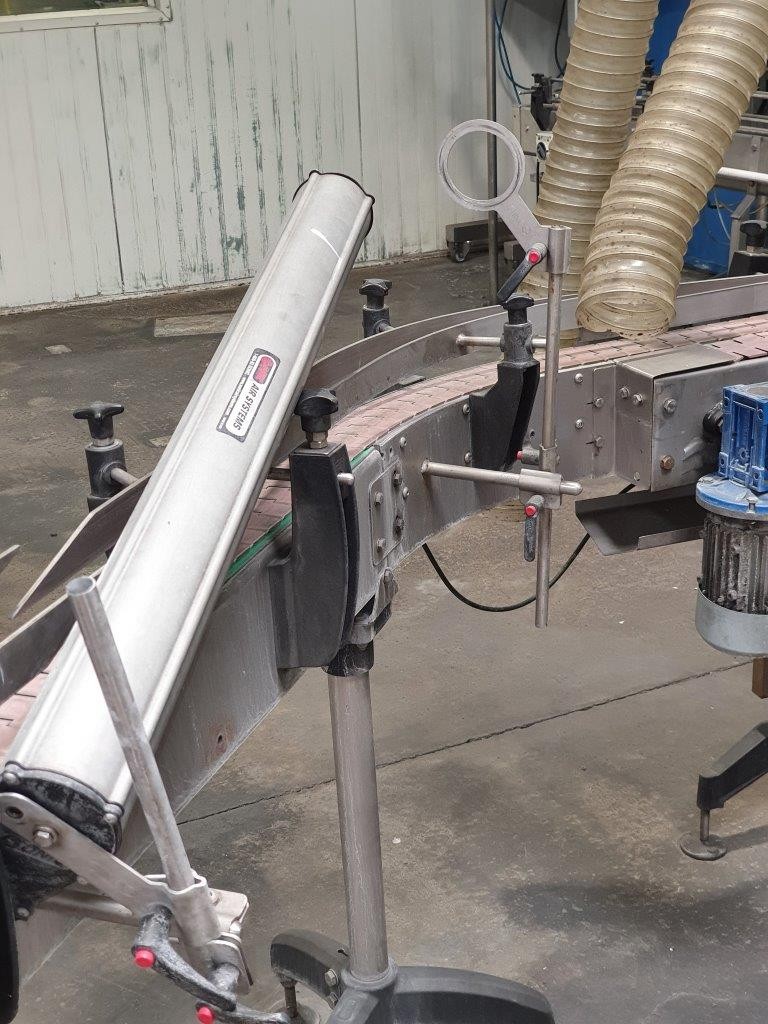

  • Air knives
  • UV Sterilising
  • Vacuum belt labeller
  • Hopper Elevator
  • Spares various & change parts
  • SS Pipe work

Additional

  • Insulation panels, doors, windows...
  • SBR Glass 12 head rinser 1994 ( part missing )
  • Glycol refrigeration ( not currently in use, however was in good working order )

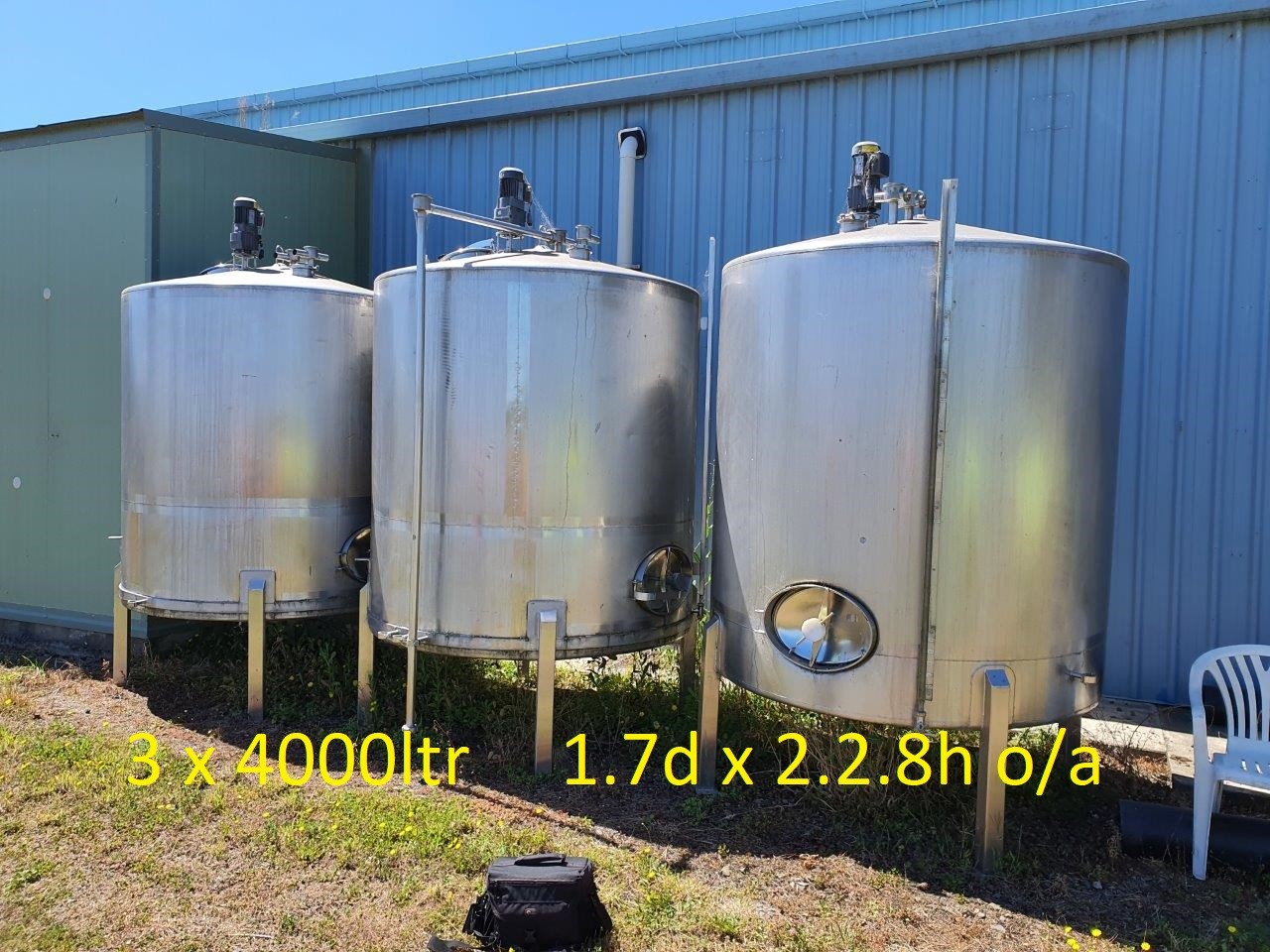

  • 3 x 4000ltr stainless tanks 1.7 x 2.5h

Notes

  • The current footprint in situ for the above inventory is 30mtr x 32mtr
Photo image # Guide

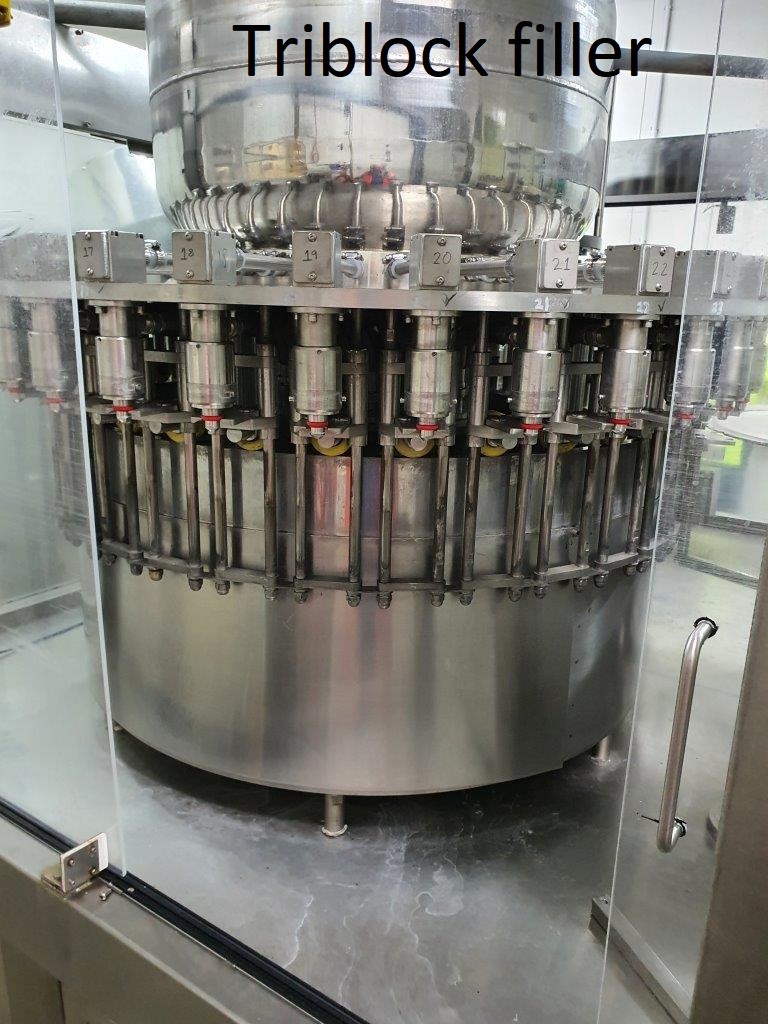

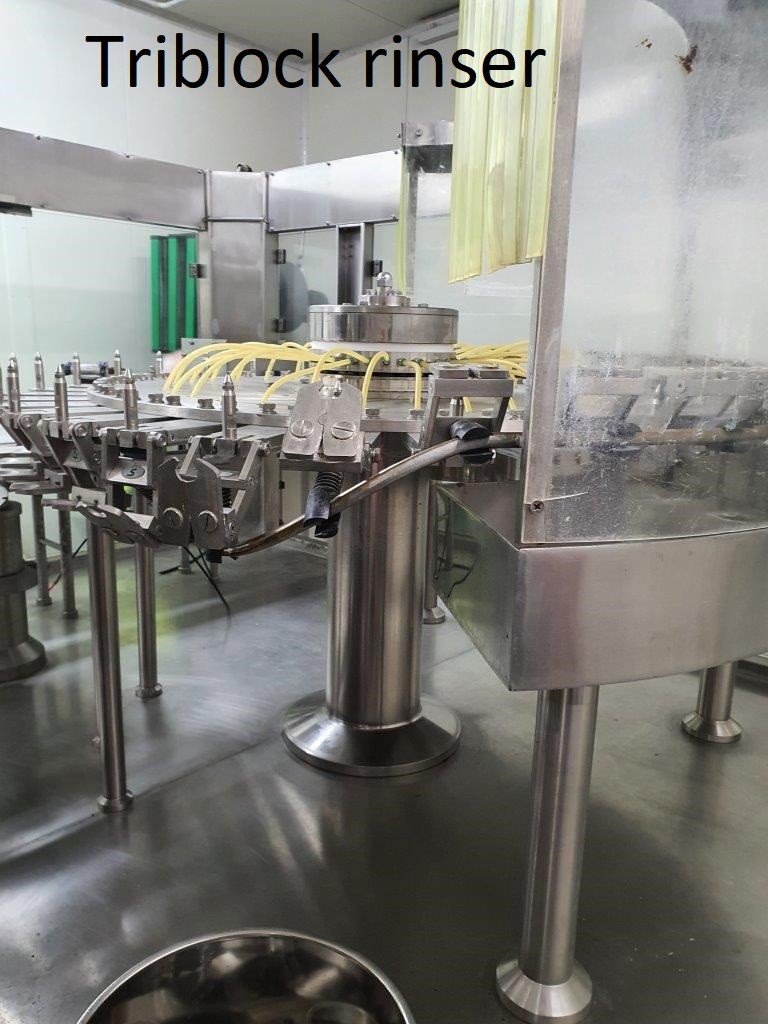

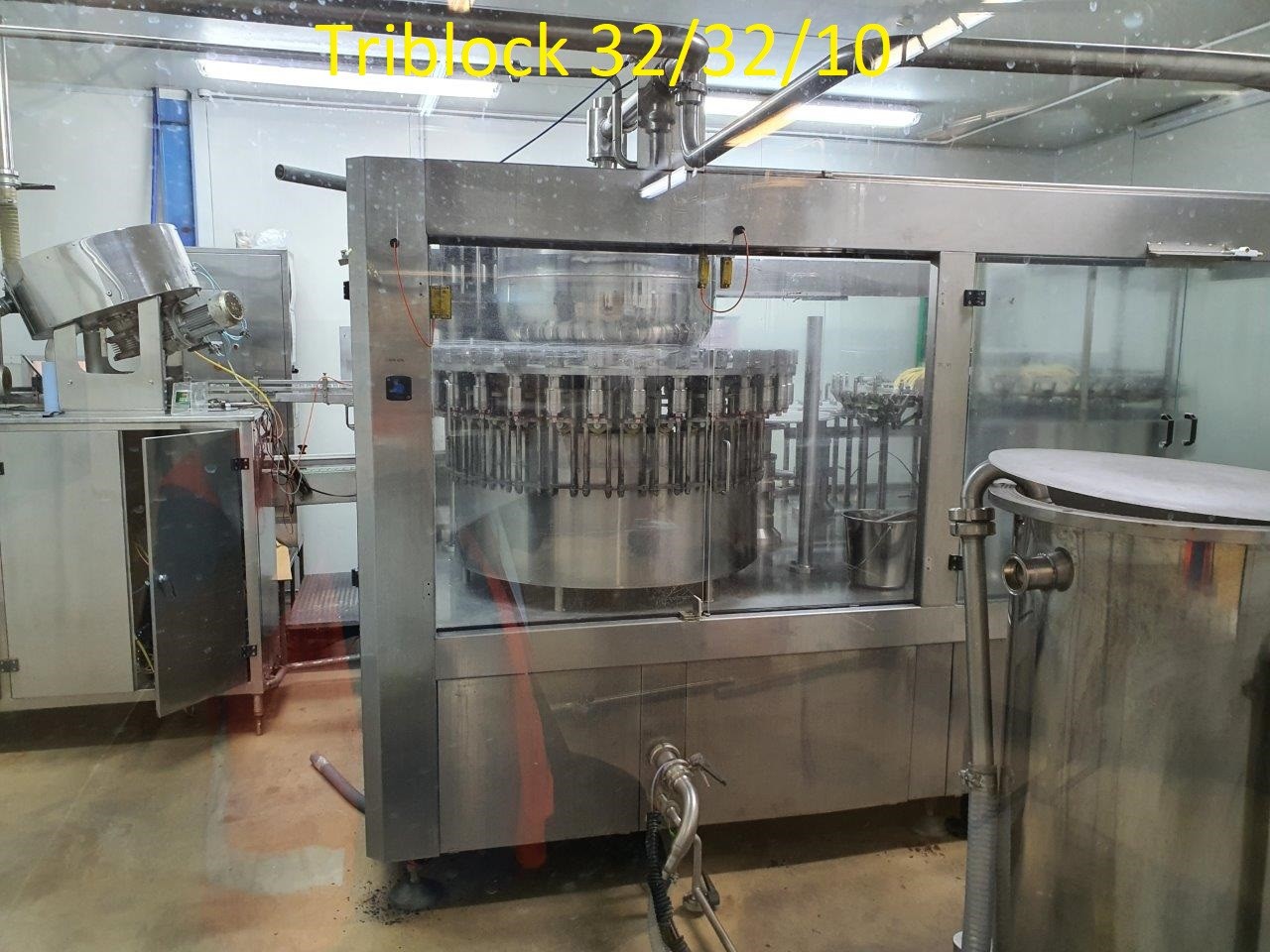

1 to 11 Triblock filler 32/32/10
12 to 16 Stainless Tanks

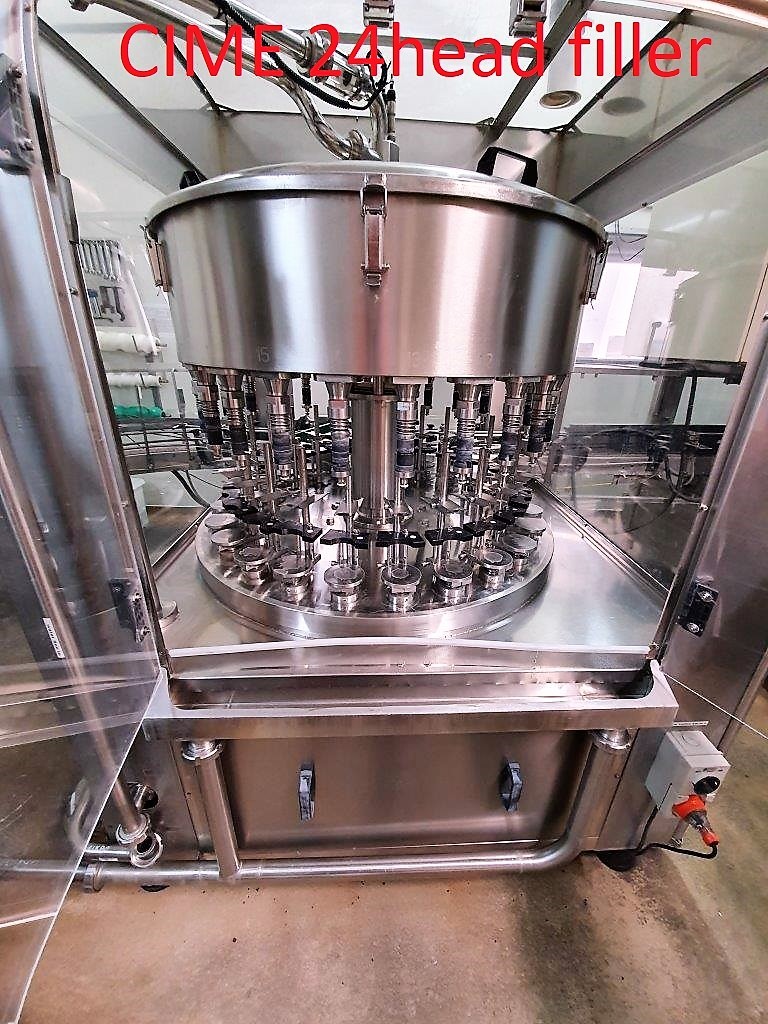

17 to 22 CIME 24head filler

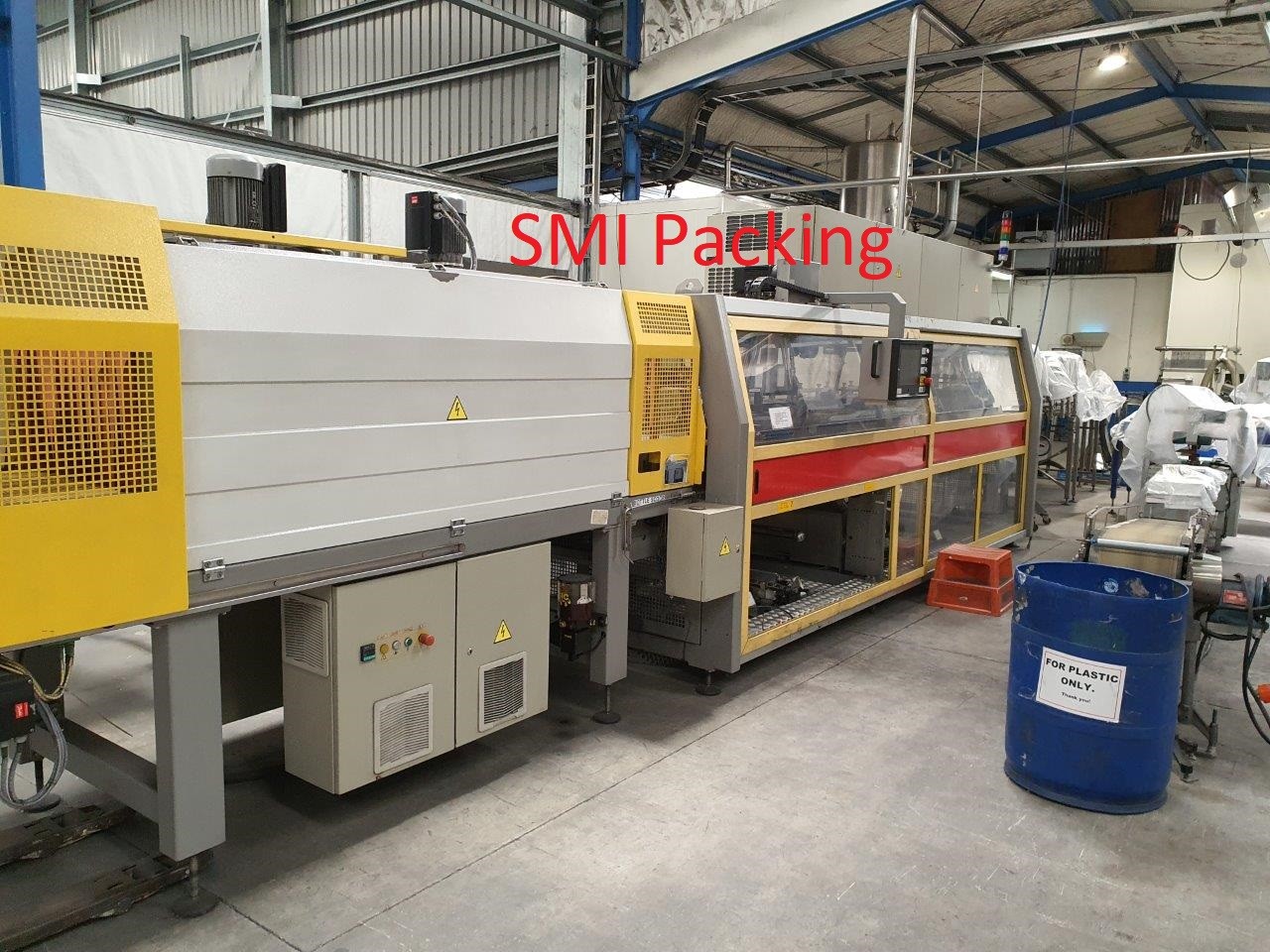

23 & 24 SMI Packing
25 to 28 Fogg 14head filler
29 & 30  De Palletizers
31 & 32  Rinsers
33 & 34 Ozone
35 Manual 6 head filling
36 to 39  Steam heat tunnel
40 to 48 Cappers
49 to 51 Sleever
55 Sealer
59 Glycol refrigeration not currently in use
64 Hopper Elevator
69 Rinser  not currently in use
70 Single head Capper
and other
