No. 1333 1 x 11,200ltr Red Wine Tank New

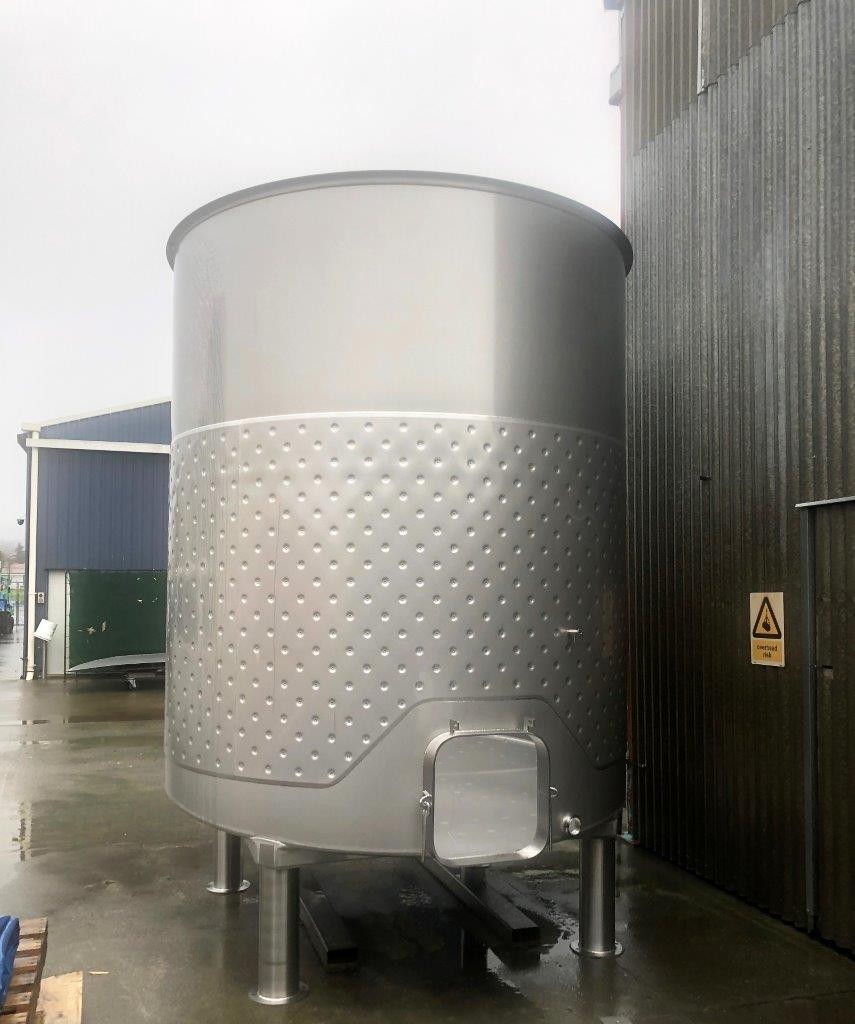

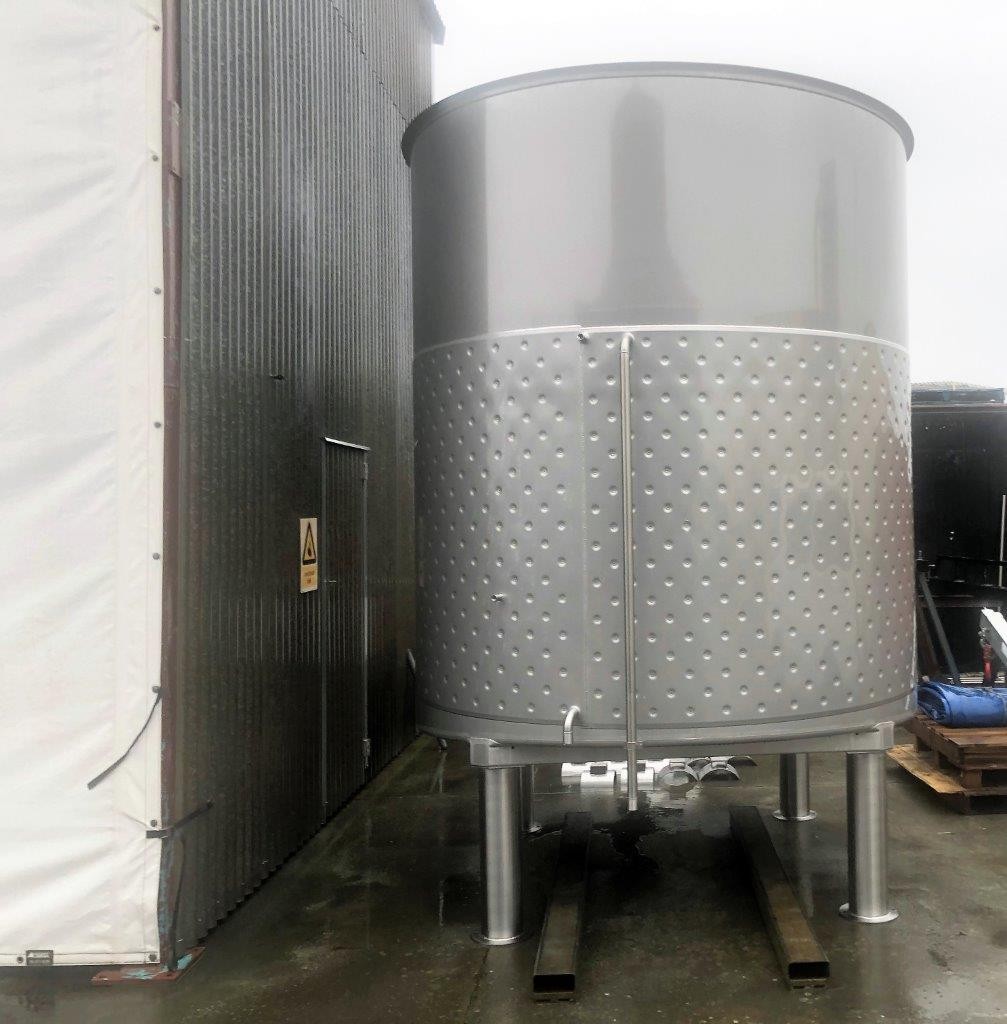

11200ltr stainless open top Wine tank new unused with drawings
Hawkes Bay NZ ,
Contact
- Ed ODonnell
- ed@ibl.co.nz
- 0274 442 944
Download drawing below
- 2mm SS304 Tank wall thickness.
- 5-degree Flat sloping bottom.
- Cooling Jacket. 1500mm wide
- Cooling connections, 1 " BSP Socket.
- 1/2" Thermowell.
- 3”male part drain connection
- Outward Opening Manway 500mm x 500mm top hinge
- Lockable Sample Valve
- Legs, SCH 10, 150NB SS Pipe (Polished),
- Interior, Exterior Finish 2B.
- 40x40x6 EA Top Strengthening ring.
- Foot Plate 6mm thick
- 15NB BSP Bleed Socket (Vent)
File downloads
Tank Drawing
