No. 1330 SOLD 2400ltr 'Turn-Key' Micro Brewery NZ
(20BBL) 2400ltr gas fired brewery 2016/17 SOLD
Great opportunity, (located North Island New Zealand)
For Sale

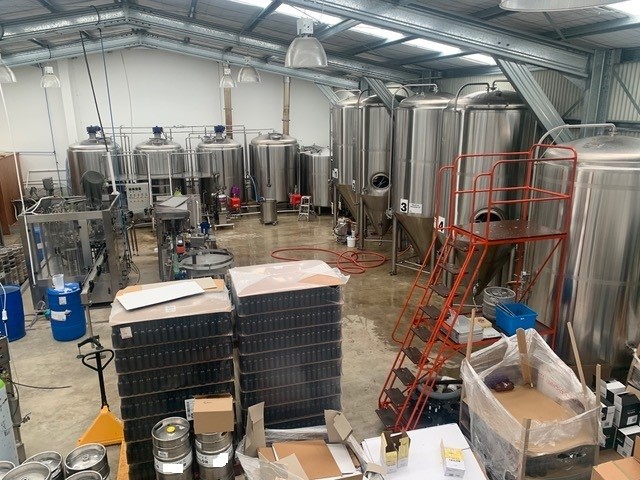

As new micro-brewery, set up for two brews per day.

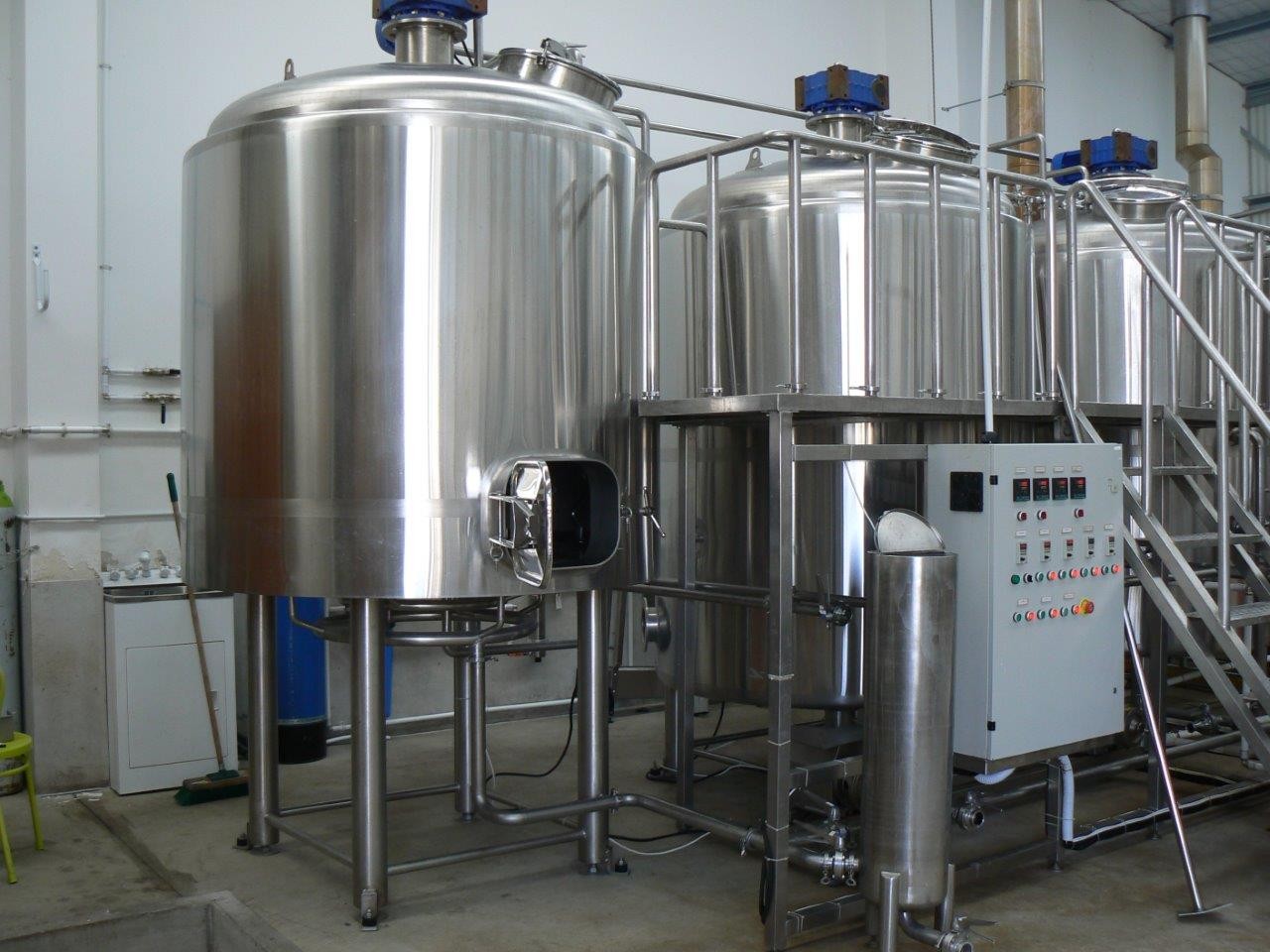

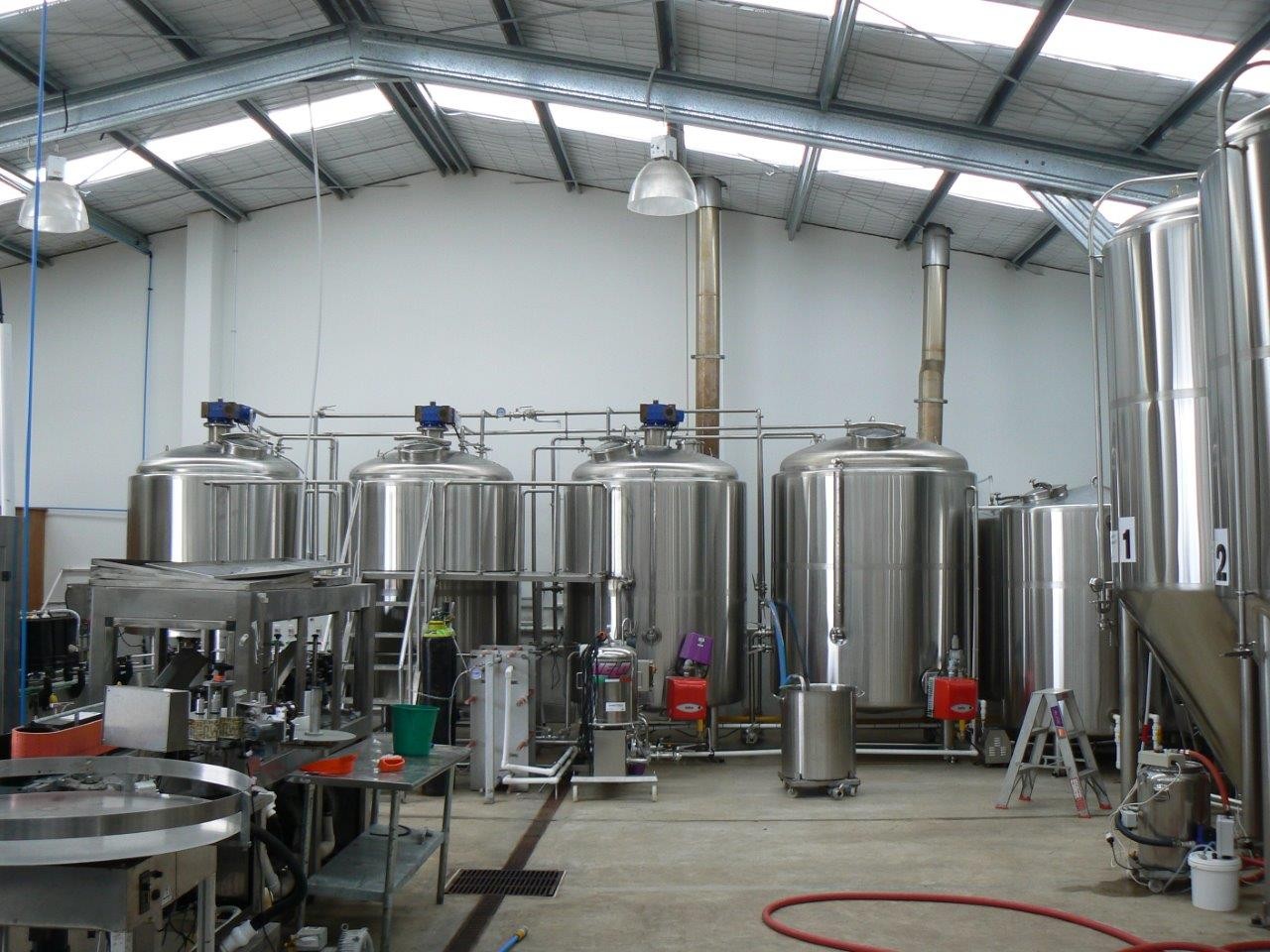

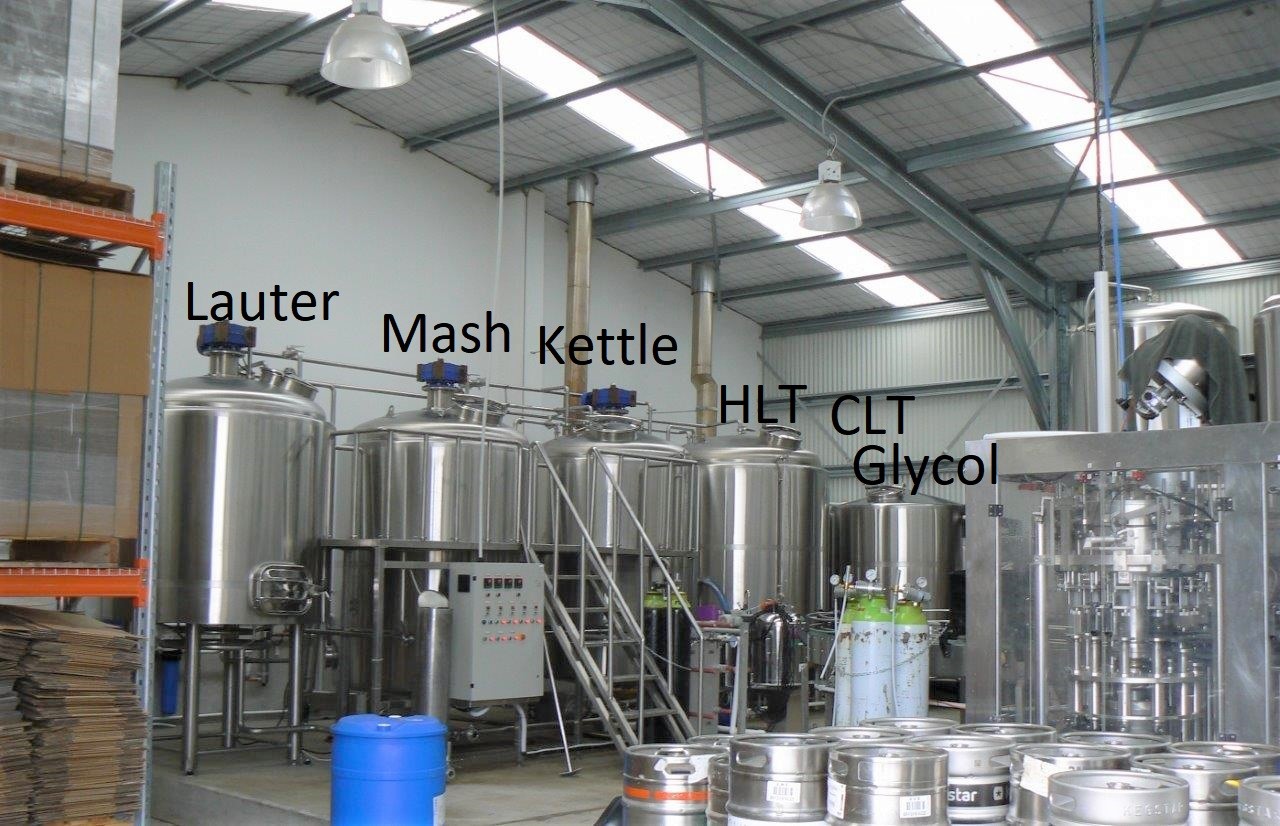

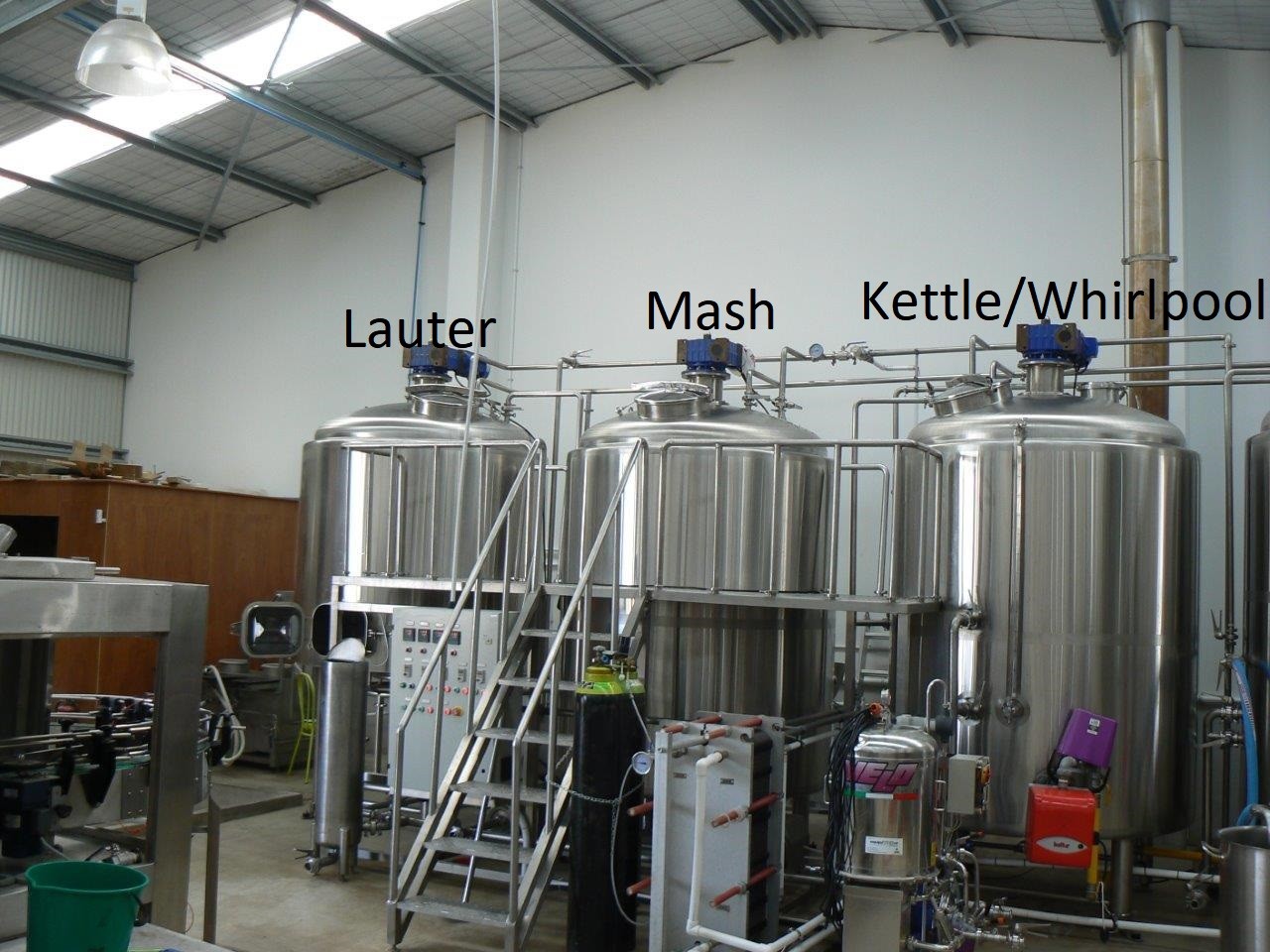

Includes Mash Tun, Lauter, Kettle/Whirlpool, HLT, CLT, Glycol,

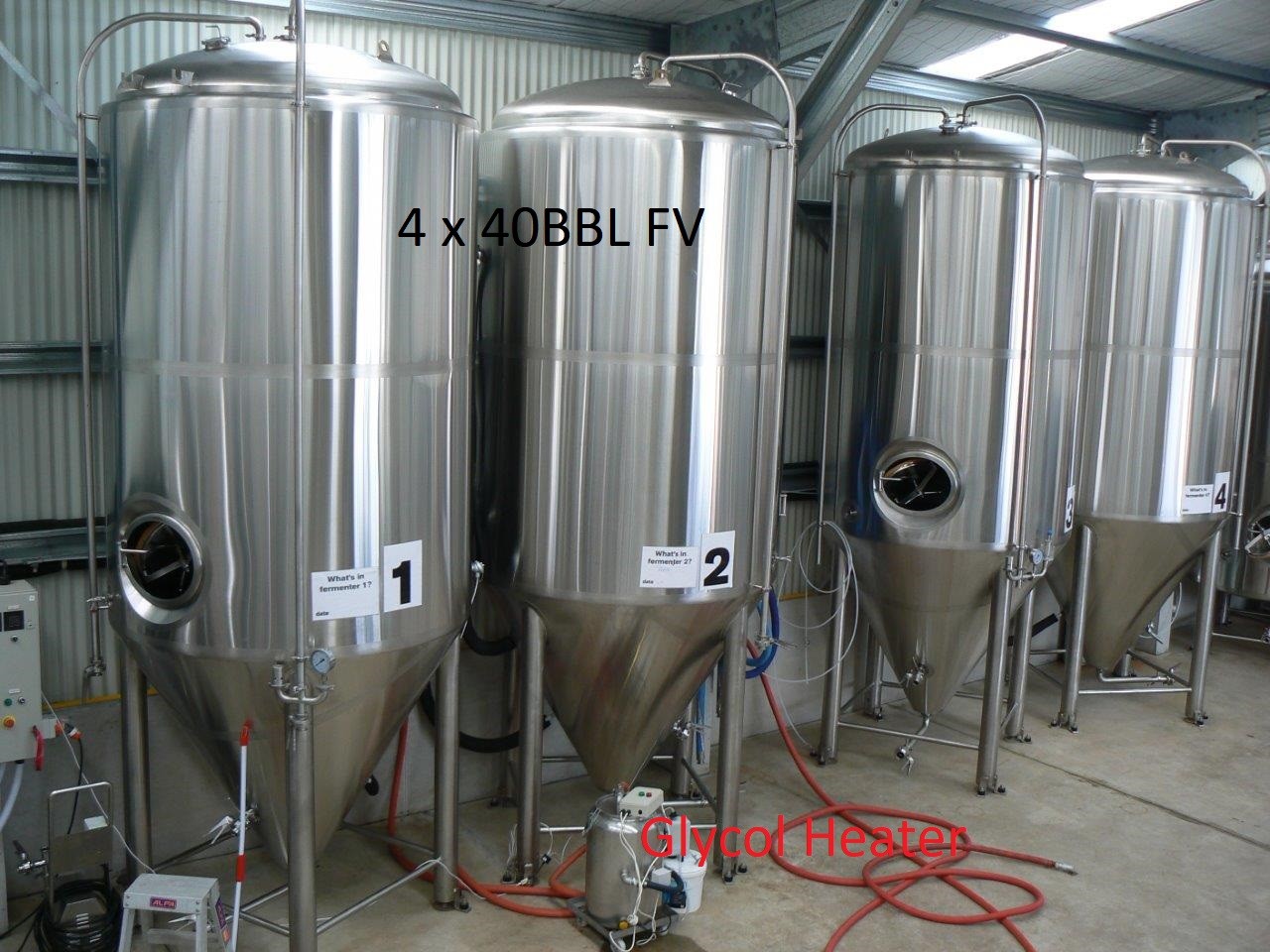

4 x Fermenters/Unitanks (40BBL) 4800ltr working, 6000ltr gross vol.
1 x BBT (40BBL) 4800ltr working, 5800ltr gross vol.
Numerous other equipment such as: keg washer, keg filler, lab meters,
gas burners, filters, DE filter, CIP, glycol heater,
compressor, mill, forklift, chiller, heat exchanger, brewer’s platform,
mobile stairs, pumps, regulators, kegs, glycol refrigeration,
all spares, cellar door, office etc

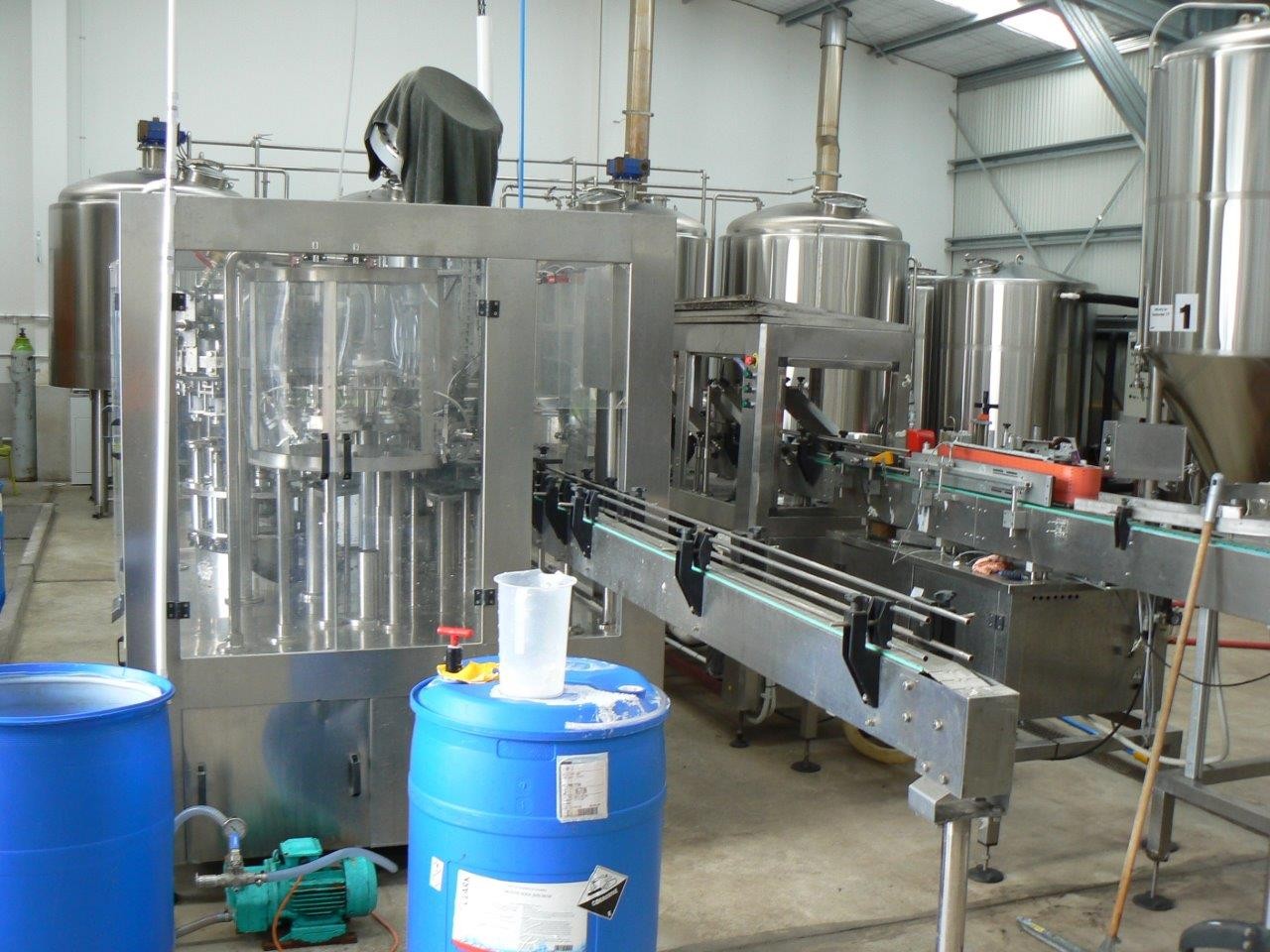

Bottling: completely refurbished bottling machine rinser-14, filler-12, crowner-4,
dryer, labeller, conveyors, sorting table, 2000bph, change parts for 330ml and 500ml.
Dismantle and Packing
The dimensions of tanks etc are such that can be packed into 40ft containers for
relocation as required (approx. estimate for bulk of plant above is 5 x 40ft containers)
- The plant is connected and operational in excellent condition.
- It is available either for sale & relocation, or purchase on site and take over lease.
- Brewer/Engineer is available to discuss technical info, inspections welcome by appointment.
Contact
Industrial Brokers Ltd
Ed O’Donnell
NZ Cell +64 (0) 274 442 944
ed@ibl.co.nz
Terms and Conditions
- Plant and Equipment is offered on an “as is, where is” basis.
- No warranties or guarantees are offered.
- Highest or any offer will not necessarily be accepted.
- Drawings/documentation available where/if possible.
- Substantial inventory part offers may be considered.
- Sale and Purchase Agreement applies to all sales.
- Inspection is welcome by appointment, contact Industrial Brokers Ltd.
- Dismantle and Packing is at the Purchaser’s expense unless otherwise agreed.
- Site visits PPE as required, high vis, boots, COVID19 compliance.
Brief inventory ..........(more detailed specifications & documentation available on request)
Brewhouse,FV, BBT, fabricated by Tiantai http://www.cnbrewery.com/

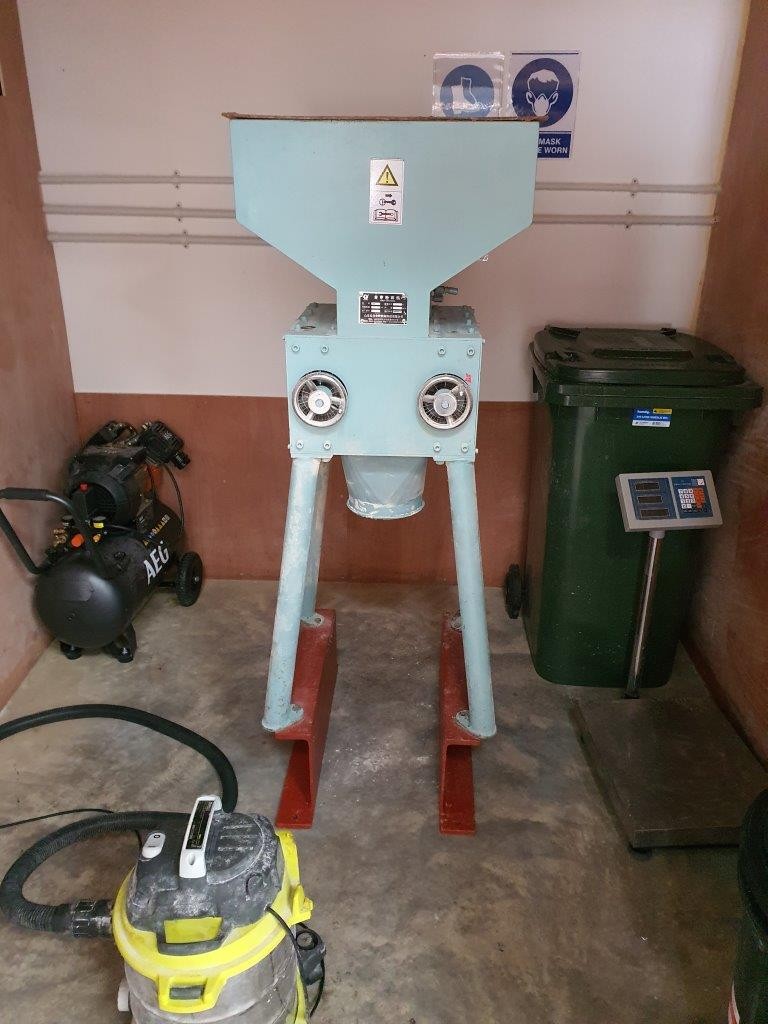

| Mill | Grain Mill 500 - 800kg/hr |

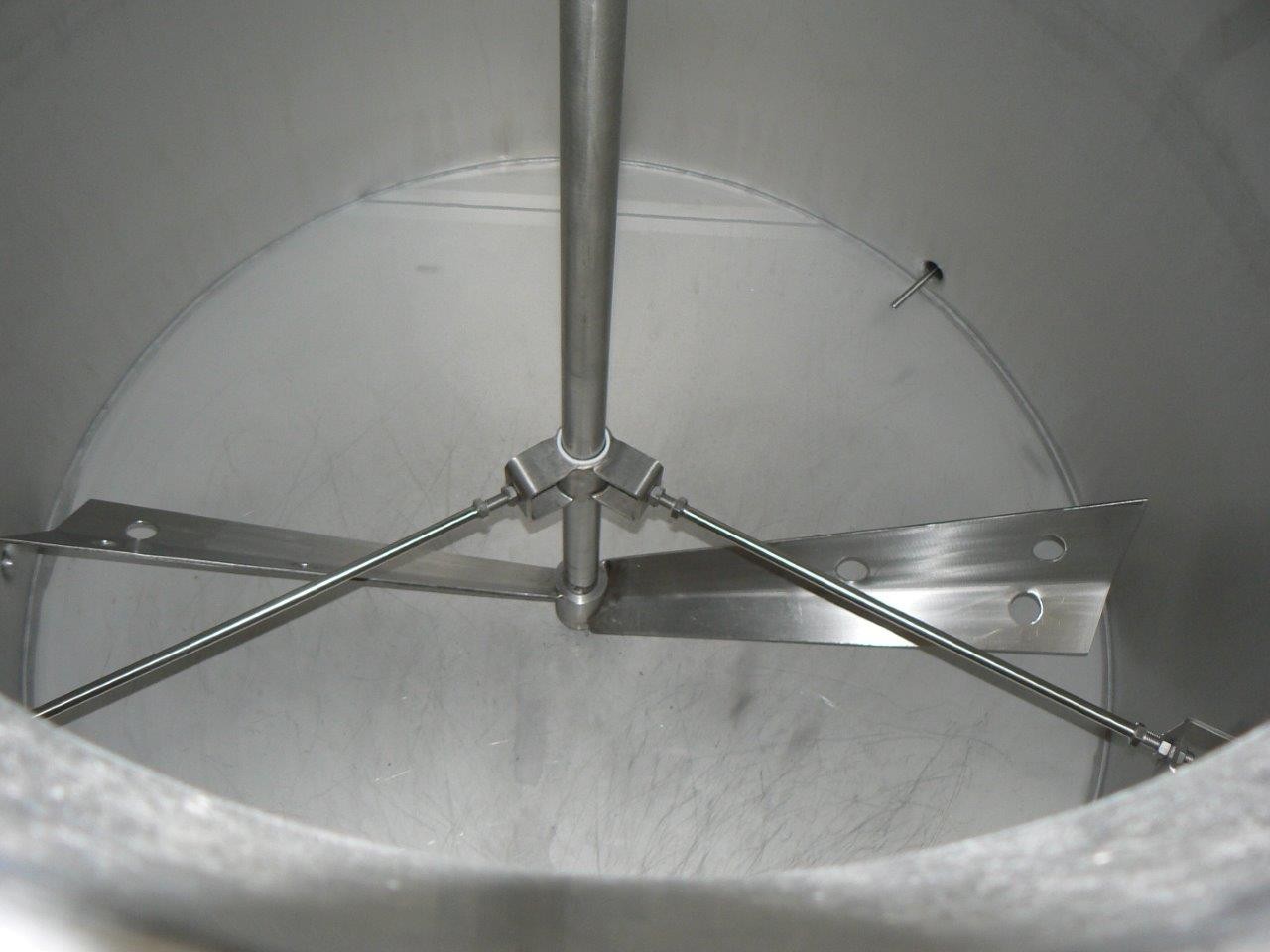

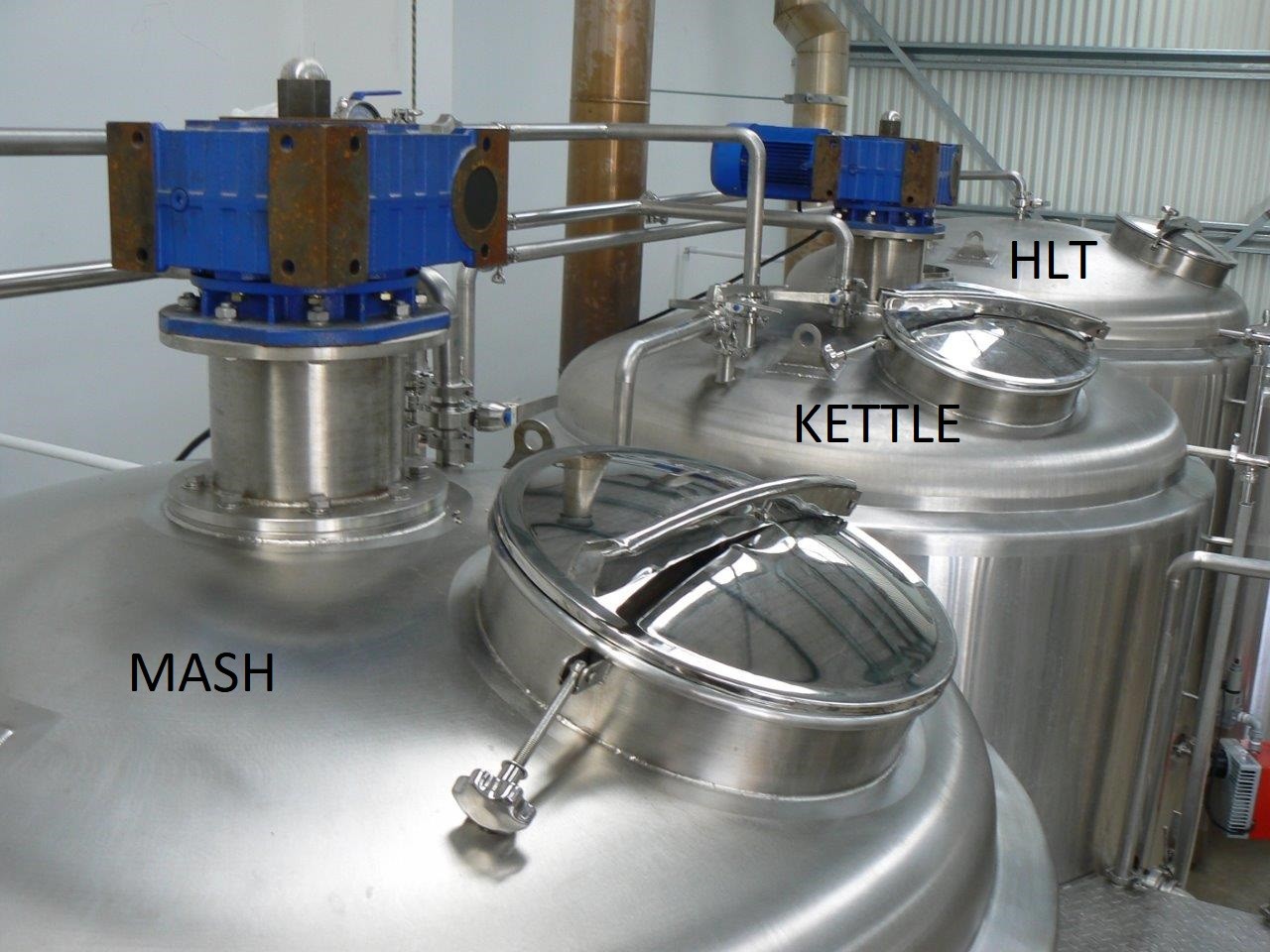

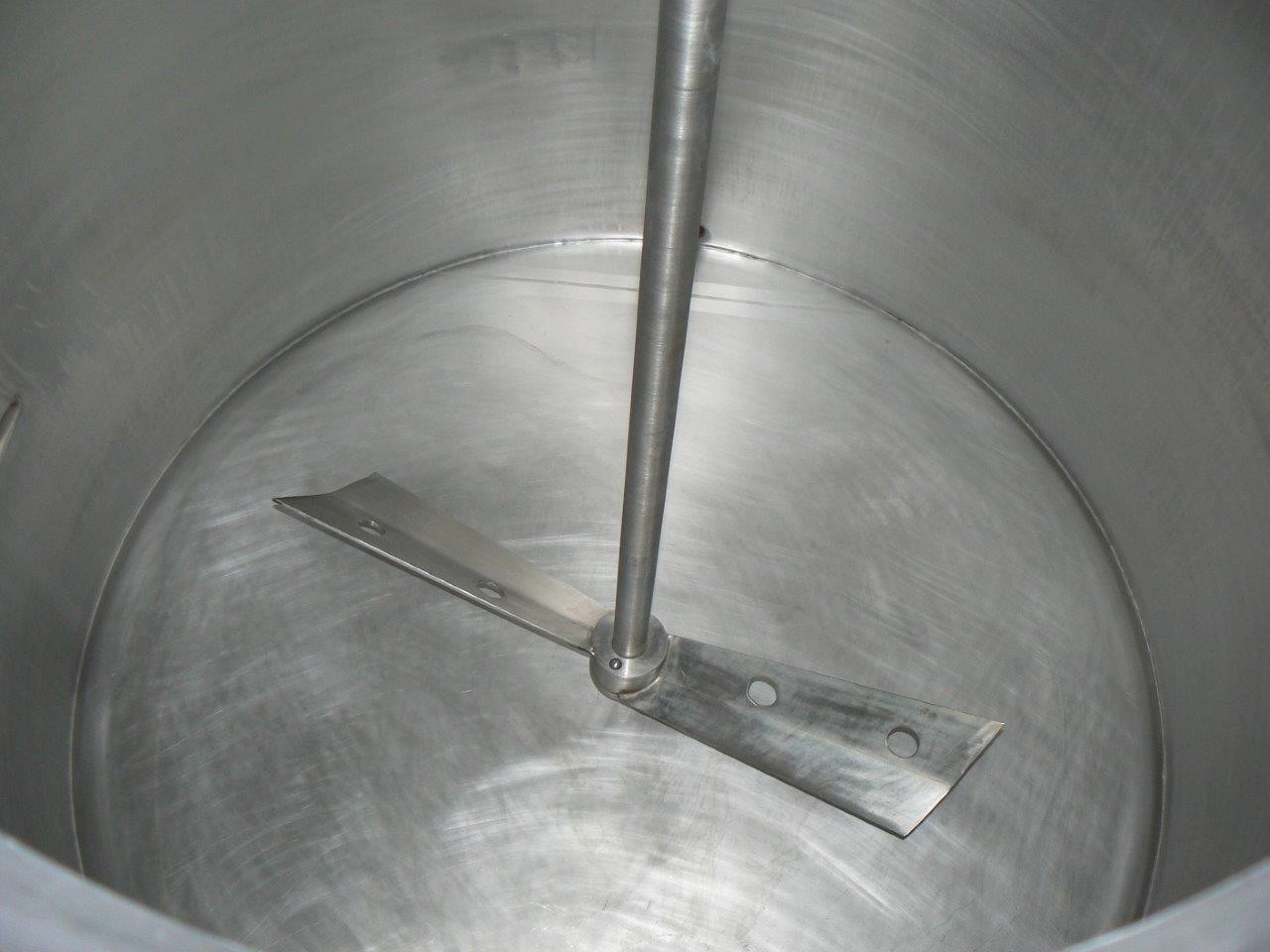

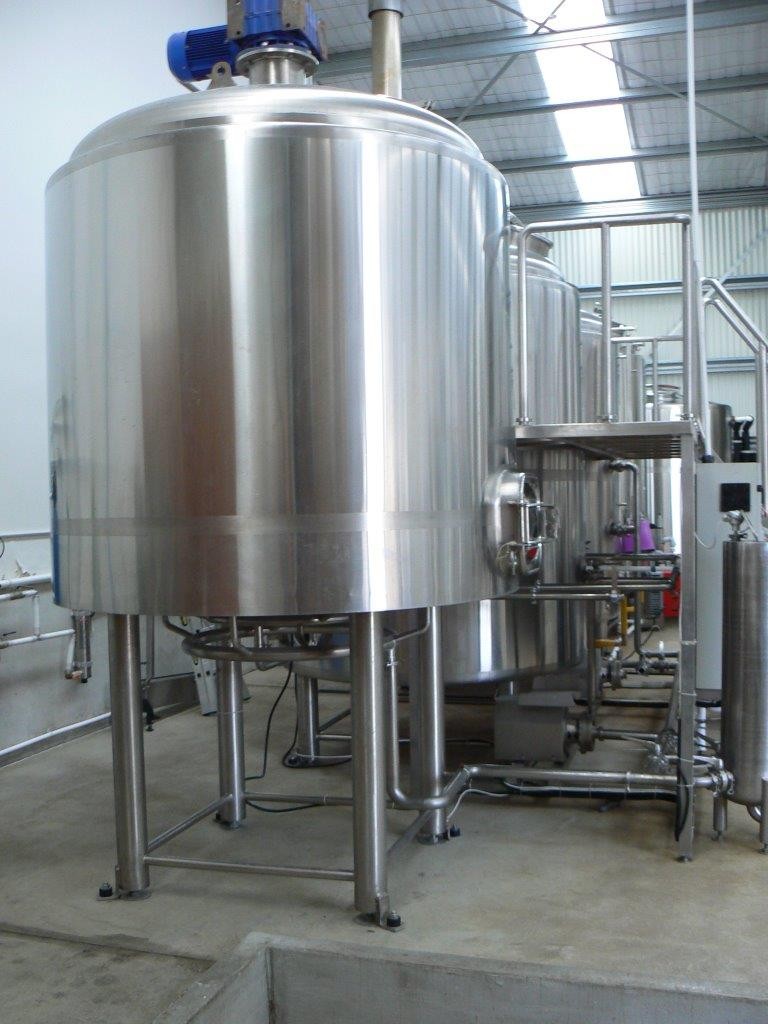

| Mash Tun | 20BBL 2400ltr 1.76d x 3h (3471ltr gross vol ) |

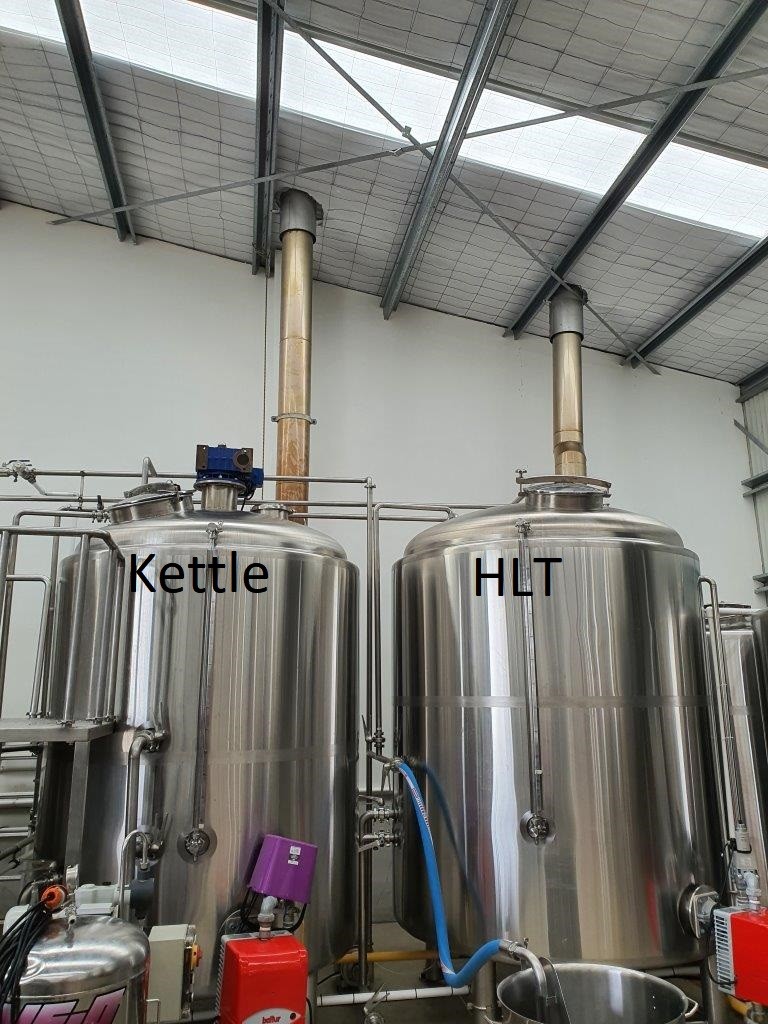

| Kettle/Whirlpool | 20BBL 2400ltr 1.76d x 3.1h (3471ltr gross vol) |

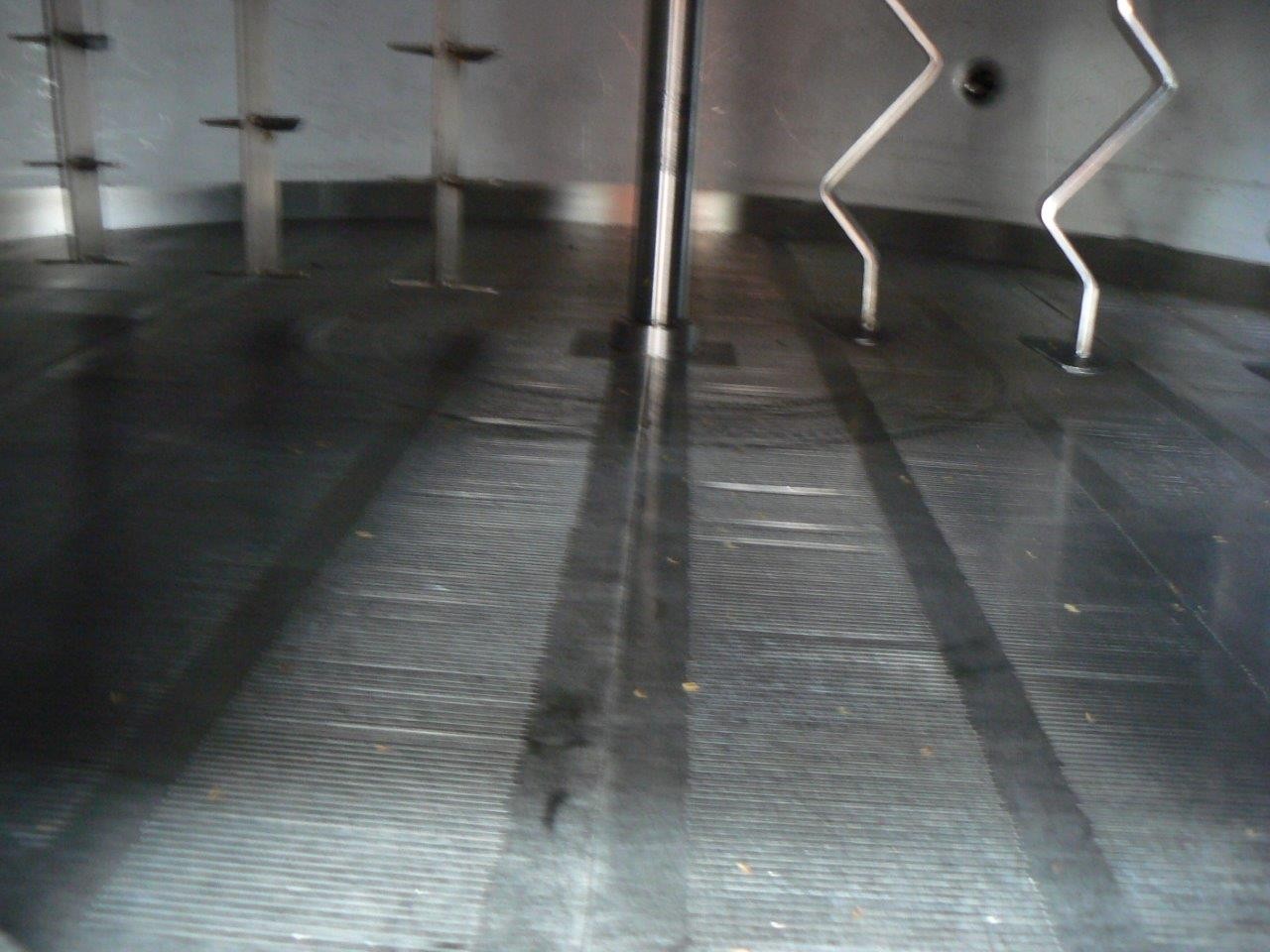

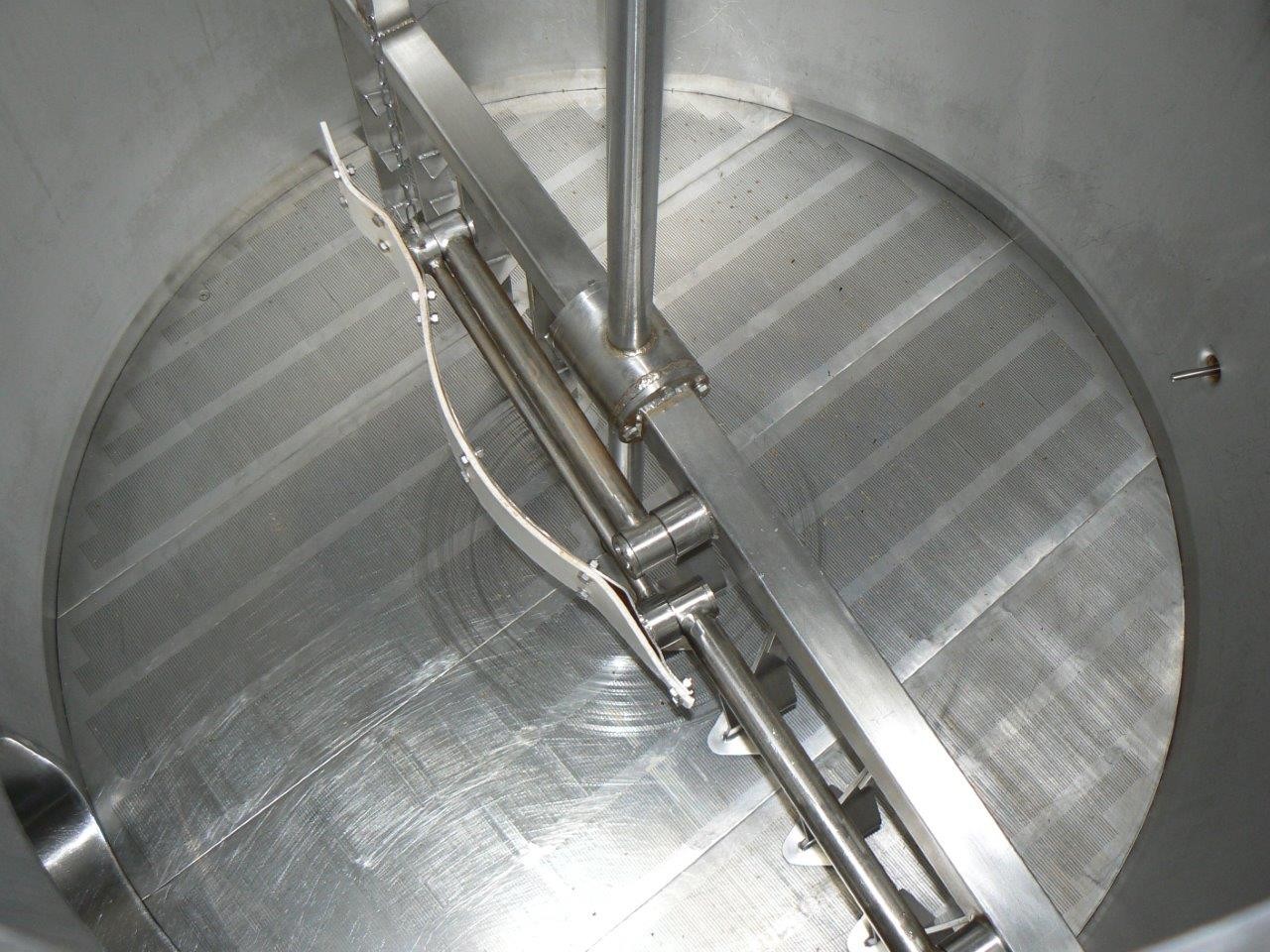

| Lauter | 20BBL 2400ltr 1.76d x 3.1h (3390ltr gross vol) |

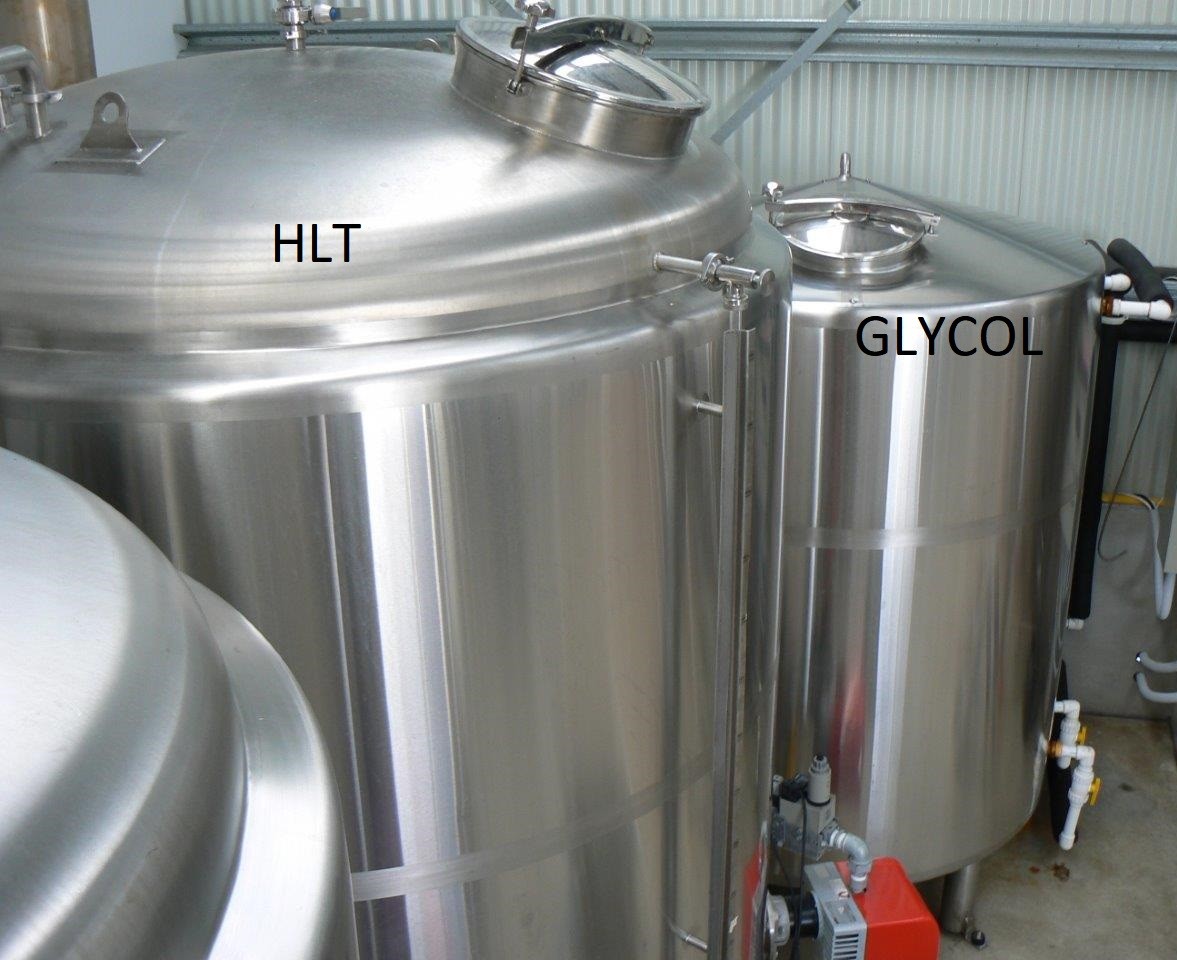

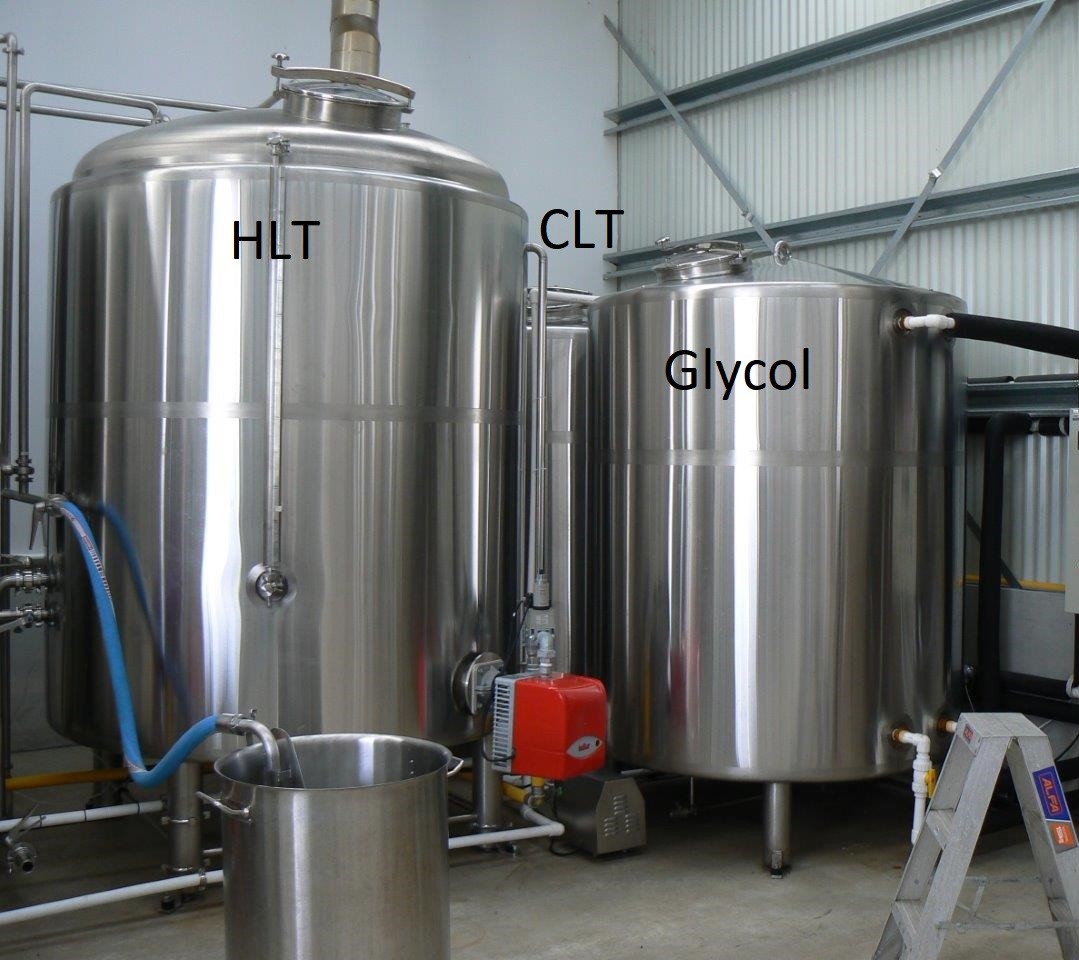

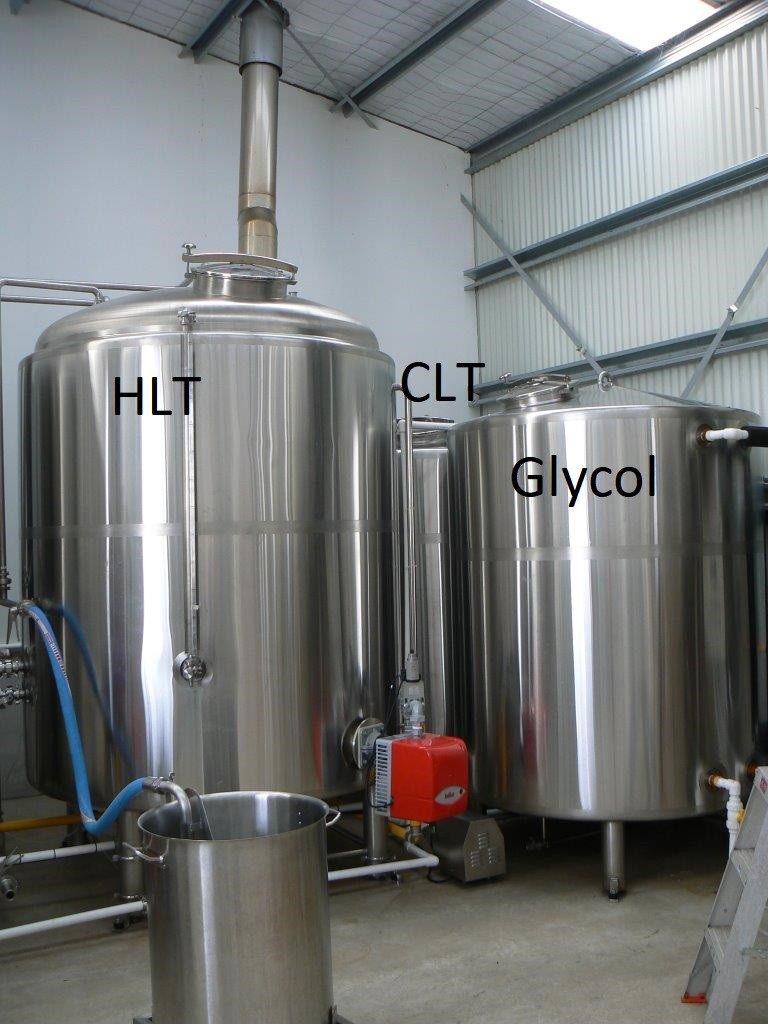

| HLT | 3500ltr + 15% headspace 1.9d x 3.2h (4660tr gross vol) |
| CLT | 3500ltr + 10% headspace 1.86d x 2.5h (3500tr gross vol) |
| Glycol | 3000ltr + 10% headspace 1.56d x 2.55h (3370ltr gross vol) |

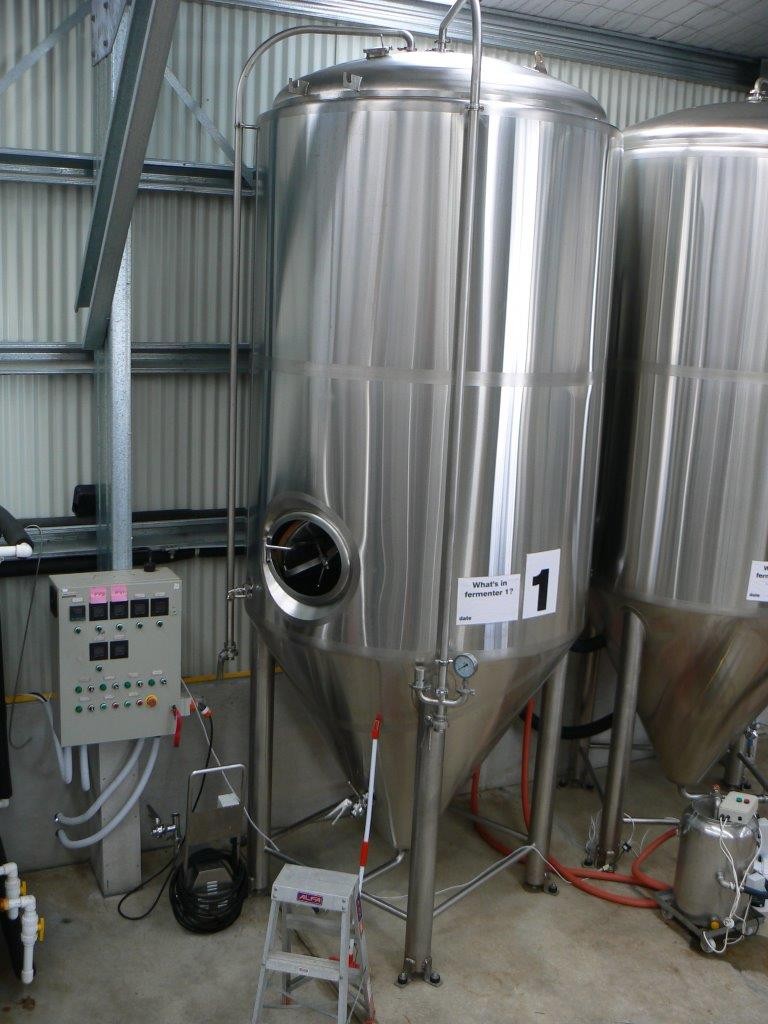

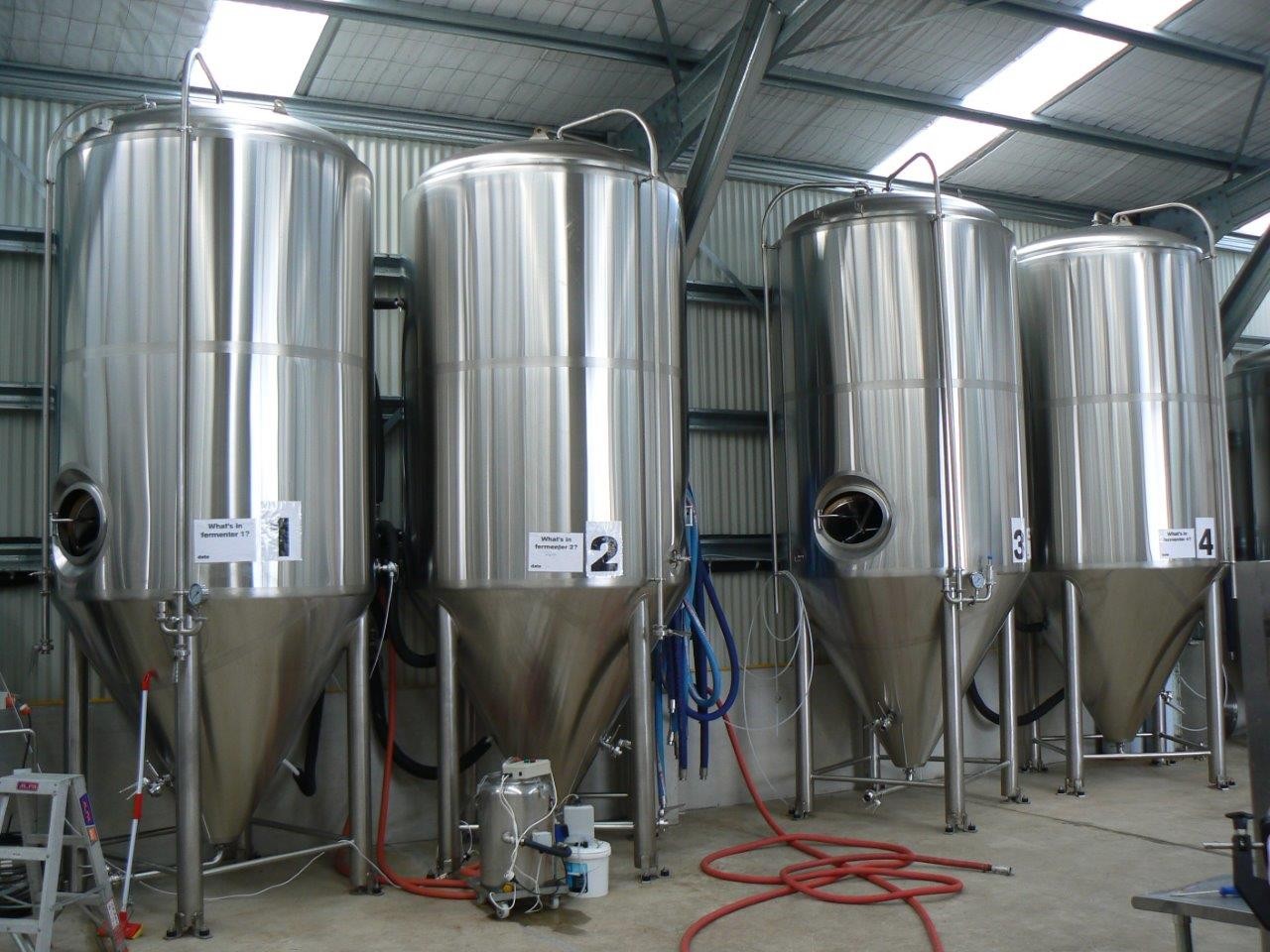

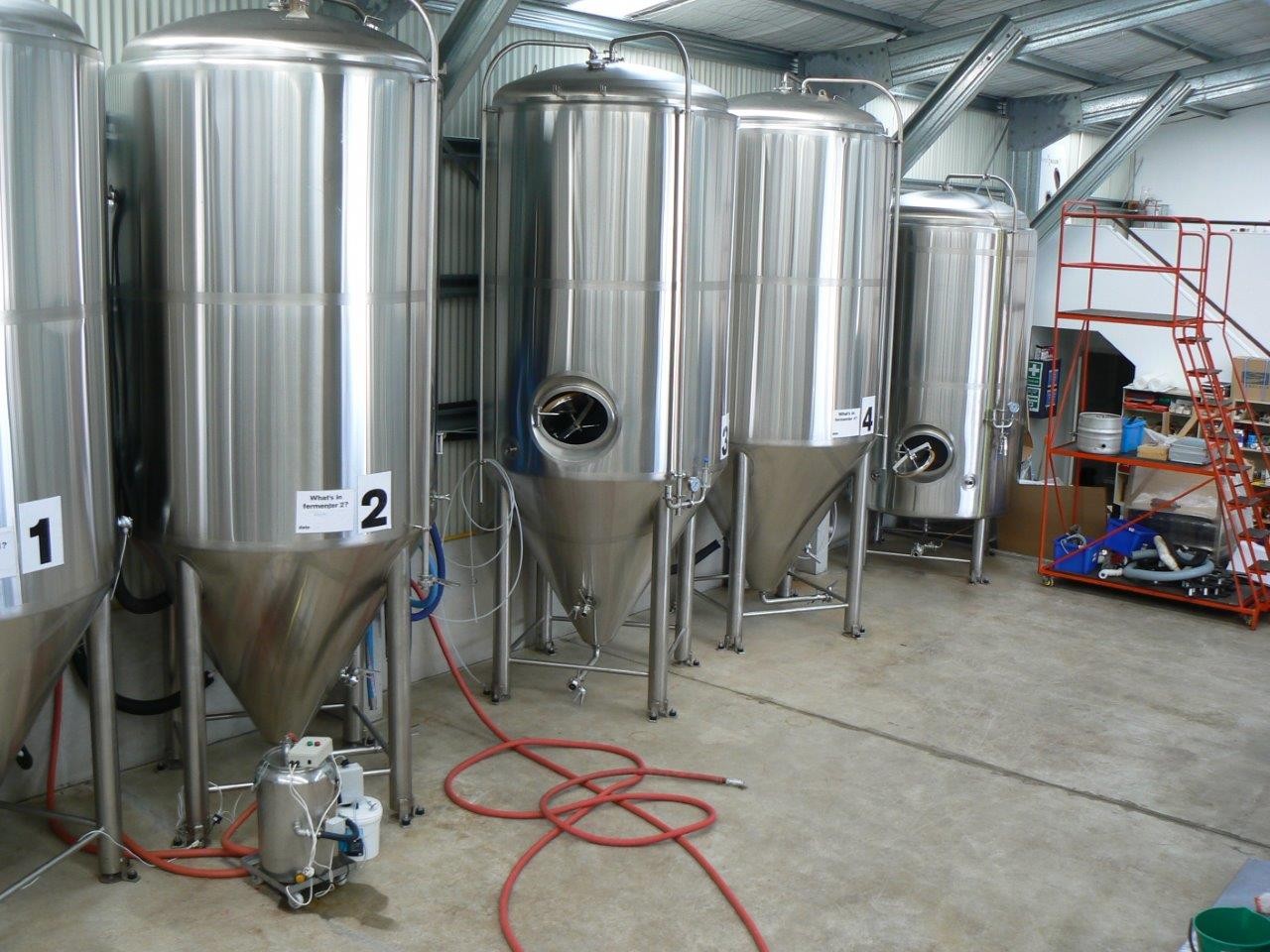

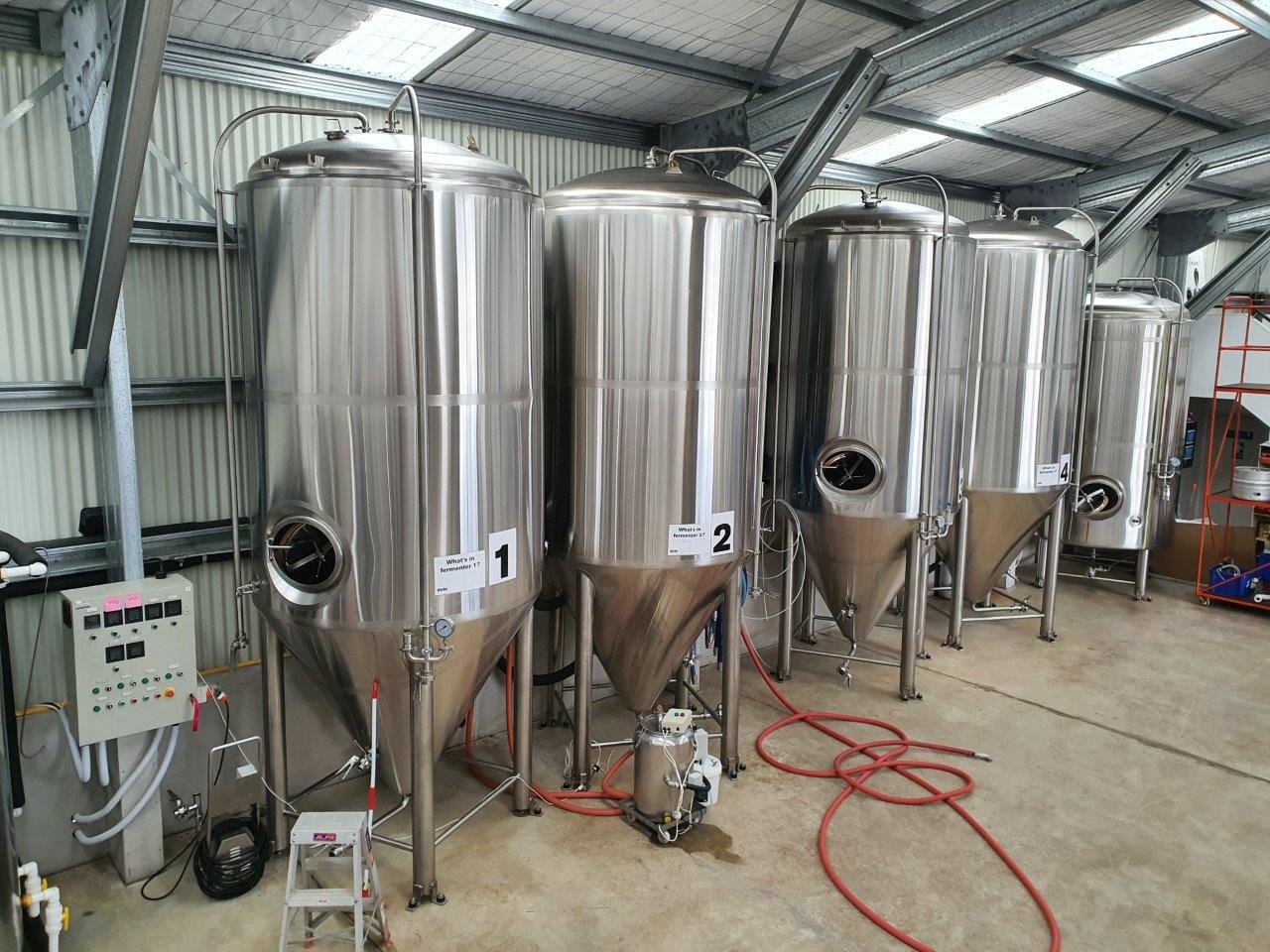

| Fermenter/Unitank | 40BBL 4800ltr + 25% headspace 1.76d x 4.467h overall ( 6049ltr gross vol ) |
| Fermenter/Unitank | 40BBL 4800ltr + 25% headspace 1.76d x 4.467h overall ( 6049ltr gross vol ) |
| Fermenter/Unitank | 40BBL 4800ltr + 25% headspace 1.76d x 4.467h overall ( 6049ltr gross vol ) |
| Fermenter/Unitank | 40BBL 4800ltr + 25% headspace 1.76d x 4.467h overall ( 6049ltr gross vol ) |

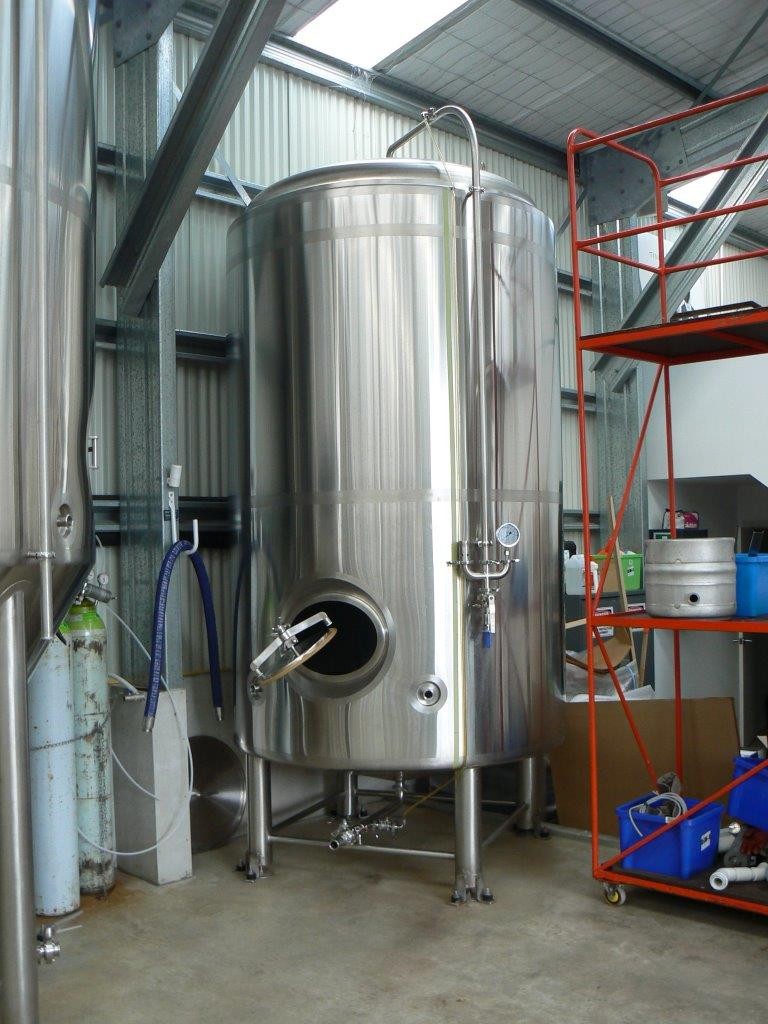

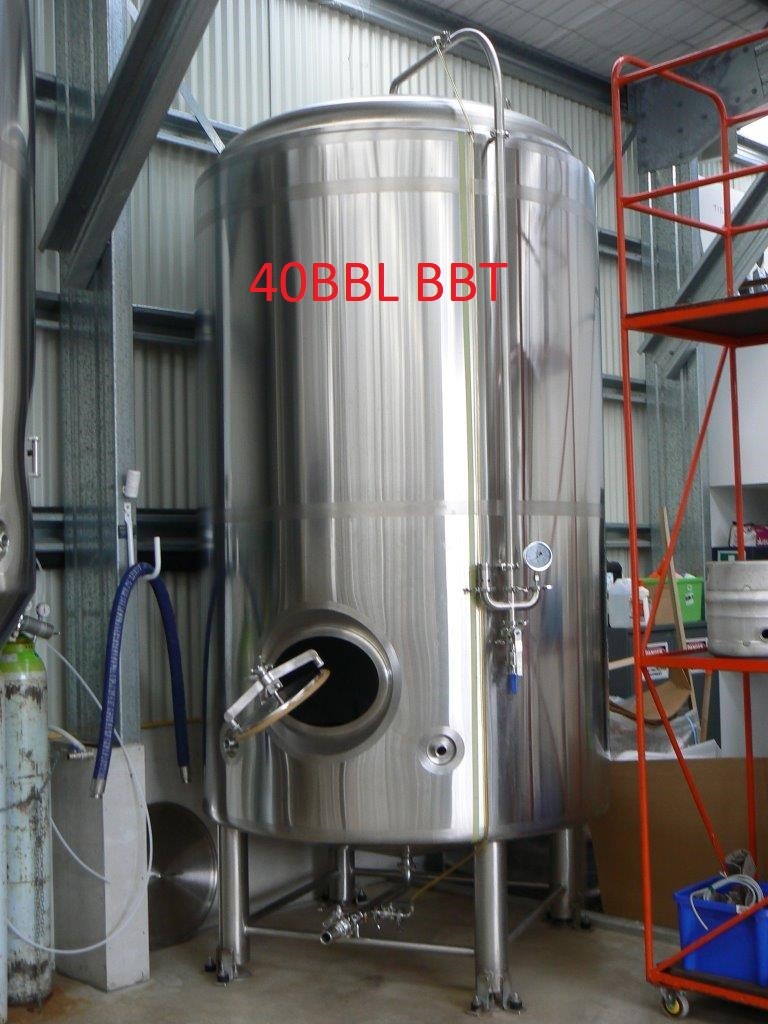

| Bright Beer | 40BBL 4800ltr + 25% headspace 1.76d x 3.98h overall ( 5800ltr gross vol ) |

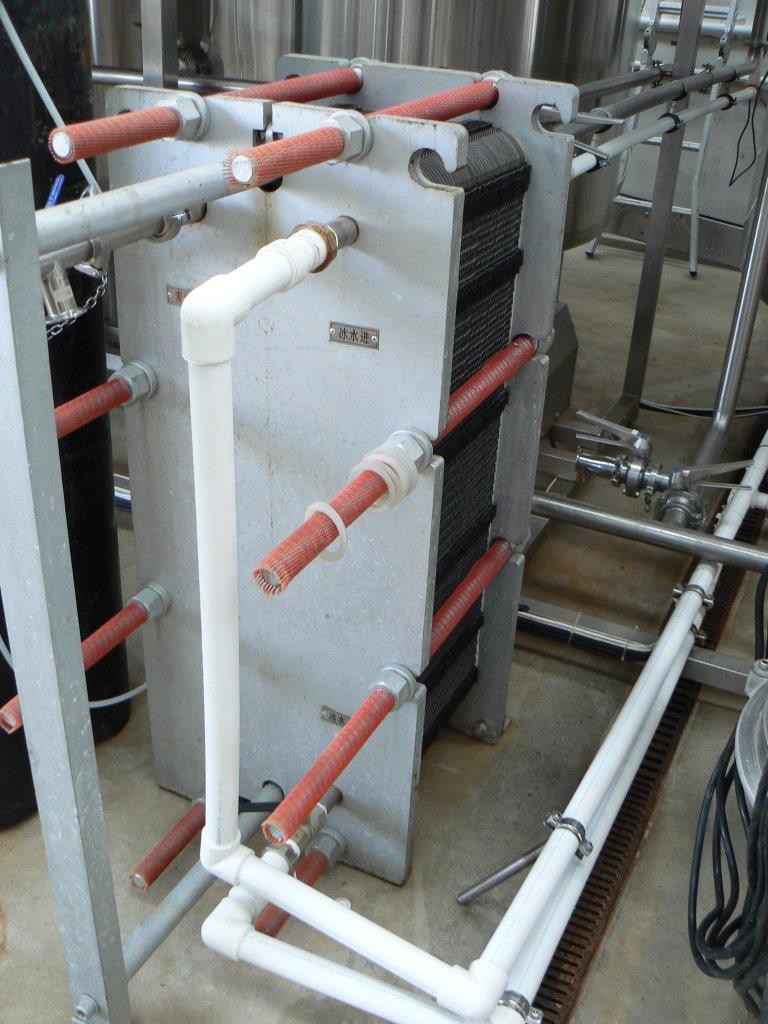

| Heat Exchanger | Cooling area 25m2 |

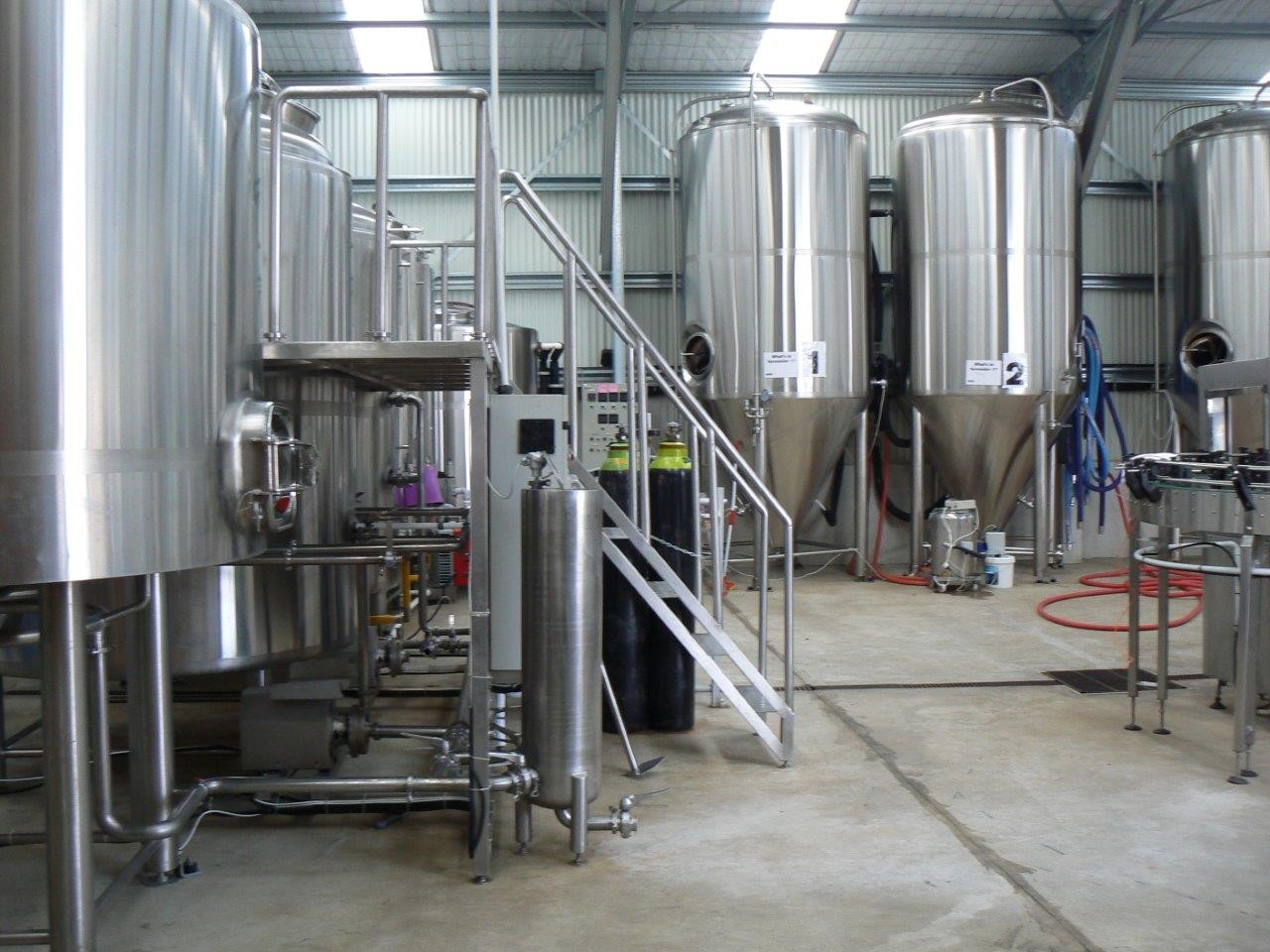

| Brewers Platform | ss integrated stairs and ladder |

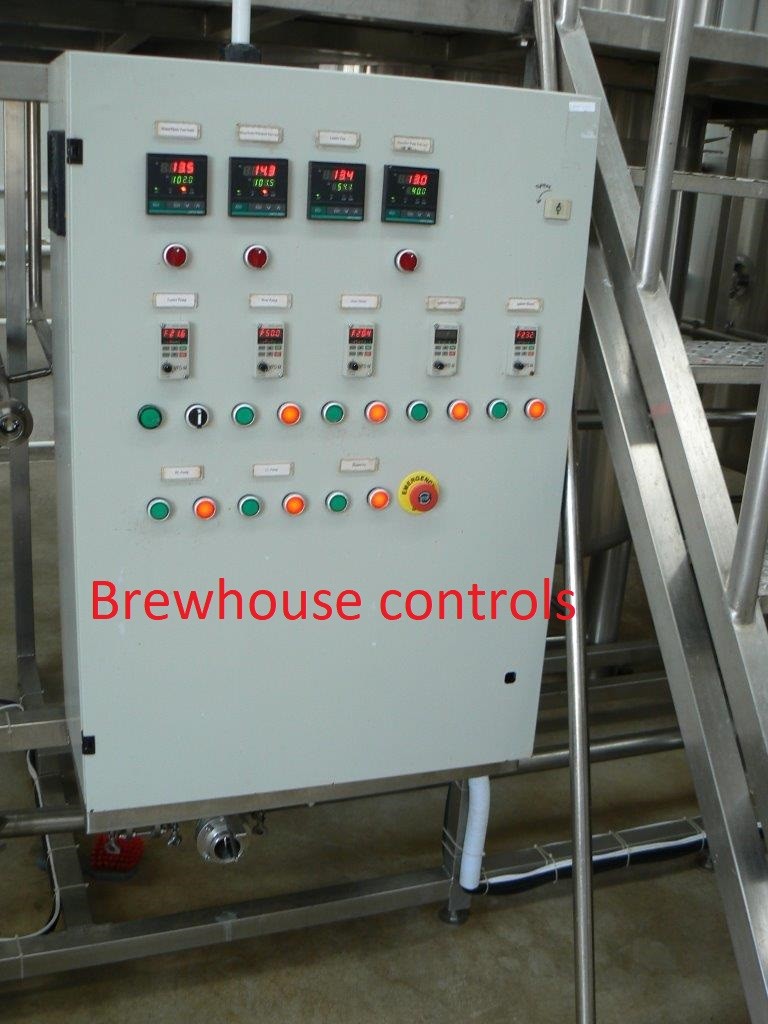

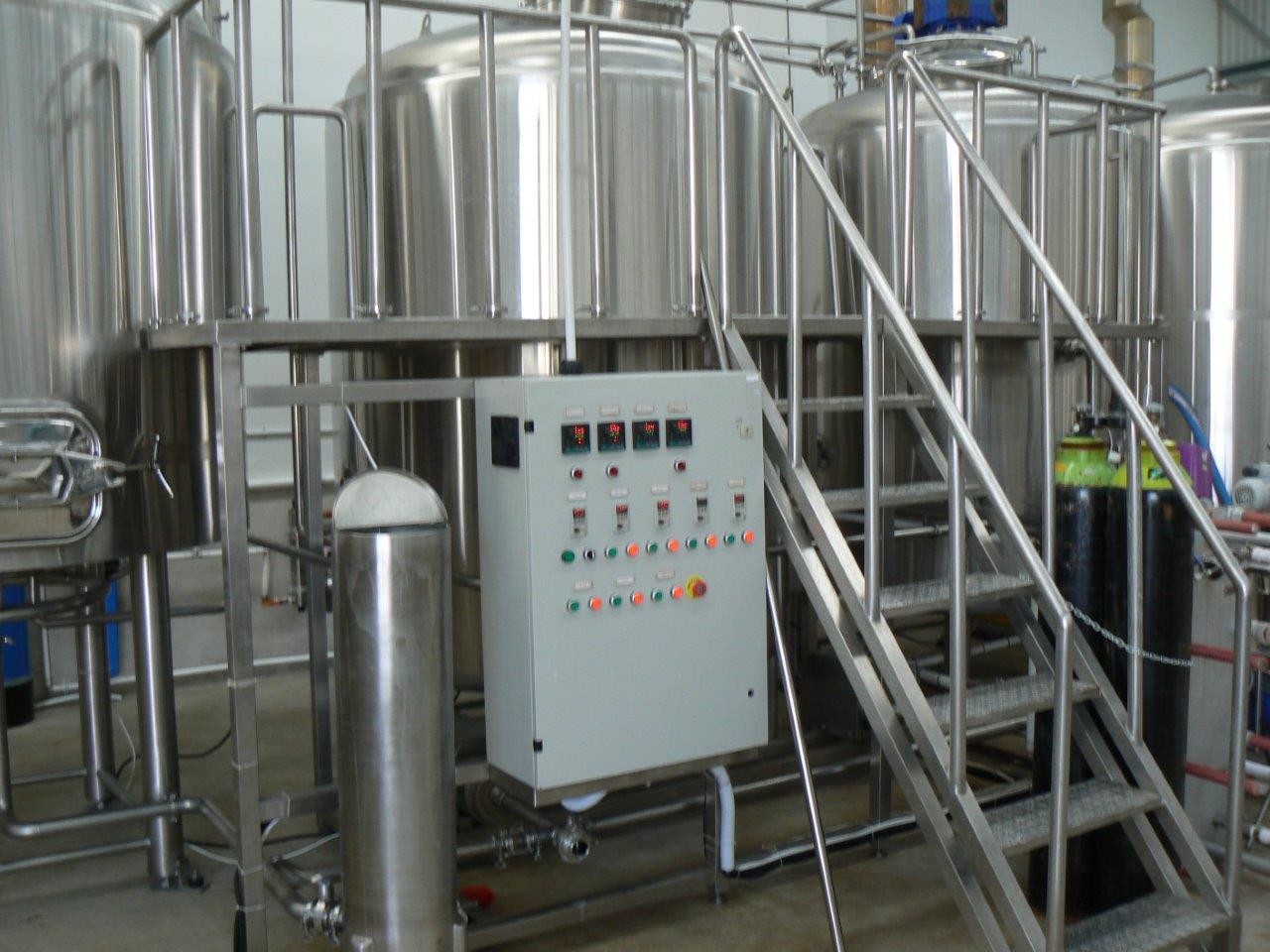

| Brewhouse controls | Brewhouse control cabinet |

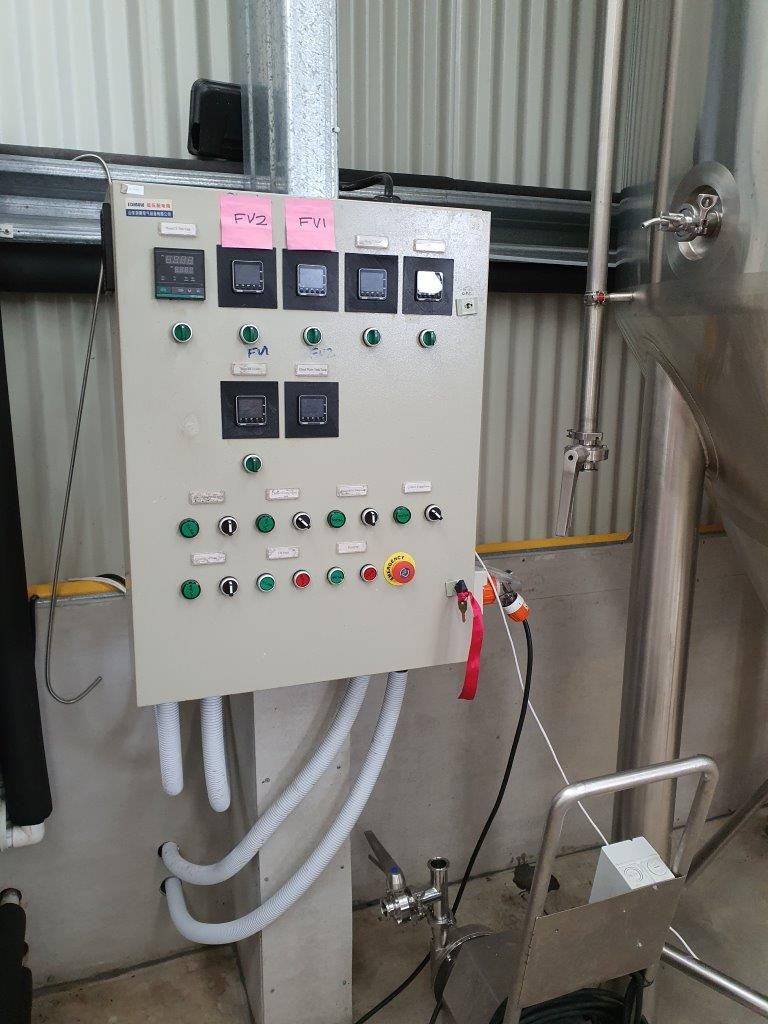

| Fermenter controls | Fermenter control cabinet |
| CIP | CIP vessel tri-clover fittings |

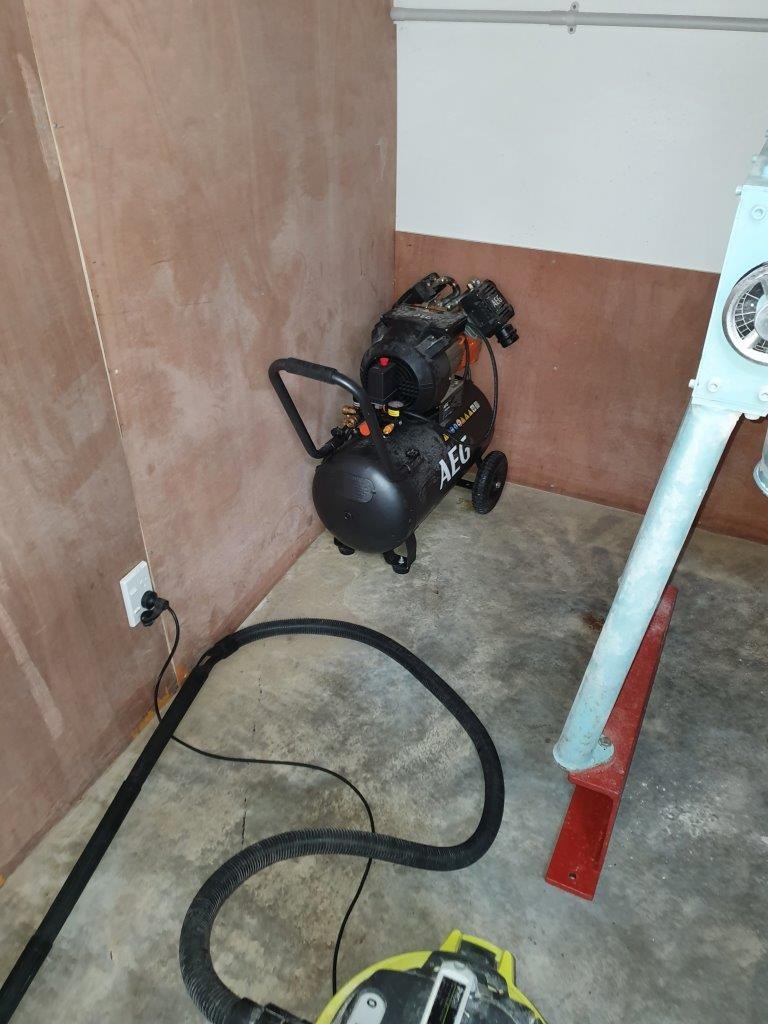

| Compressor | Air compressor |

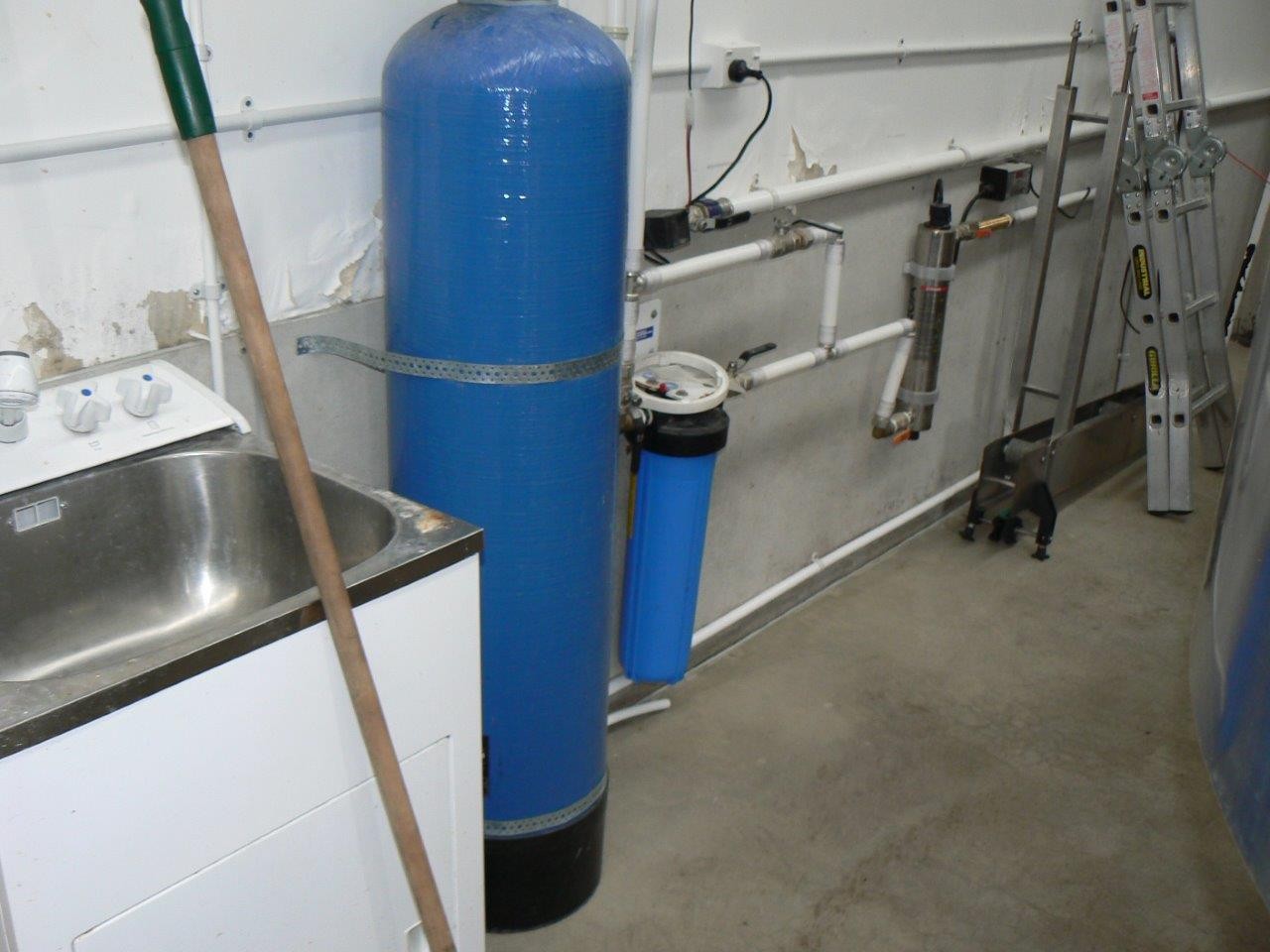

| Filter | Carbon water filter and UV steriliser |

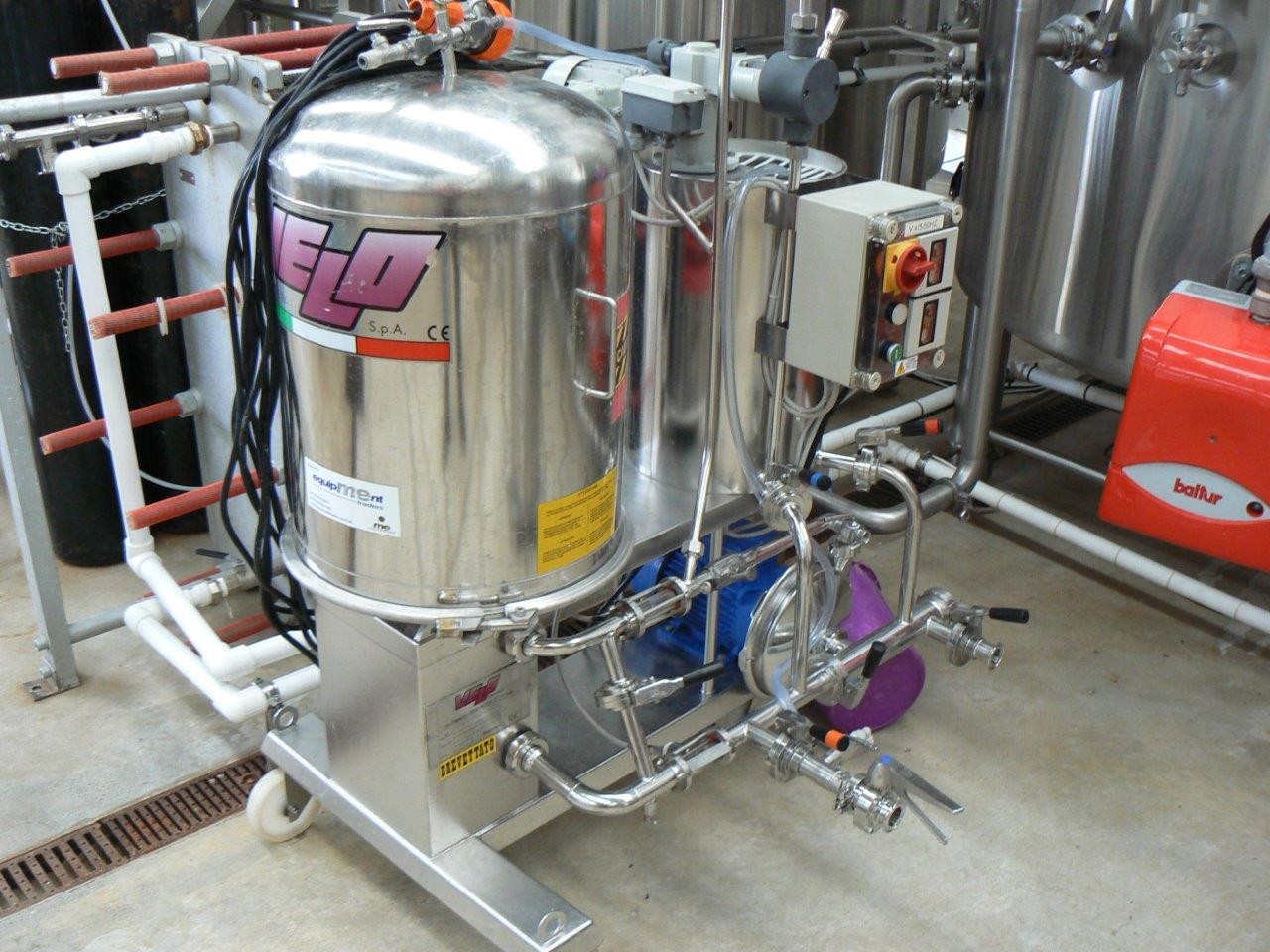

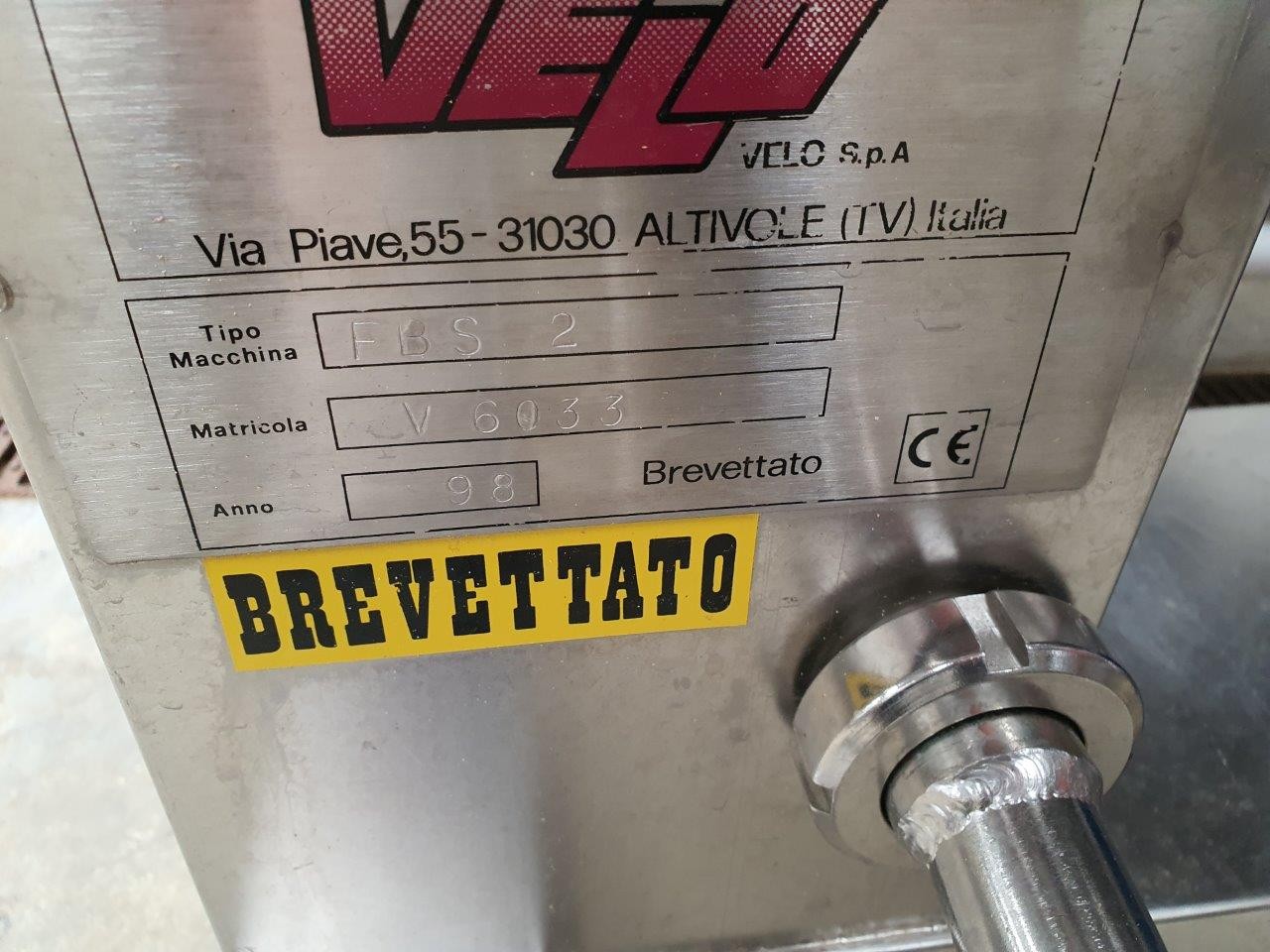

| Filter | DE filter Velo FBS2 pump motor reconditioned |

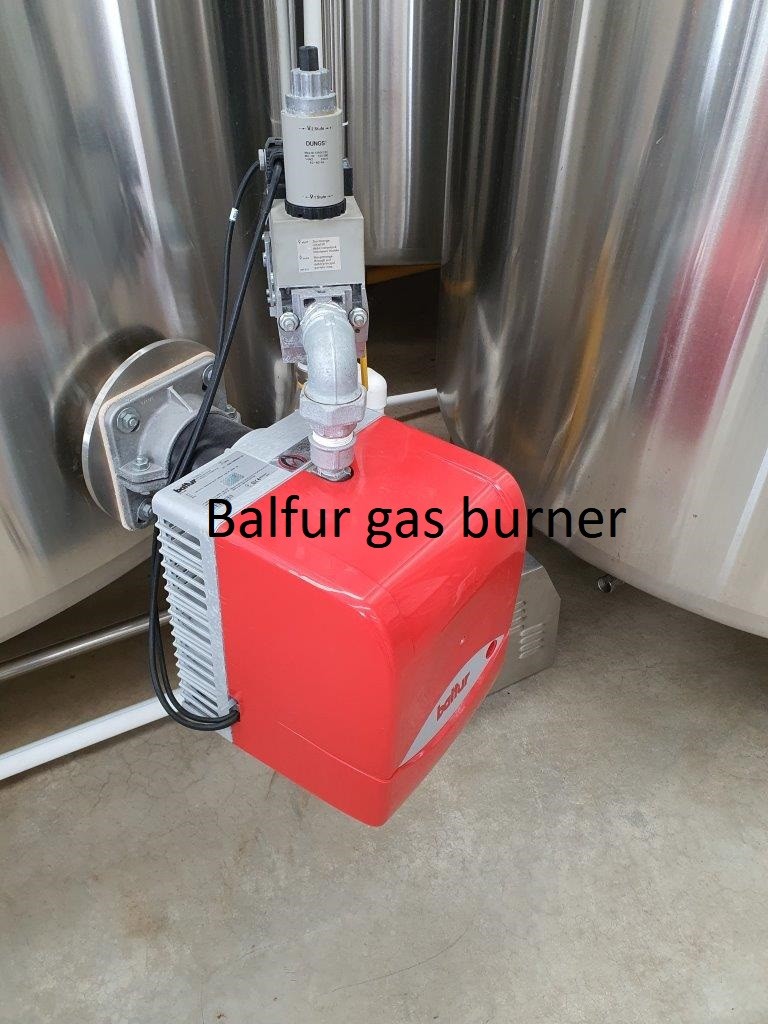

| Gas | Balfur 20G gas burners x 2 for kettle and HLT |

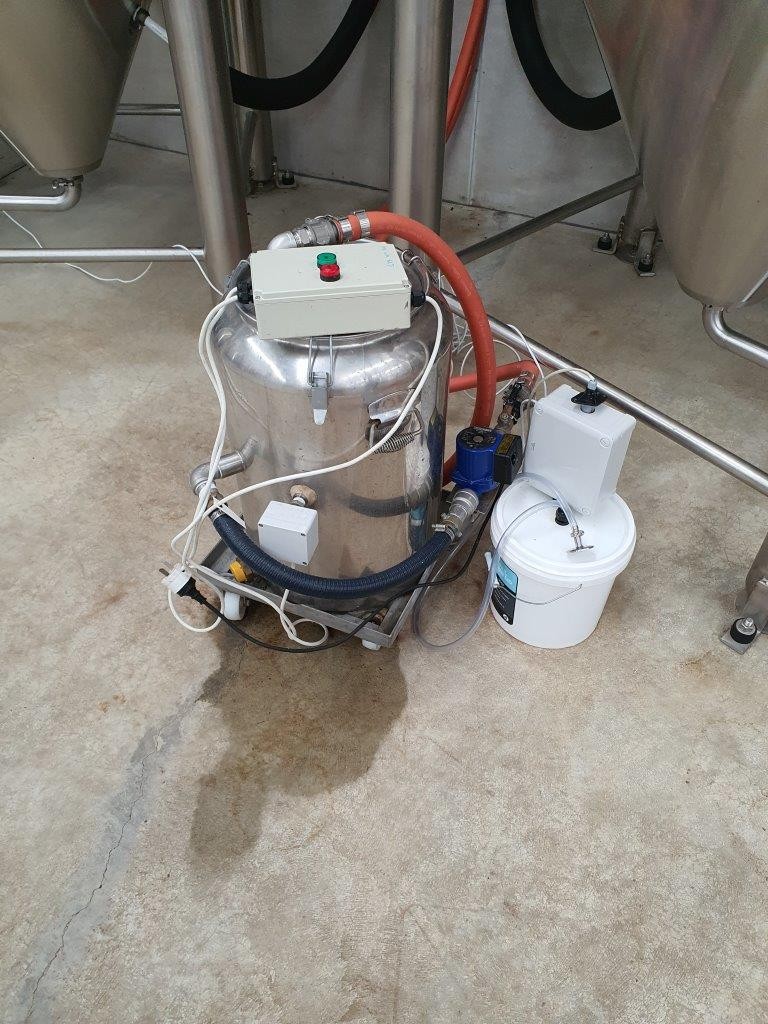

| Glycol | Glycol heating unit for heating wort in FV |

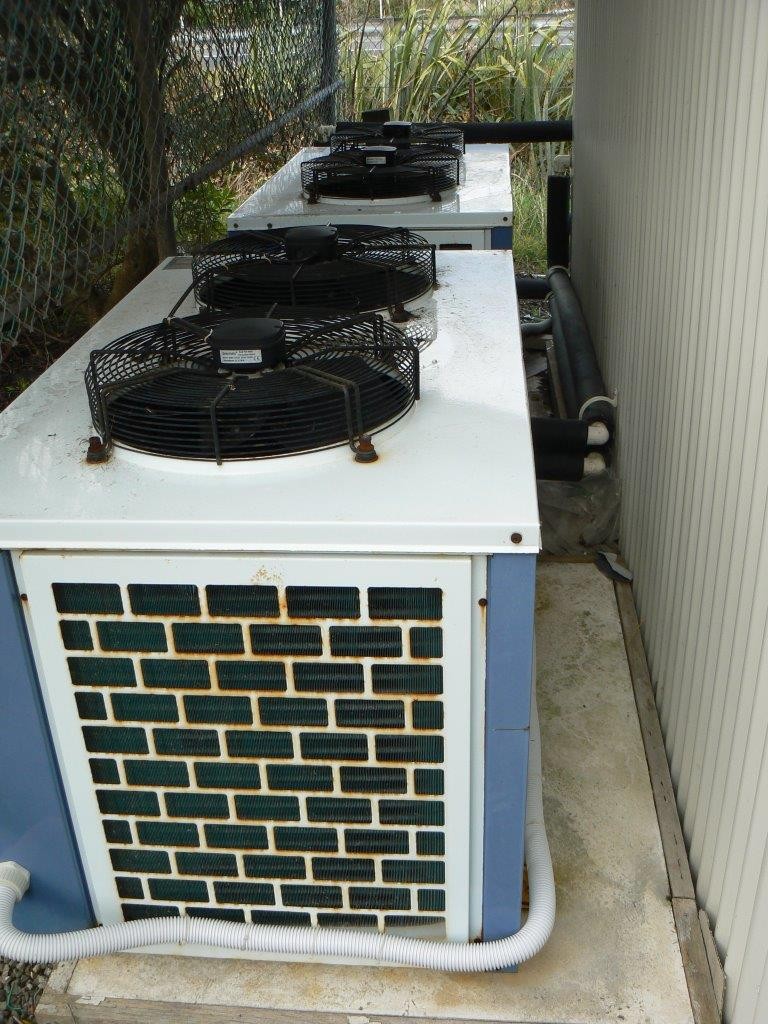

| Glycol Refrig units 2 | 15400Kcal/8hp 1.2x.72x1.3 |
| Hoses | Beer hoses X 4 1.5tri clover |

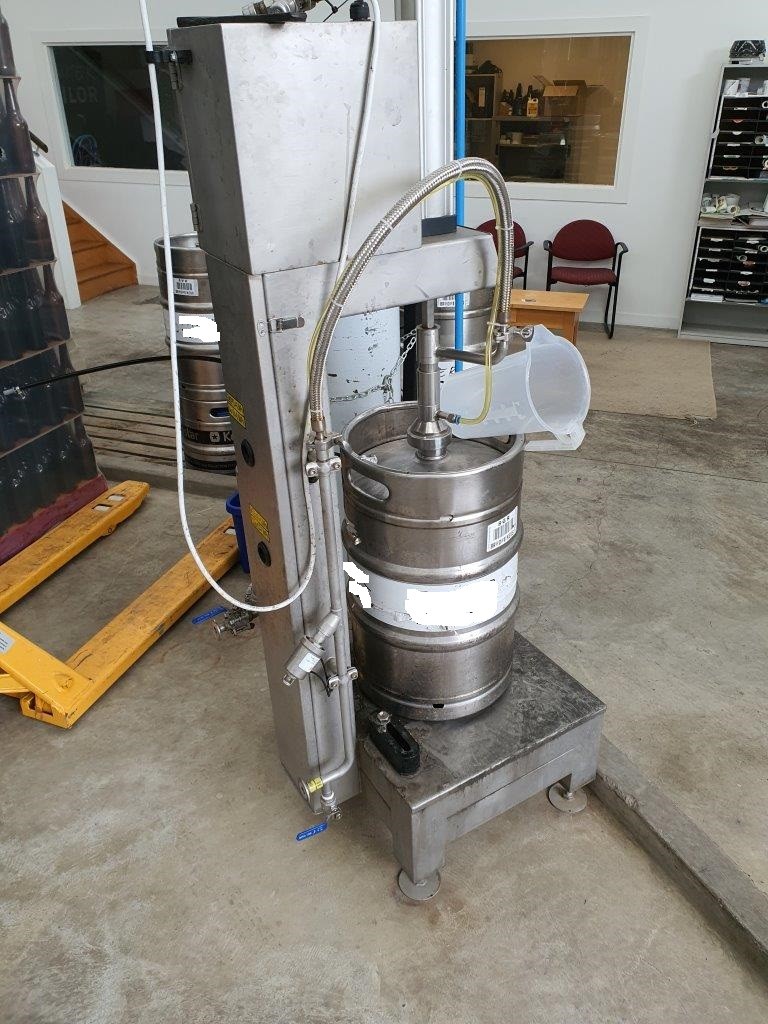

| Keg Filler | single station 30-40 kegs/hr |

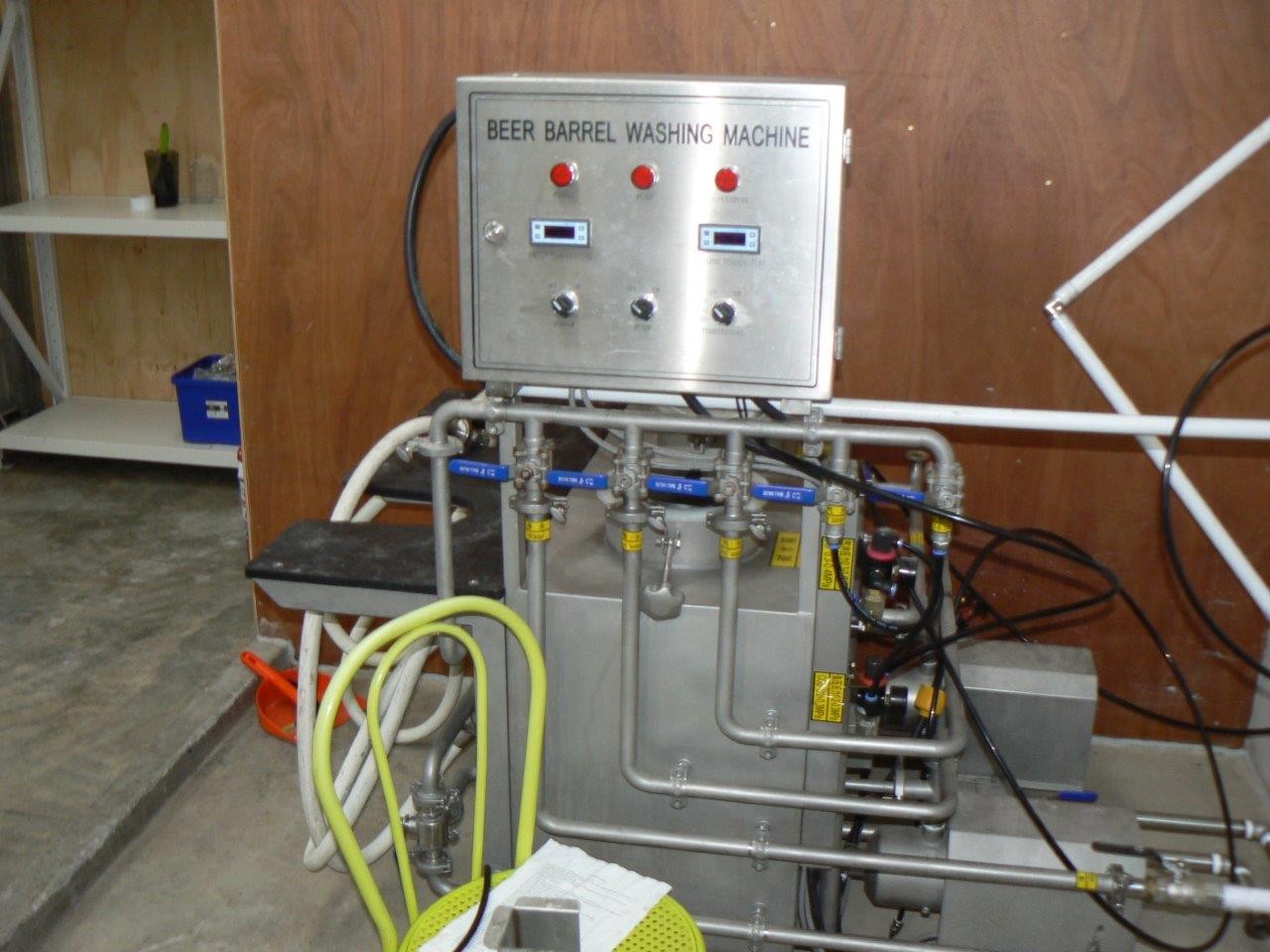

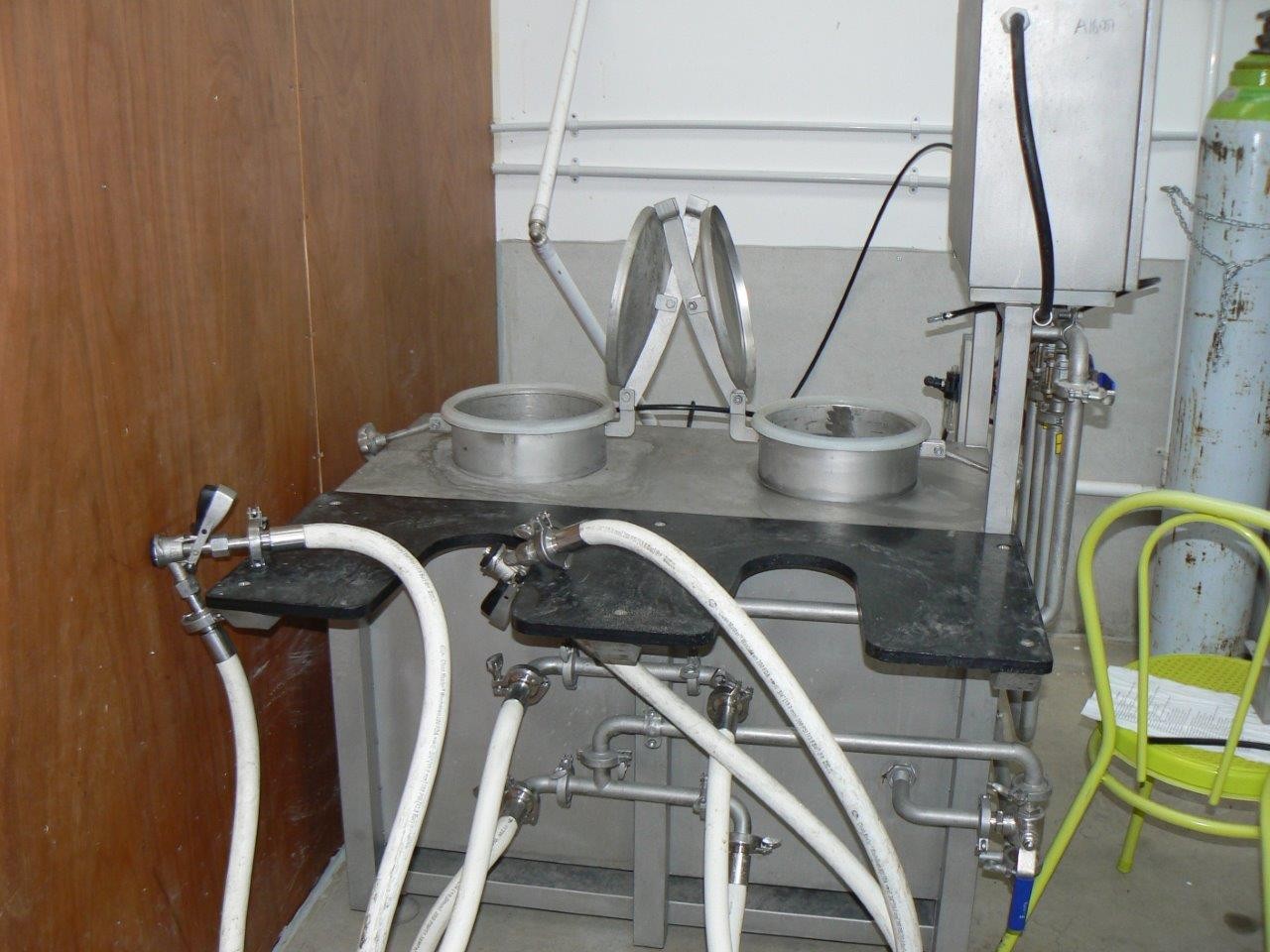

| Keg Washer | two station keg rinser 20 -30 kegs/hr dimensions 1.7x1.3x1.5h |

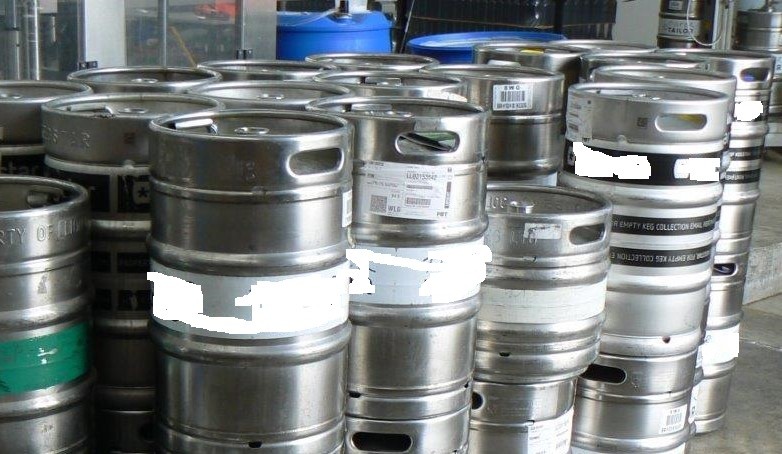

| Kegs | 100x 50 litre Frankie Kegs D stem |

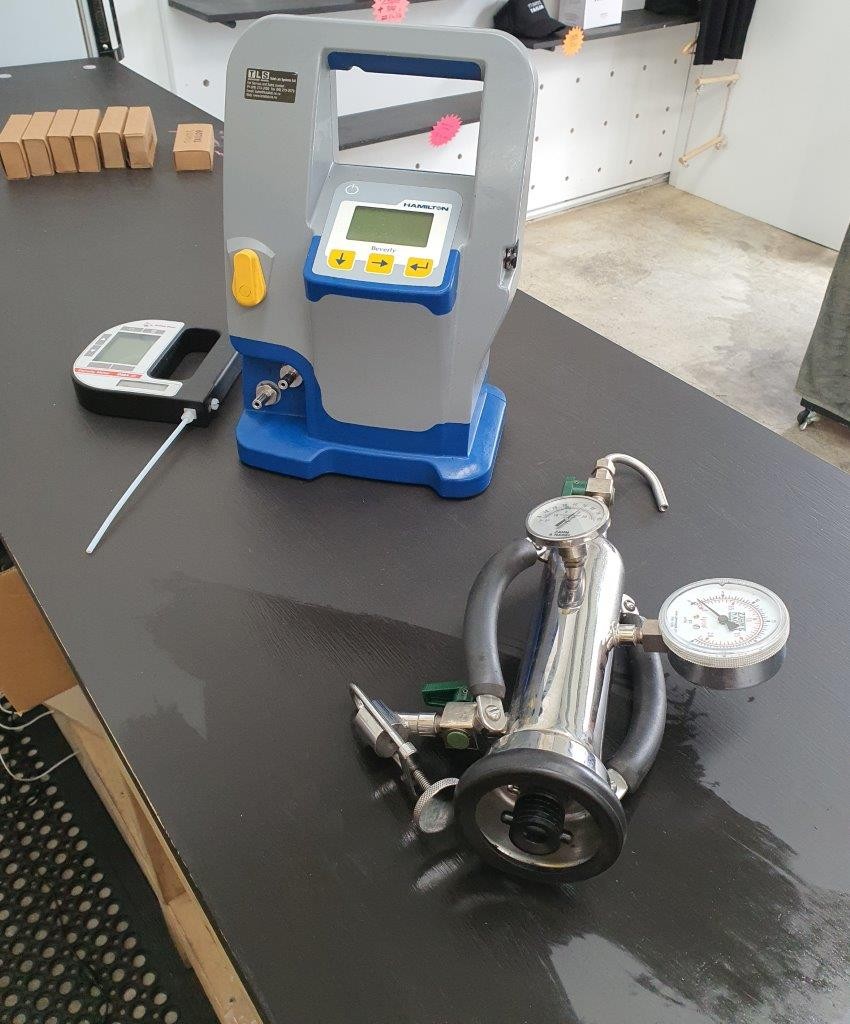

| LAB | Zham series 1000 CO2 meter and bottle piercing system |

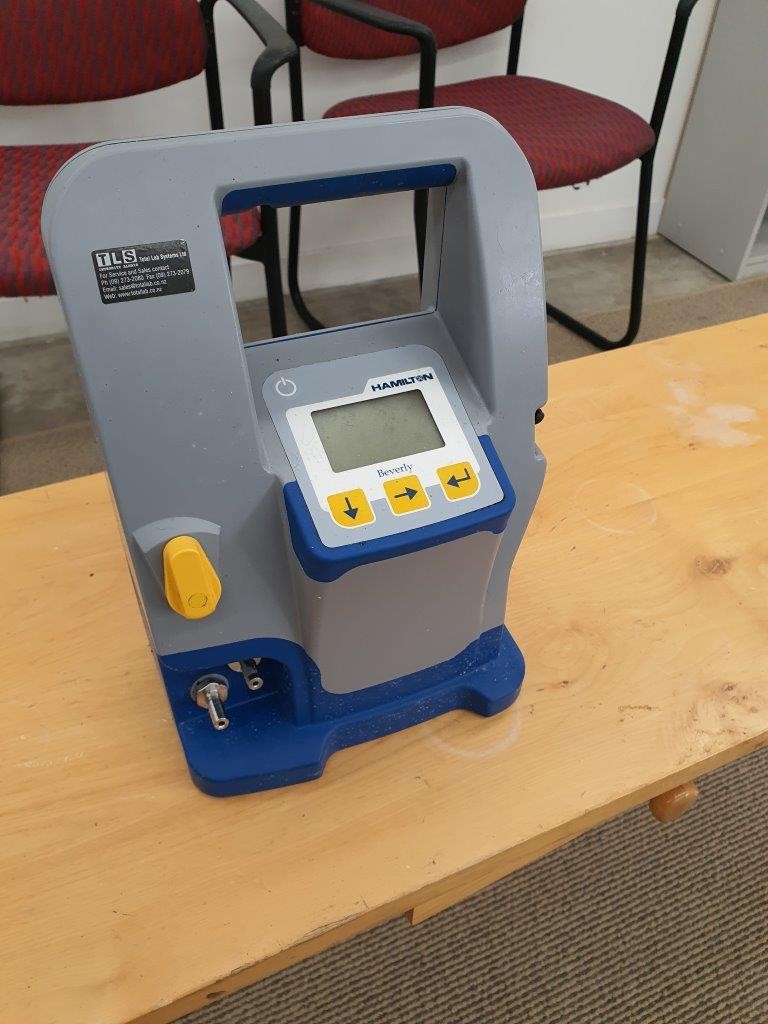

| LAB | Beverly Dissolved Oxygen meter ( DO meter) |

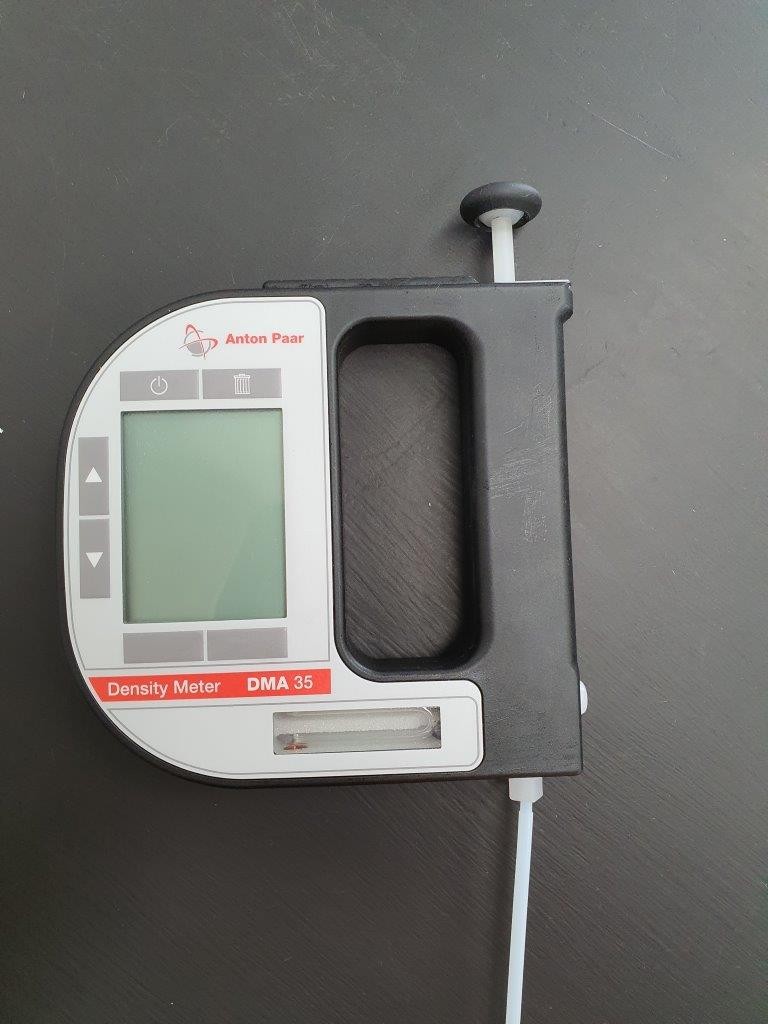

| LAB | Anton Paar DMA 35 density meter |
| Lifting | Pallet Jack |

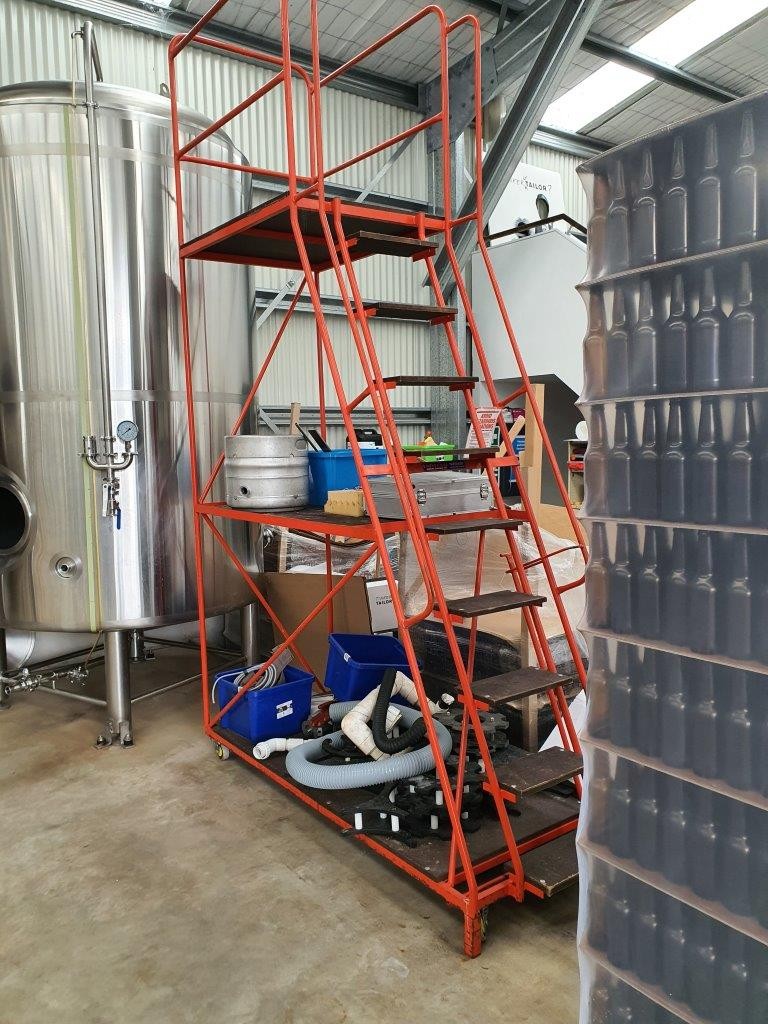

| Mobile Stairs | Rolling stairs 3.5 to top rail |

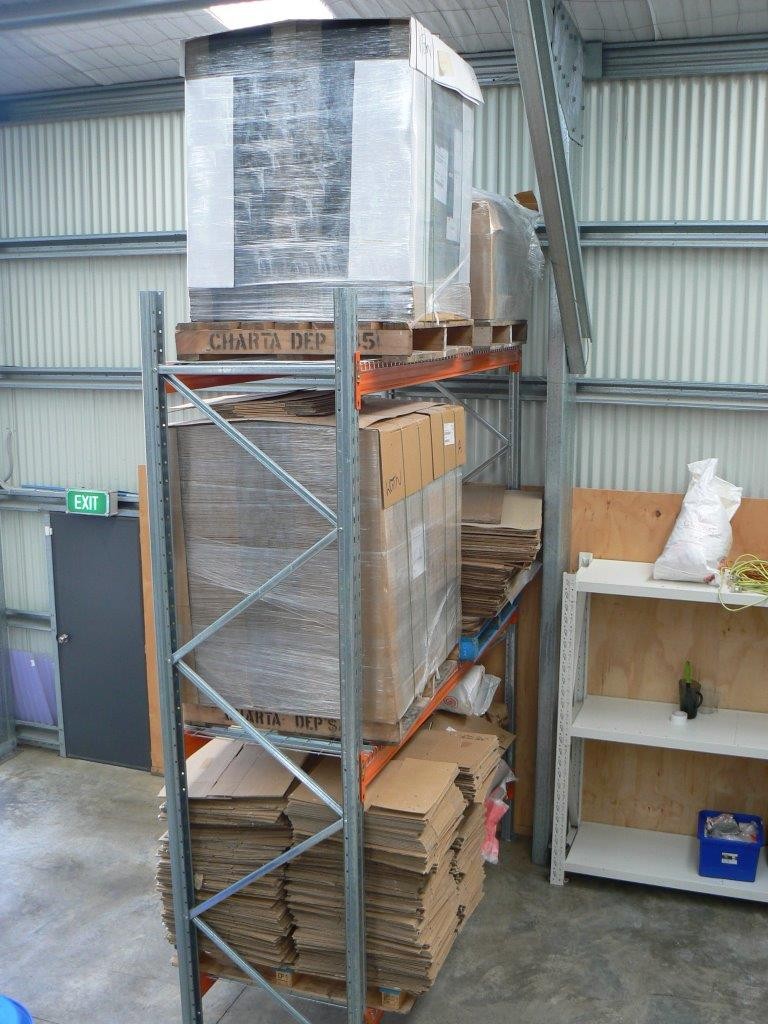

| Pallet racking | Pallet racking and shelves |

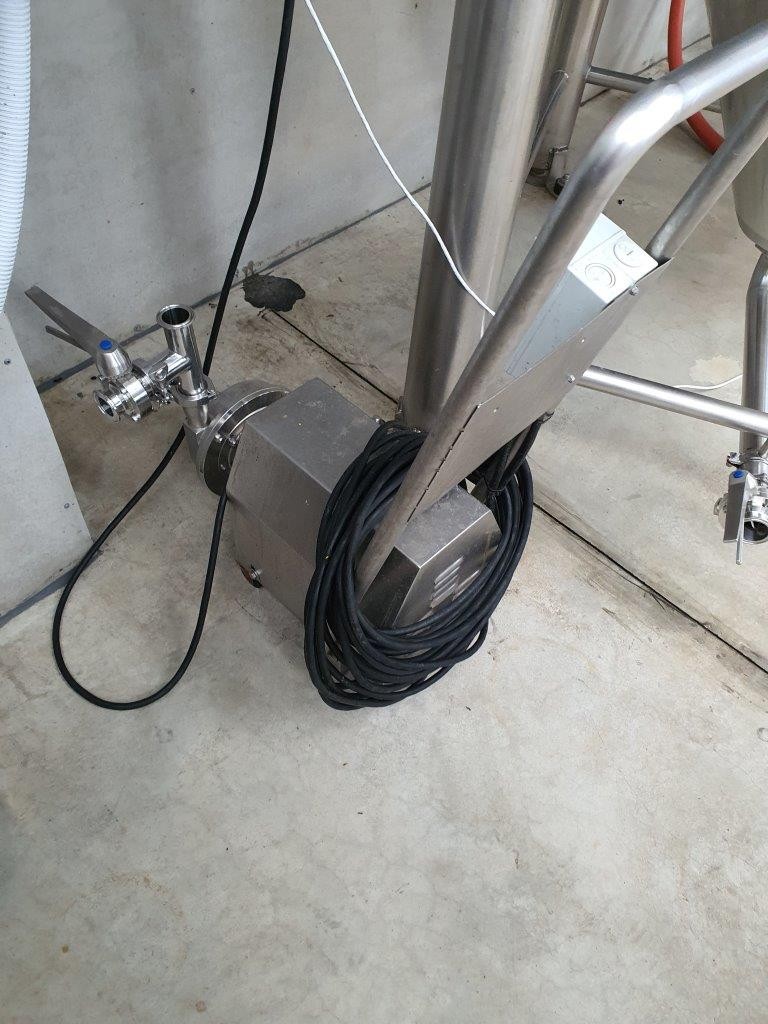

| Pump | Diaphragm pump used for BBT - bottling and keg filler |
| Pump | Floor submersible pump |
| Pump | Portable CIP pump and CIP hose 6mtr |
| Pump | glycol |

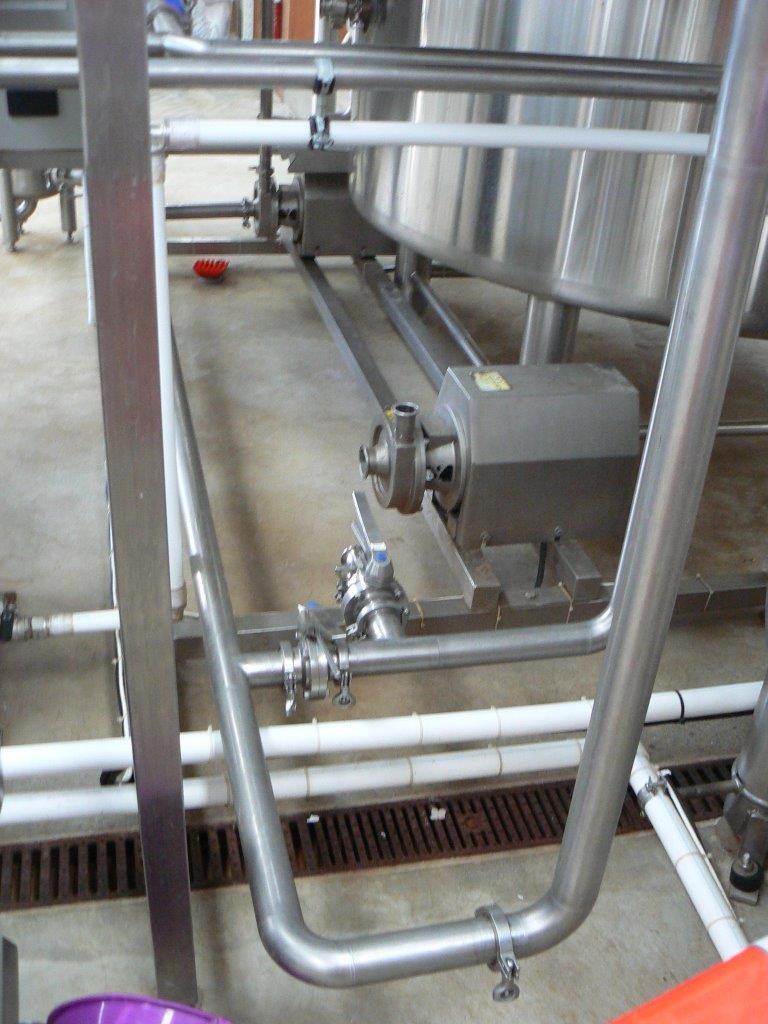

| Pumps | mash, wort, hlt |
| regulator | O2 regulator for wort oxygenation |
| regulator | CO2 regulators hi flow for bottling machine , keg washing filling |

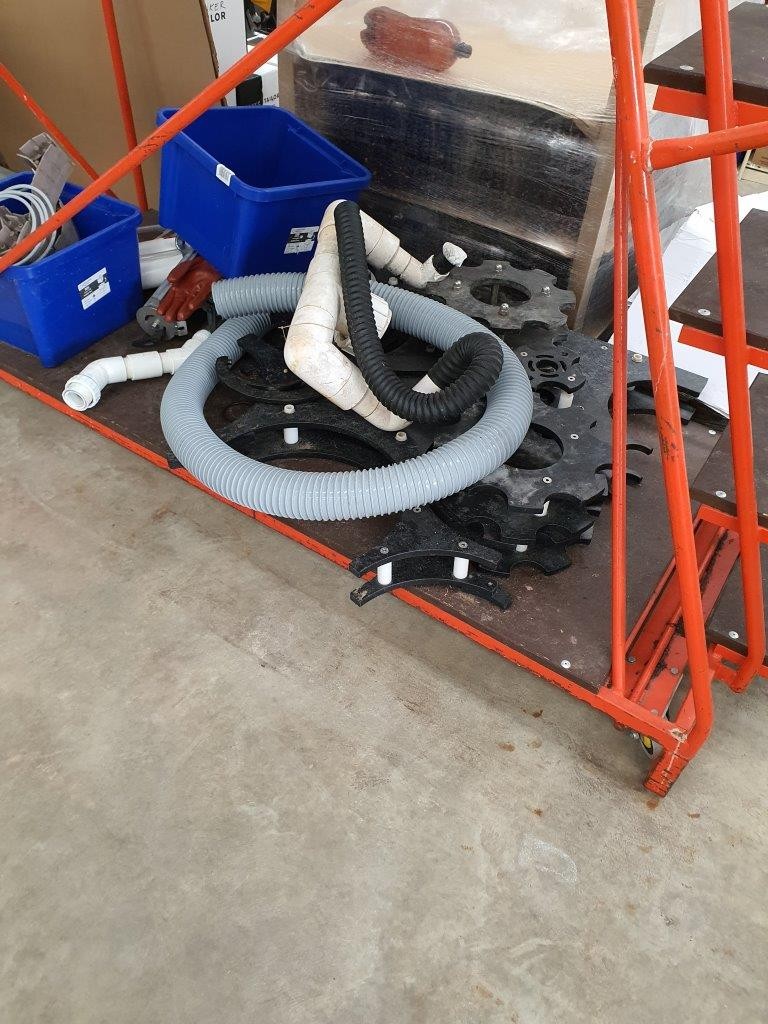

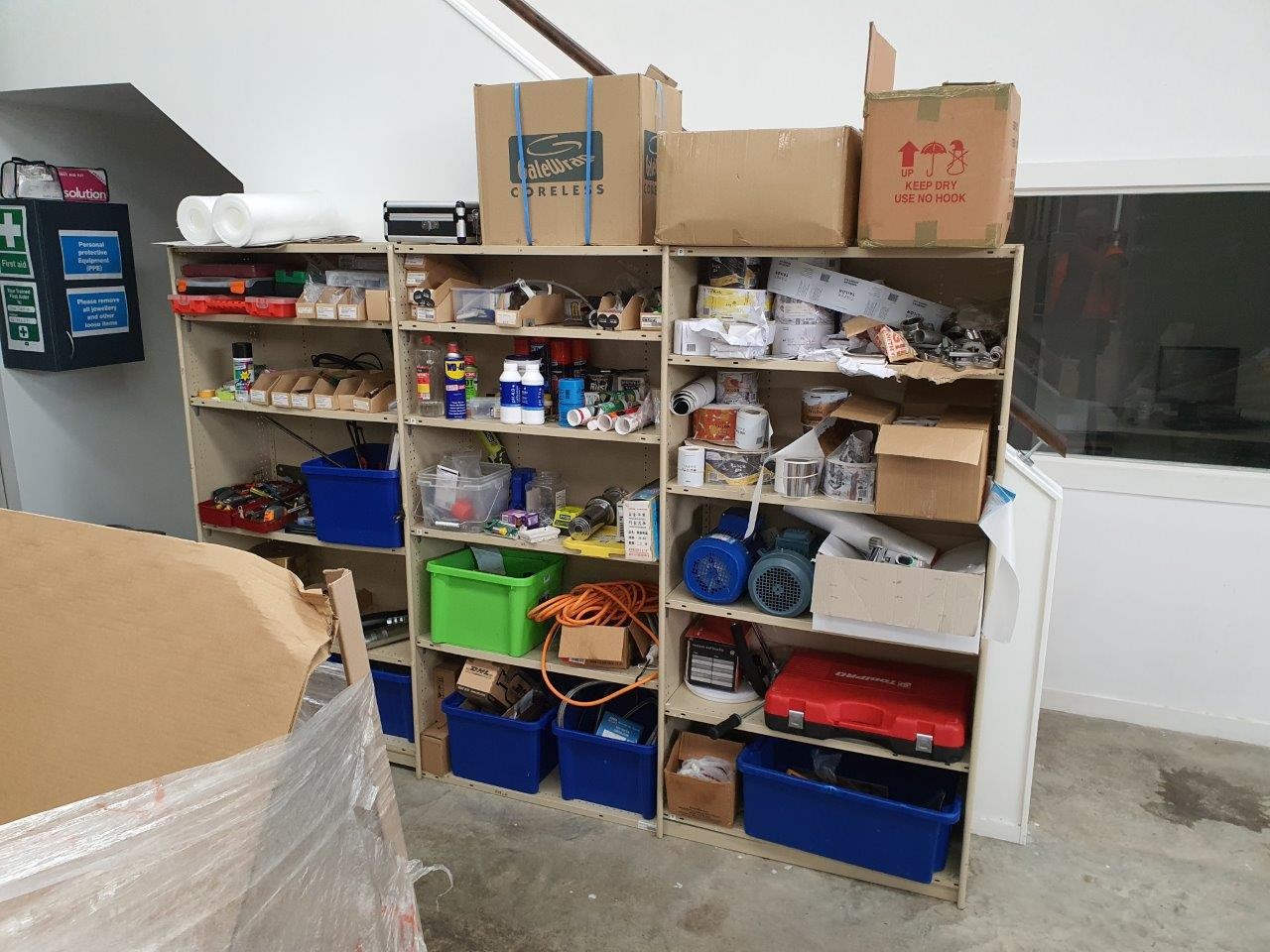

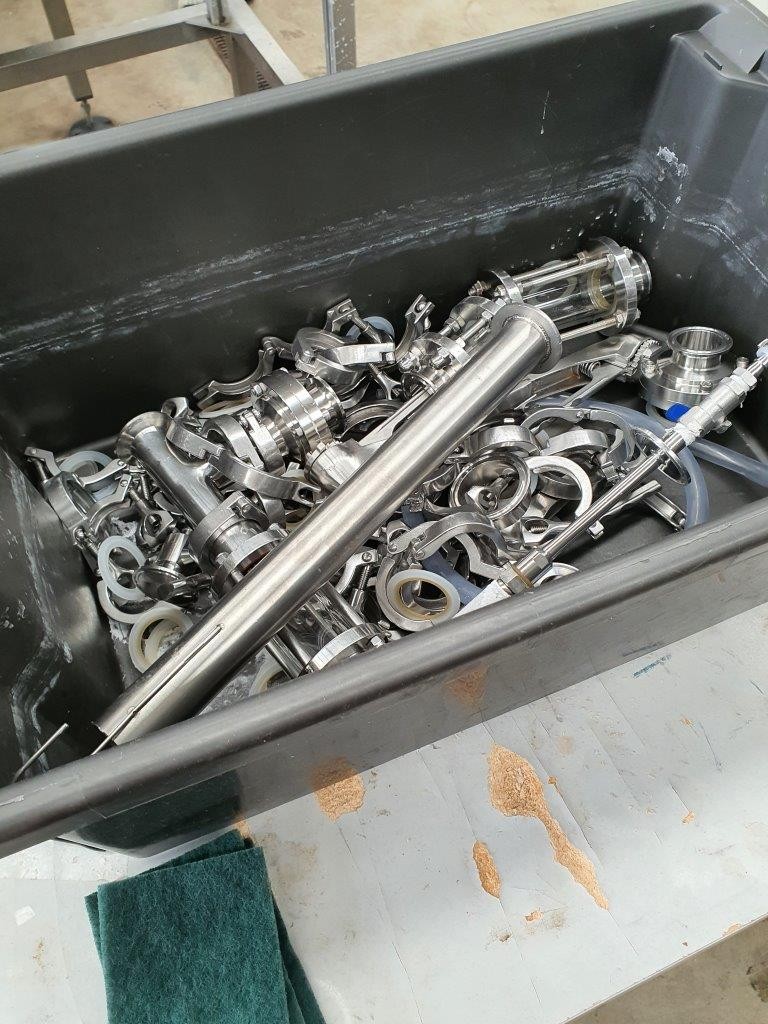

| Spares | Various |

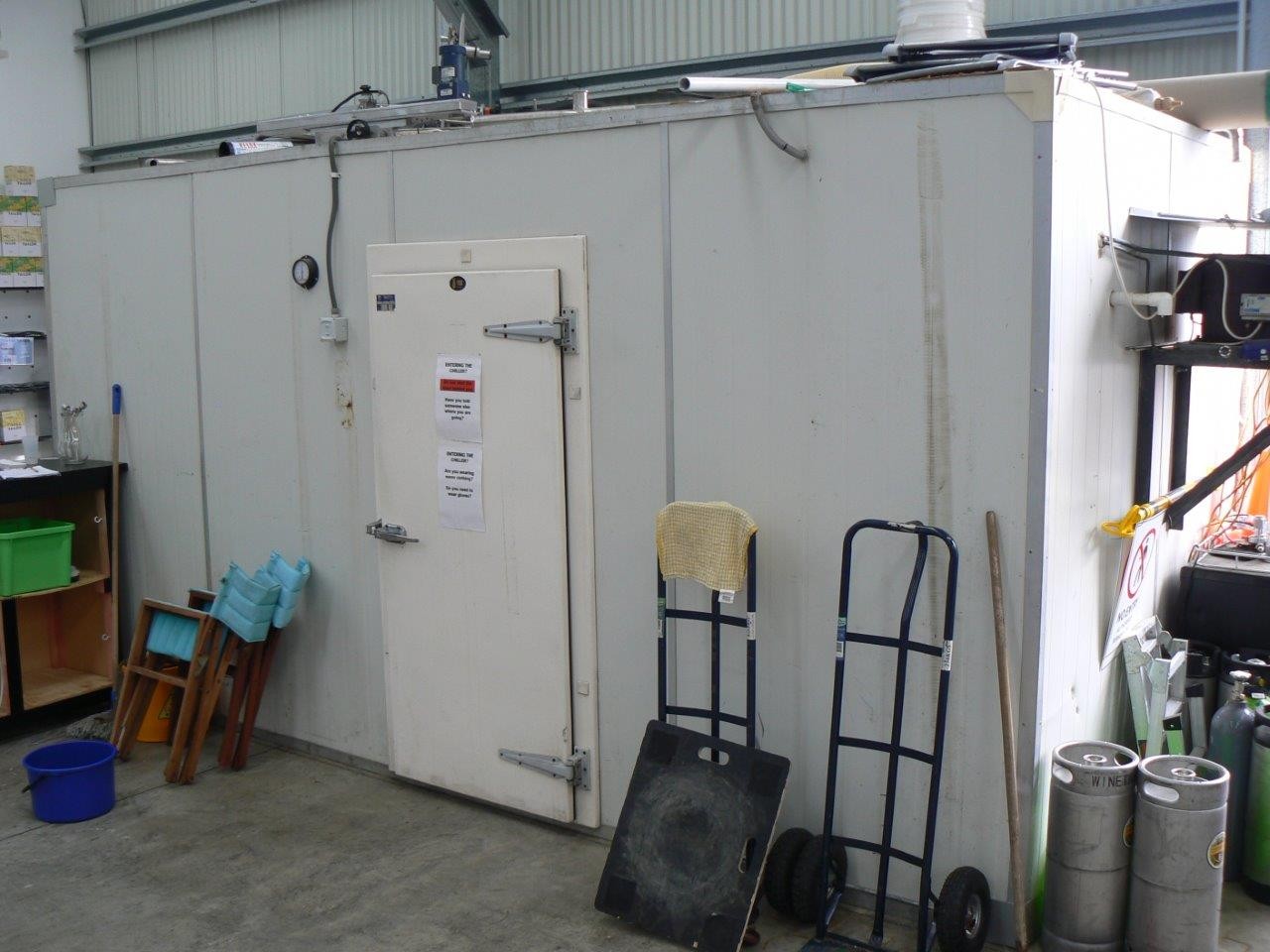

| Chiller | Chiller 2.3 x 4.68 internal with refrig unit & blowers |

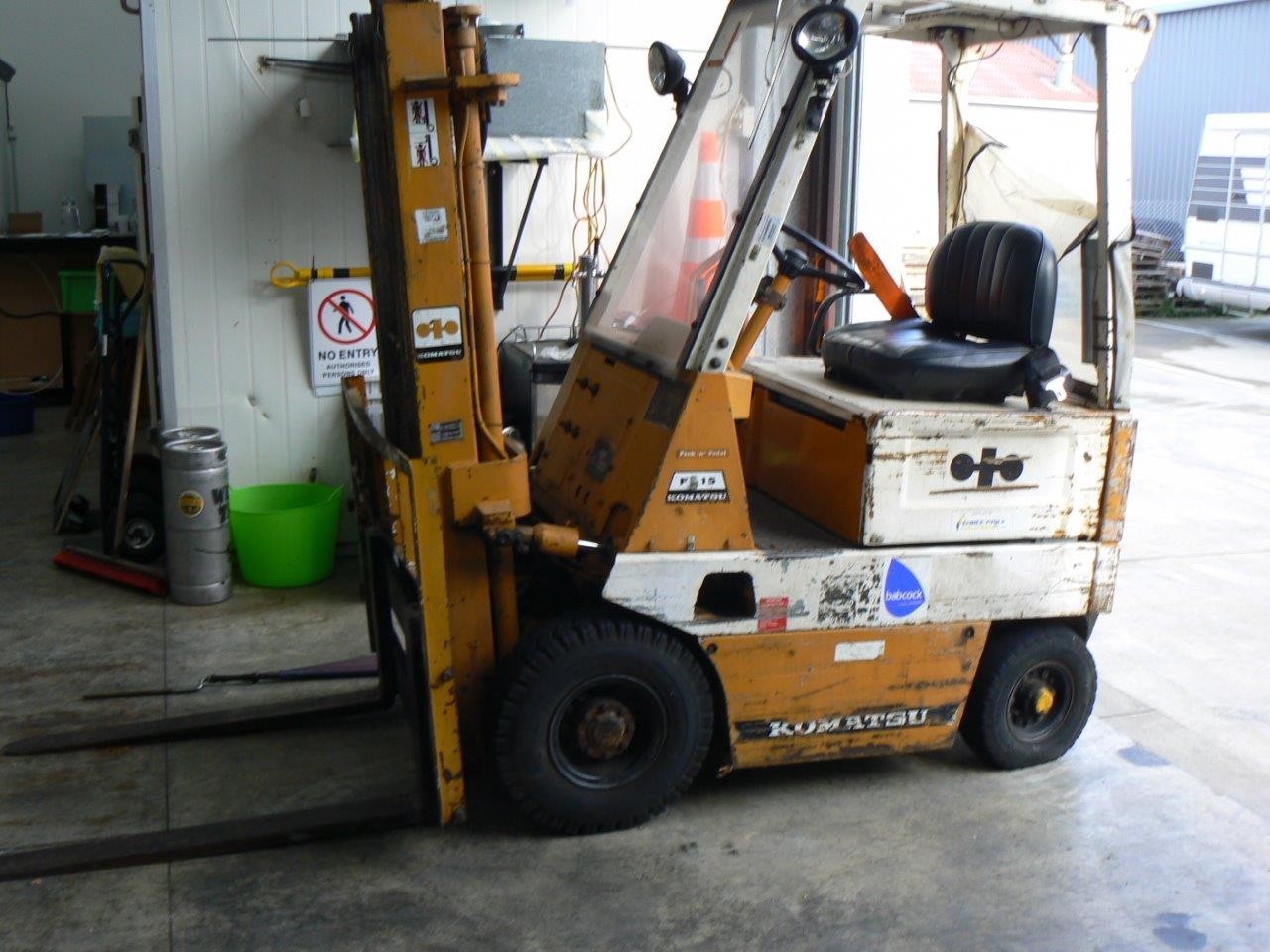

| Forklift | Komatsu electric 1.8T forklift |

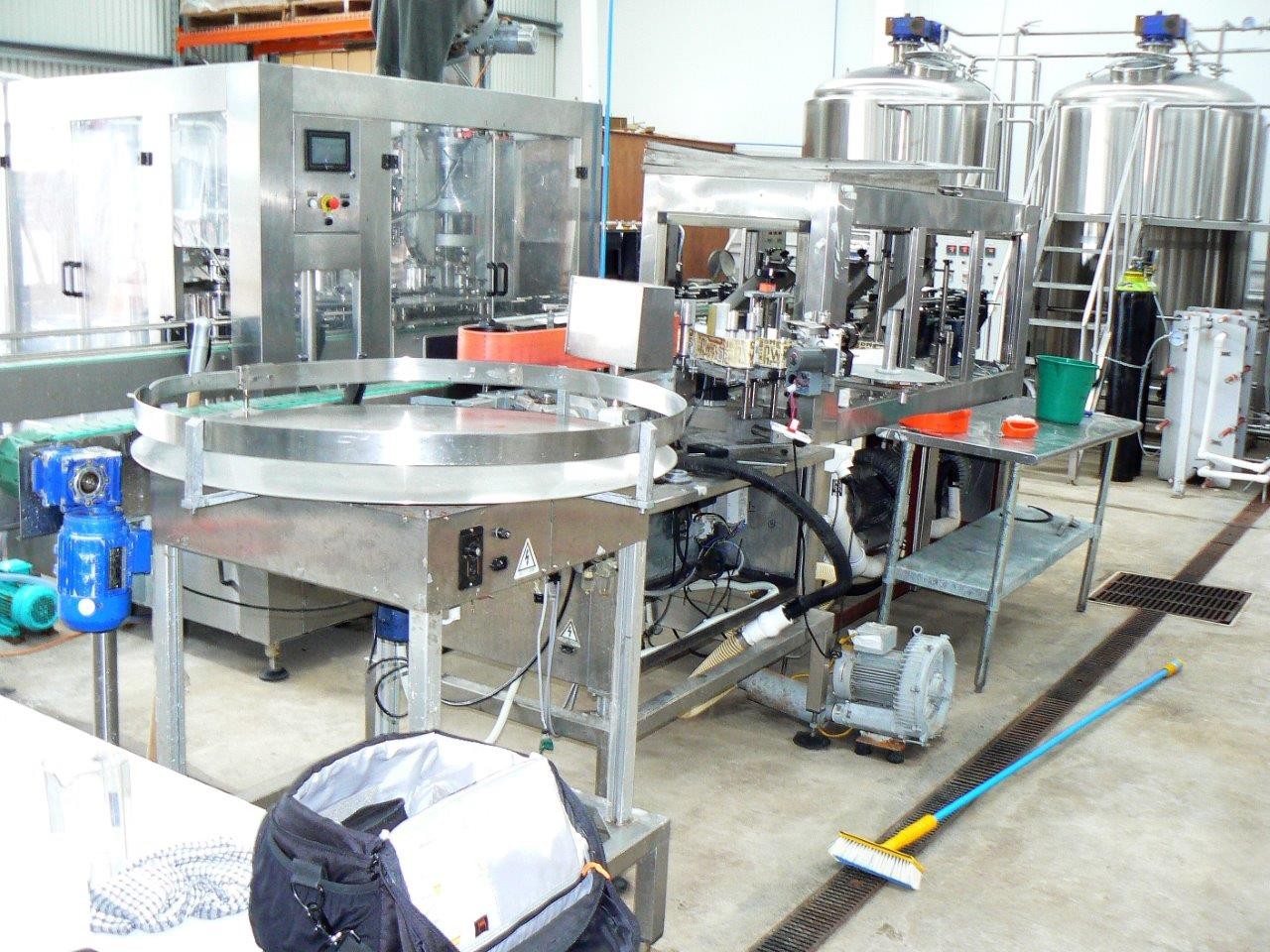

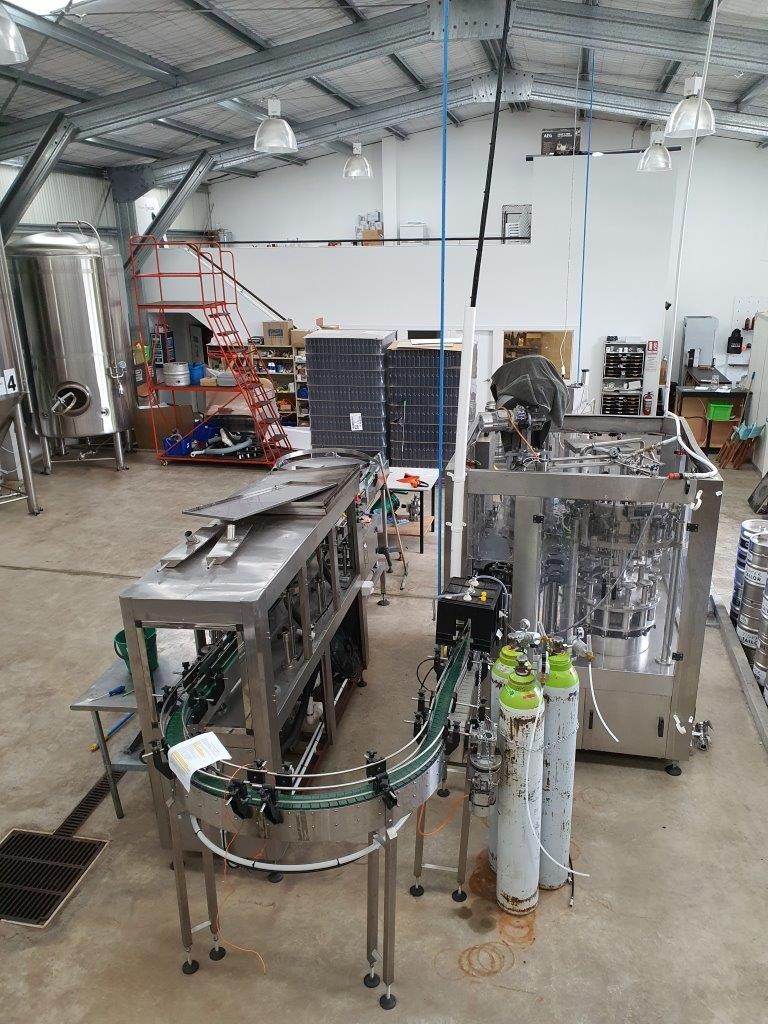

| Bottling | Rinser 14, Filler 12, Crowner 4, Dryer, Labeller, Sort table, Conveyors 2000bph 330ml & 500ml |
| Bottling | Air knives pair |
| Bottling | Body labels only |
| Bottling | New 3 head drying station |
| Bottling | New vacuum belt labeller |
| Bottling | Totally rebuilt and reconditioned |
| Bottling | bottling line footprint 6 x 4mtr |
| Office | Office furniture |
| Events | Two tap insulated pouring systems 4 |
| Events | Cellar door 8 tap pouring system with drip tray |
| Events | Cellar door 3kW IR heater |
| Events | Cellar door fridge |
| Events | Cellar door bar |
| Events | Portable bar |
| Events | Event chairs 50 |
| Events | Event tables 8 |
| Events | Gazebos 3 |

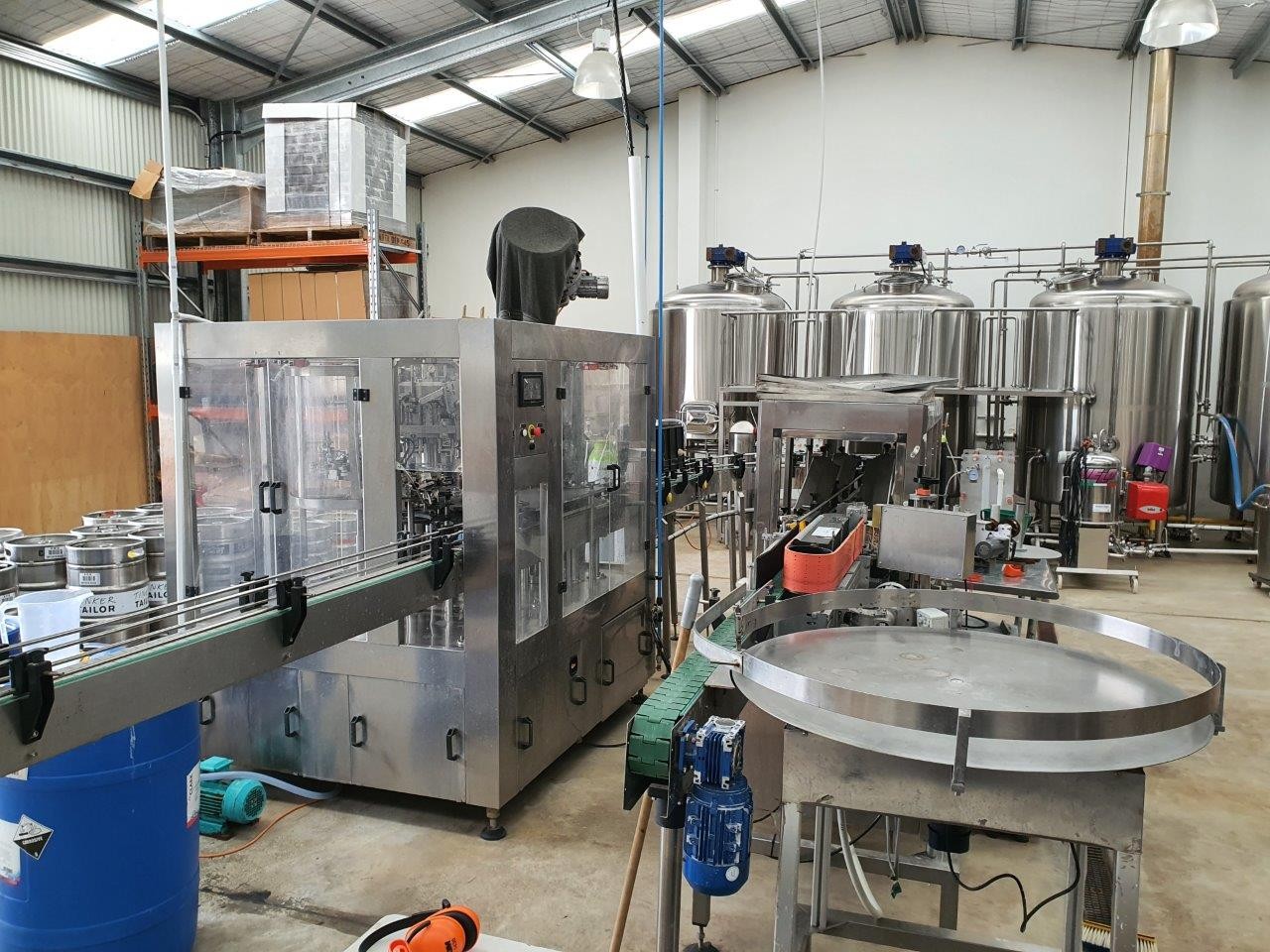

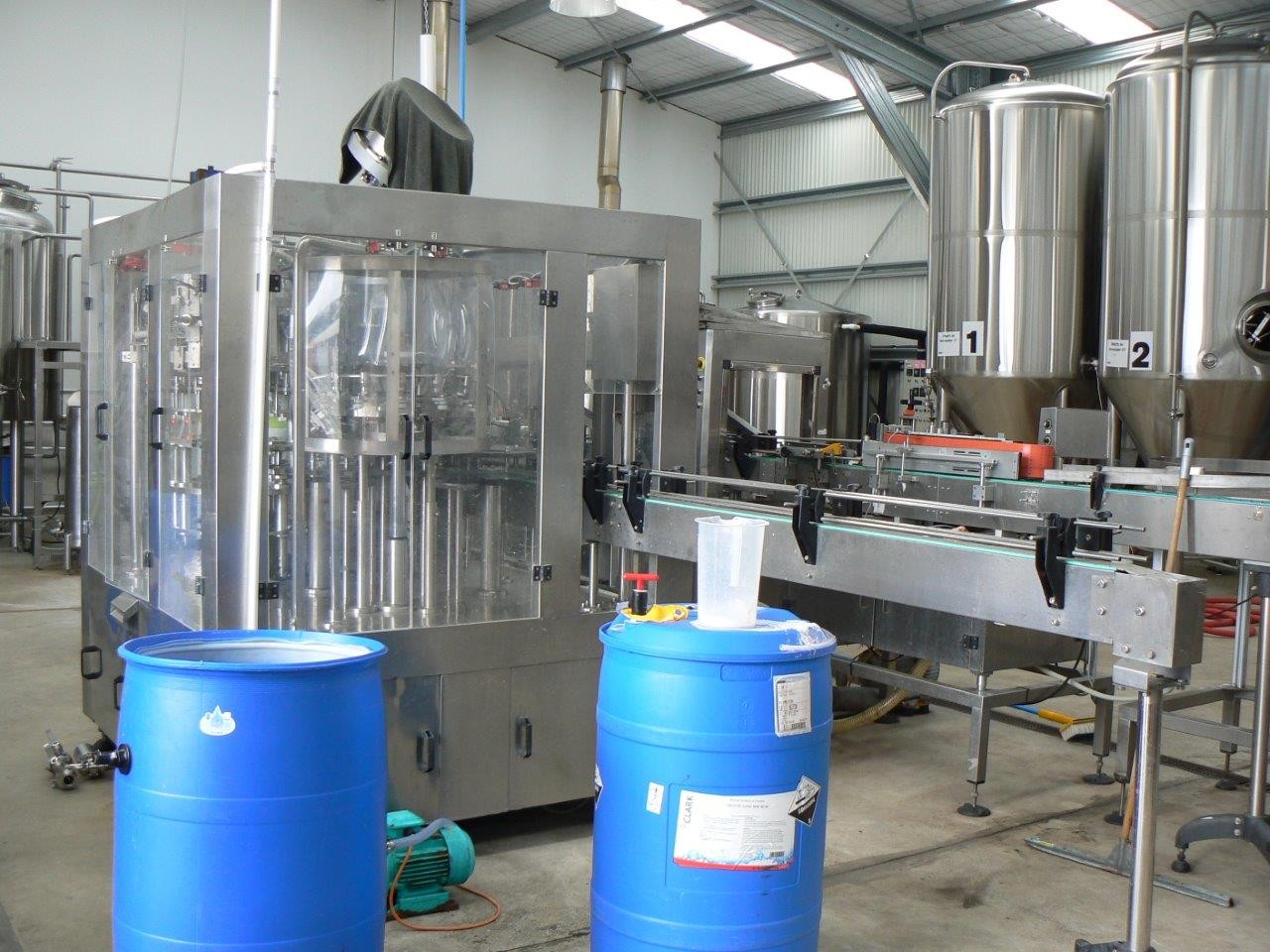

Bottling notes

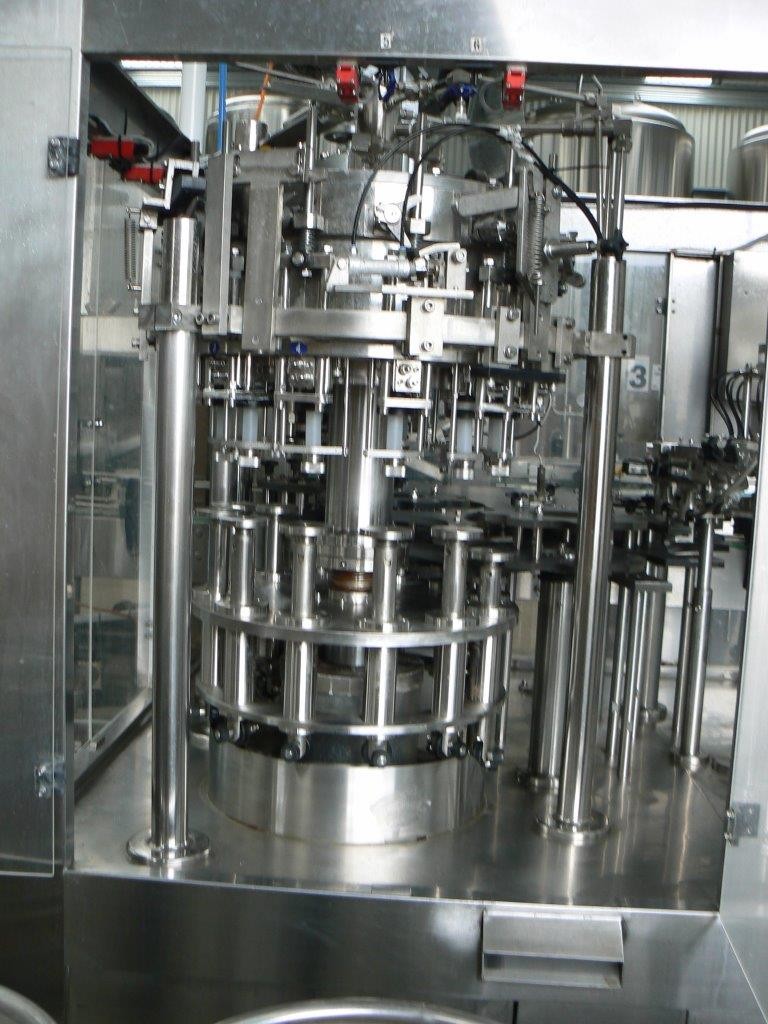

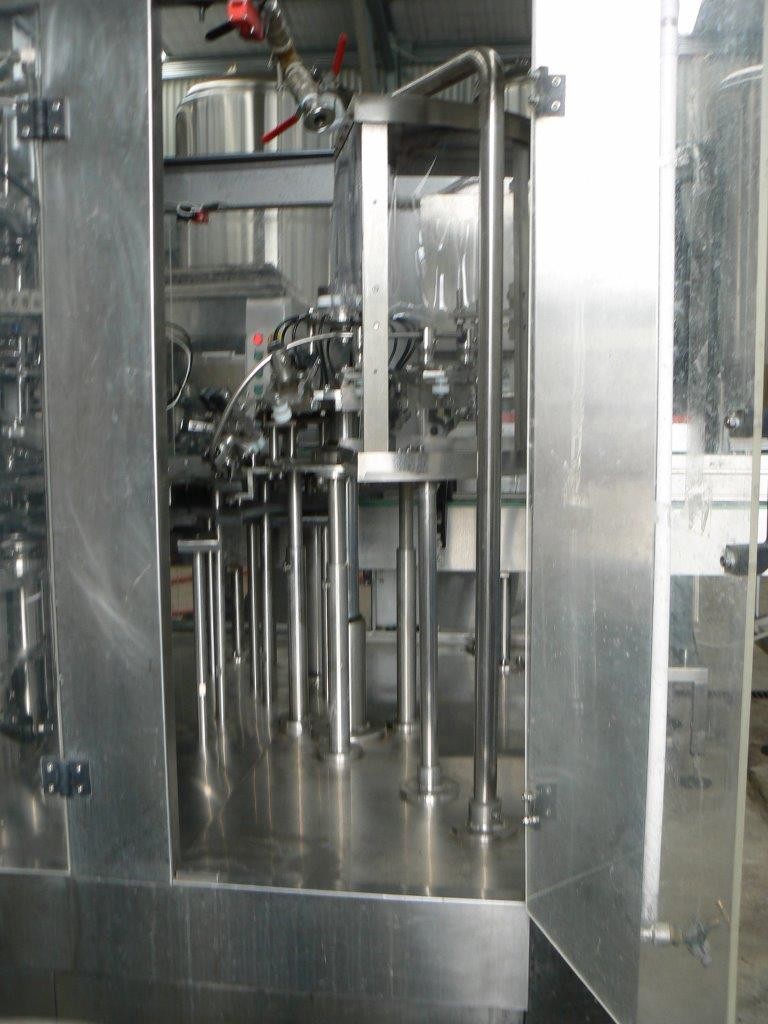

Bottling manufacturer Jinri Machinery China 2012, 14-12-4, set up for 330ml and change parts for 500ml
was originally located in Christchurch and installed by Sutton Engineering
Since purchase, the new owners have fully refurbished the machine
now capable of 2000bph.
The dryer was added and matched from another local brewery.
The vacuum belt labeller this installed 2020 using the label feeder from the original system
although it can also run as per the original setup without the belt but it wasn’t so good for the 500ml bottles.
